Removal

2ZR-FE EMISSION CONTROL: PCV VALVE: REMOVAL

REMOVAL

1. REMOVE INTAKE MANIFOLD
Removal
2. REMOVE VENTILATION VALVE SUB-ASSEMBLY

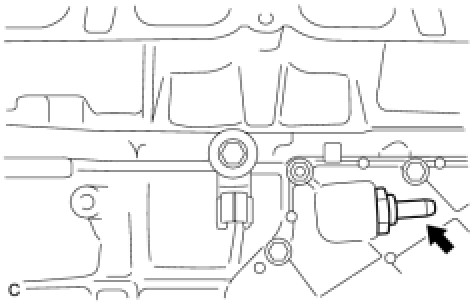

(a) Using a ball joint lock nut wrench (22 mm), remove the ventilation valve sub-assembly.
