Removal

2ZR-FE ENGINE CONTROL: ACCELERATOR PEDAL: REMOVAL

REMOVAL

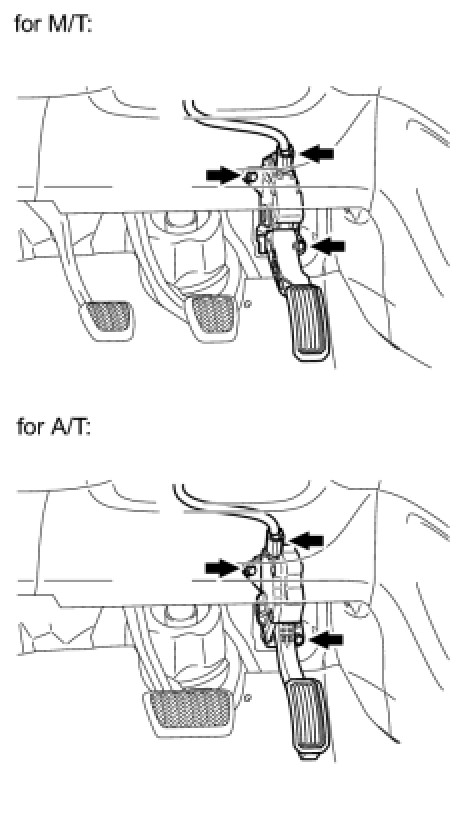

1. REMOVE ACCELERATOR PEDAL ASSEMBLY





(a) Disconnect the accelerator pedal position sensor connector.
(b) Remove the 2 bolts and accelerator pedal.
