Disassembly

2ZR-FE FUEL: FUEL PUMP: DISASSEMBLY

DISASSEMBLY

1. REMOVE FUEL SENDER GAUGE ASSEMBLY Removal
2. REMOVE FUEL PUMP





(a) Release the claw and disconnect the fuel pump filter hose.





(b) Remove the E-ring and separate the 2 claws, then remove the fuel pump sub-tank.
NOTE: Do not separate the tube indicated in the illustration Technician Safety Information.





(c) Disconnect the fuel pump harness connector.
NOTE: Do not damage the wire harness.

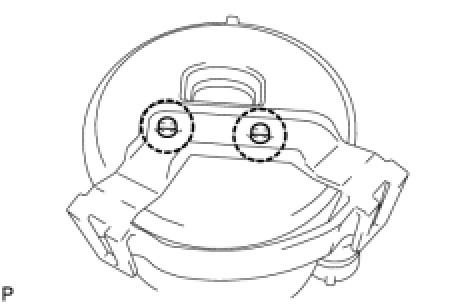

(d) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the No. 1 fuel suction support.

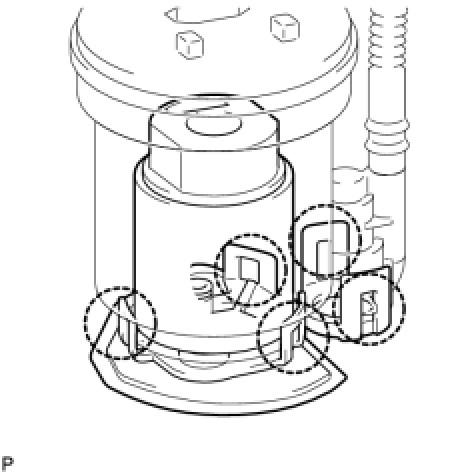

(e) Using a screwdriver with its tip wrapped in protective tape, disengage the 5 claws, and remove the fuel pump filter and fuel pump from the fuel filter.

NOTICE:
- Do not damage the fuel pump filter.
- Do not remove the suction filter.
- Do not use either the fuel pump or the suction filter if the suction filter is removed from the fuel pump.





(f) Disconnect the fuel pump harness connector.

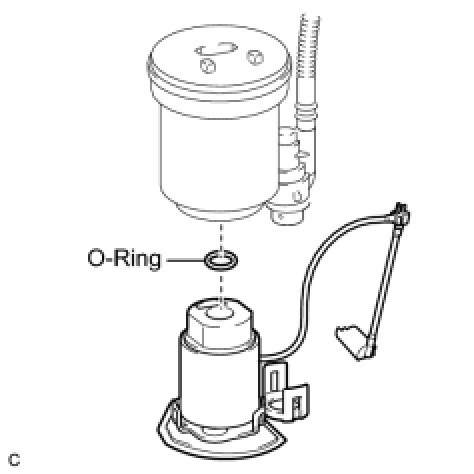

(g) Remove the O-ring from the fuel pump.
