Crankshaft Position Sensor: Testing and Inspection

2ZR-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: INSPECTION

INSPECTION

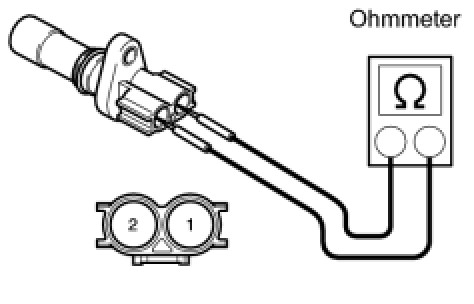

1. INSPECT CRANK POSITION SENSOR

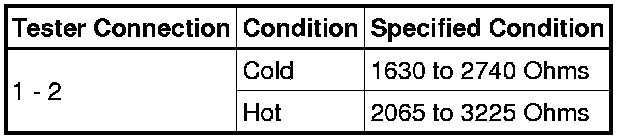

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





HINT: In the table above, the terms Cold and Hot refer to the temperature of the coils. Cold means approximately -10 to 50°C (14 to 122°F). Hot means approximately 50 to 100°C (122 to 212°F).
If the resistance is not as specified, replace the crank position sensor.
