Ignition System: Description and Operation

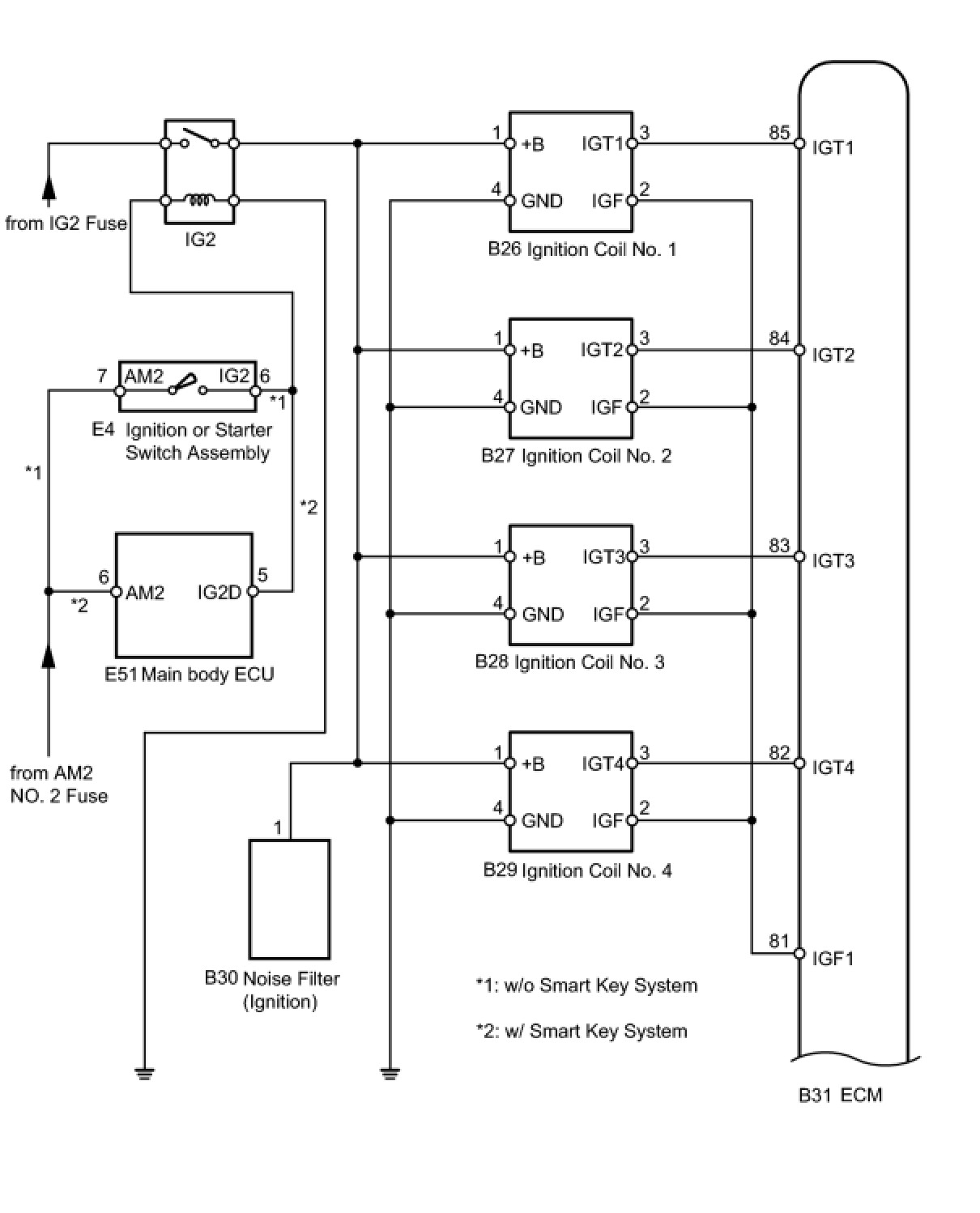

2ZR-FE ENGINE CONTROL: IGNITION SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
