2ZR-FE ENGINE CONTROL: IGNITION COIL AND SPARK PLUG: INSTALLATION

INSTALLATION

1. INSTALL SPARK PLUG





(a) Using a 14 mm spark plug wrench, install the 4 spark plugs.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)

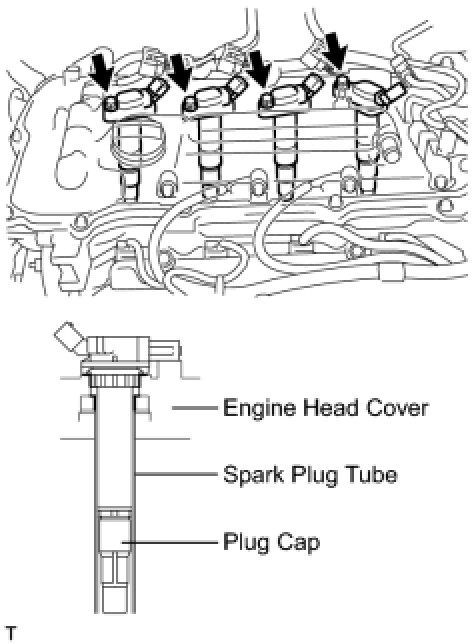

2. INSTALL IGNITION COIL ASSEMBLY





(a) Install the 4 ignition coils with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
NOTE: When installing each ignition coil, do not damage the plug cap on the engine head cover opening or the upper edge of the spark plug tube.

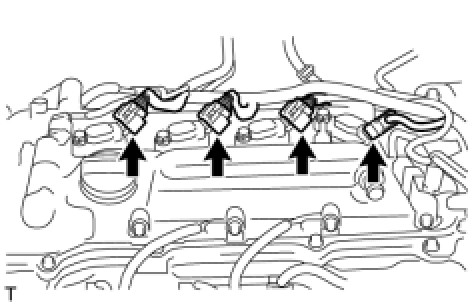

(b) Connect the 4 ignition coil connectors.
3. INSTALL NO. 2 CYLINDER HEAD COVER Installation
