Removal

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION ECU: REMOVAL

REMOVAL

1. PRECAUTION
CAUTION: Be sure to read Precaution thoroughly before servicing Service Precautions.
NOTE: When replacing the occupant classification ECU, perform registration Registration.

2. REMOVE FRONT SEAT ASSEMBLY RH
(a) Remove the front seat assembly RH.
HINT: Use the same procedure for the RH side and the LH side Removal.

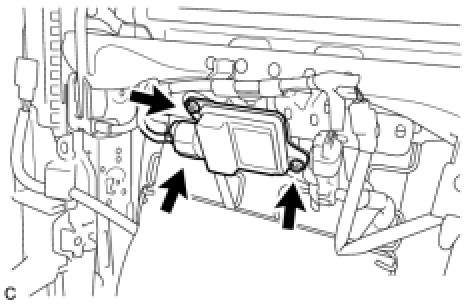

3. REMOVE OCCUPANT CLASSIFICATION ECU





(a) Disconnect the connector from the occupant classification ECU.
(b) Remove the 2 screws and occupant classification ECU.
