Pinout Values and Diagnostic Parameters

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU

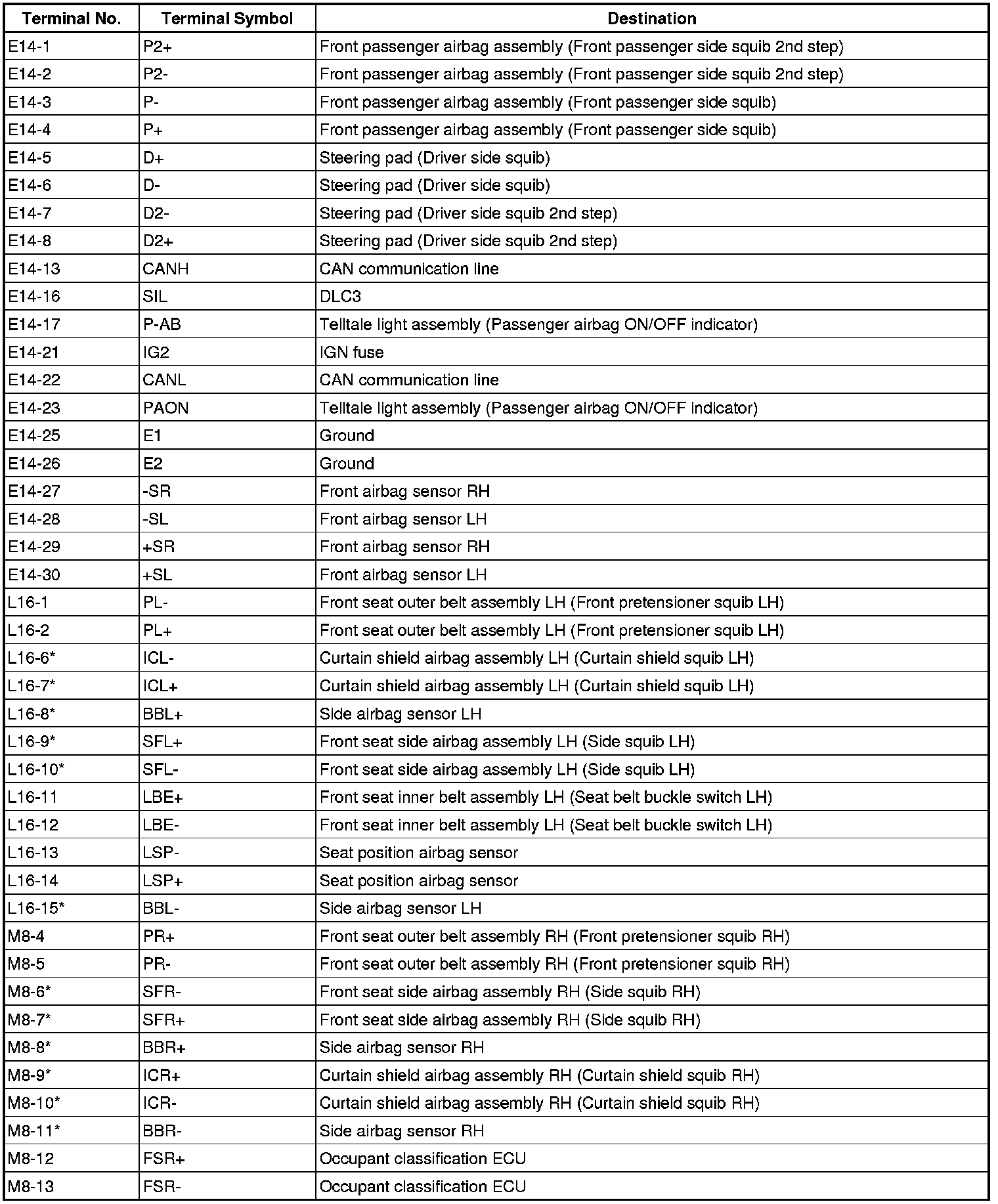

TERMINALS OF ECU

1. CENTER AIRBAG SENSOR ASSEMBLY









HINT: *: w/ Front seat side airbags and curtain shield airbags
