Removal

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: REMOVAL

REMOVAL

1. REMOVE SPARE WHEEL COVER Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
4. REMOVE REAR SEATBACK ASSEMBLY LH Removal
5. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET

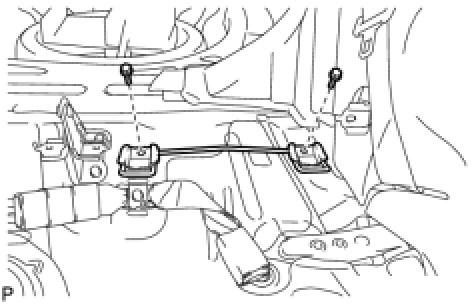

(a) Remove the 2 bolts and child restraint seat anchor bracket.
