NO. 1 CHAIN TENSIONER ASSEMBLY





Install a new gasket, bracket and No. 1 chain tensioner with the 2 nuts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

CRANKSHAFT PULLEY

Torque 190 Nm (1940 kgf-cm, 140 ft-lbf)


TIMING CHAIN COVER

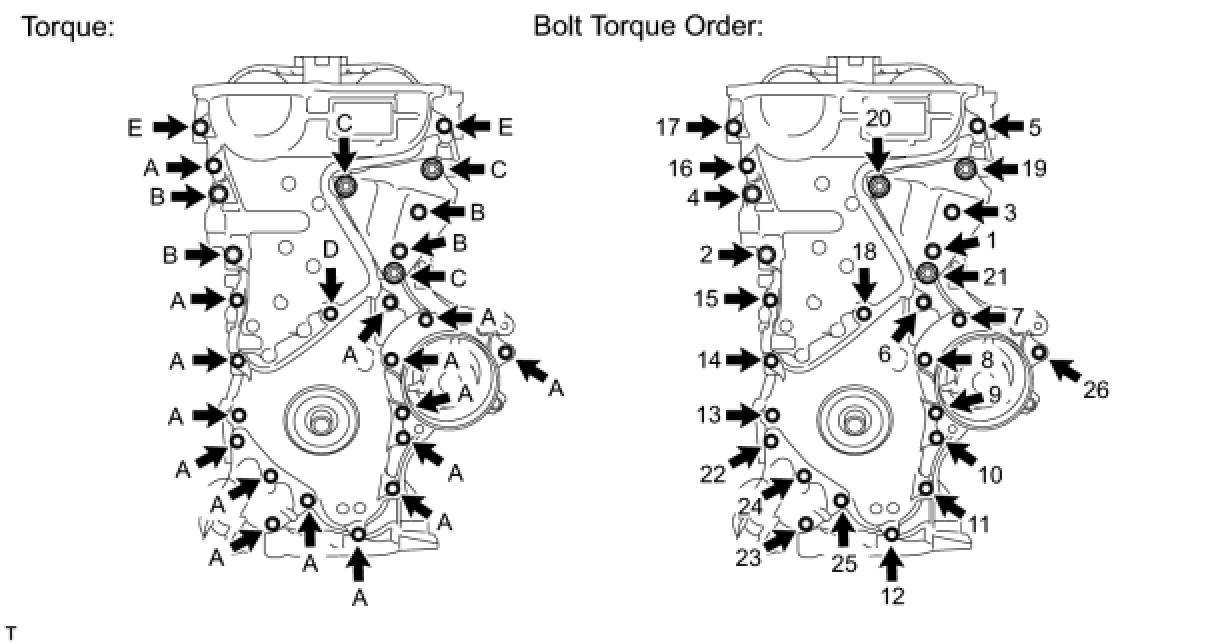

Fully tighten the timing chain cover sub-assembly with the 26 bolts as shown in the illustration.





Bolt A, E
Torque 26 Nm (260 kgf-cm, 19 ft-lbf)

Bolt B, C
Torque 51 Nm (520 kgf-cm, 37 ft-lbf)

Bolt D
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
