Charging System: Description and Operation

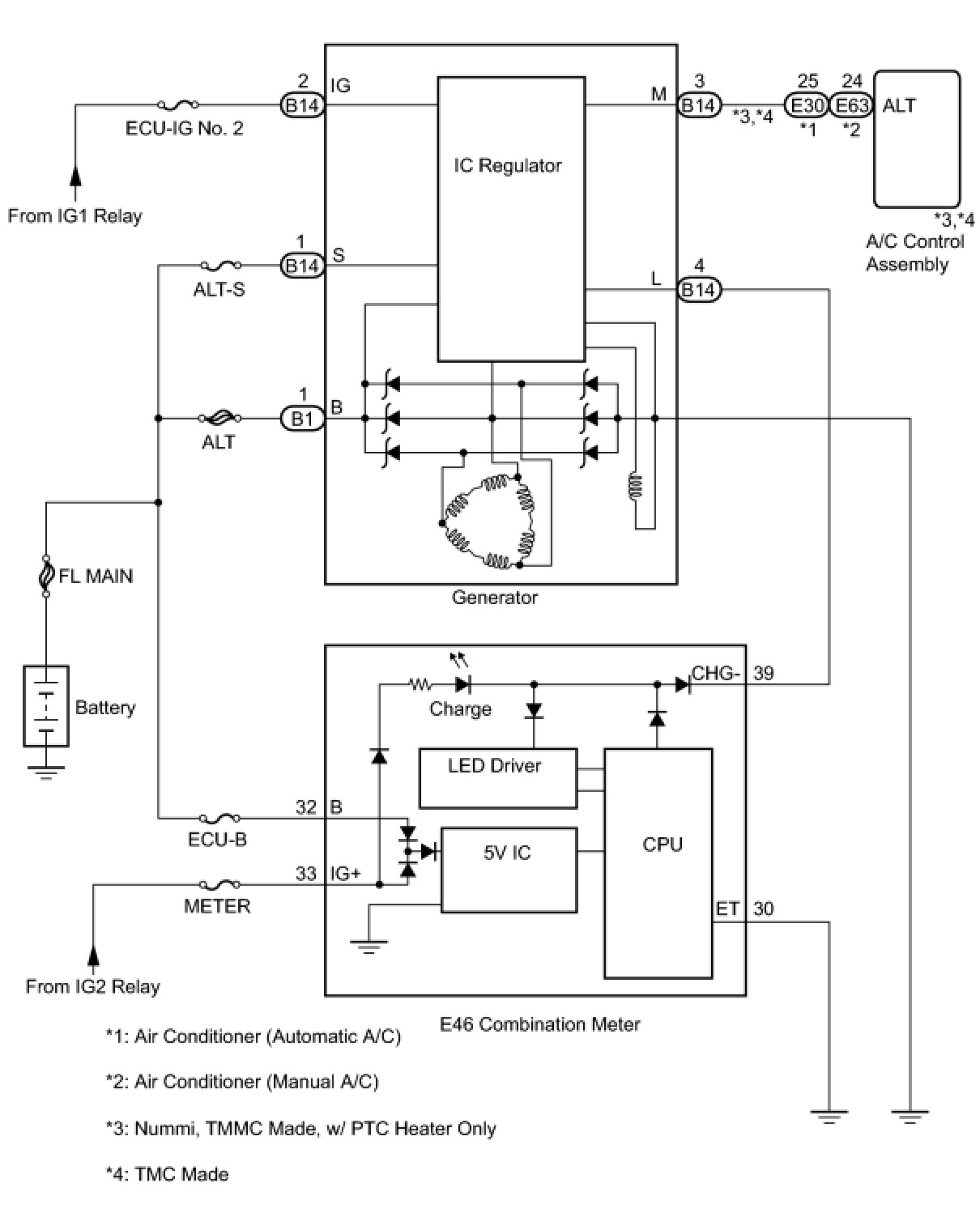

2ZR-FE BATTERY / CHARGING: CHARGING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
