Starting System: Description and Operation








2ZR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM

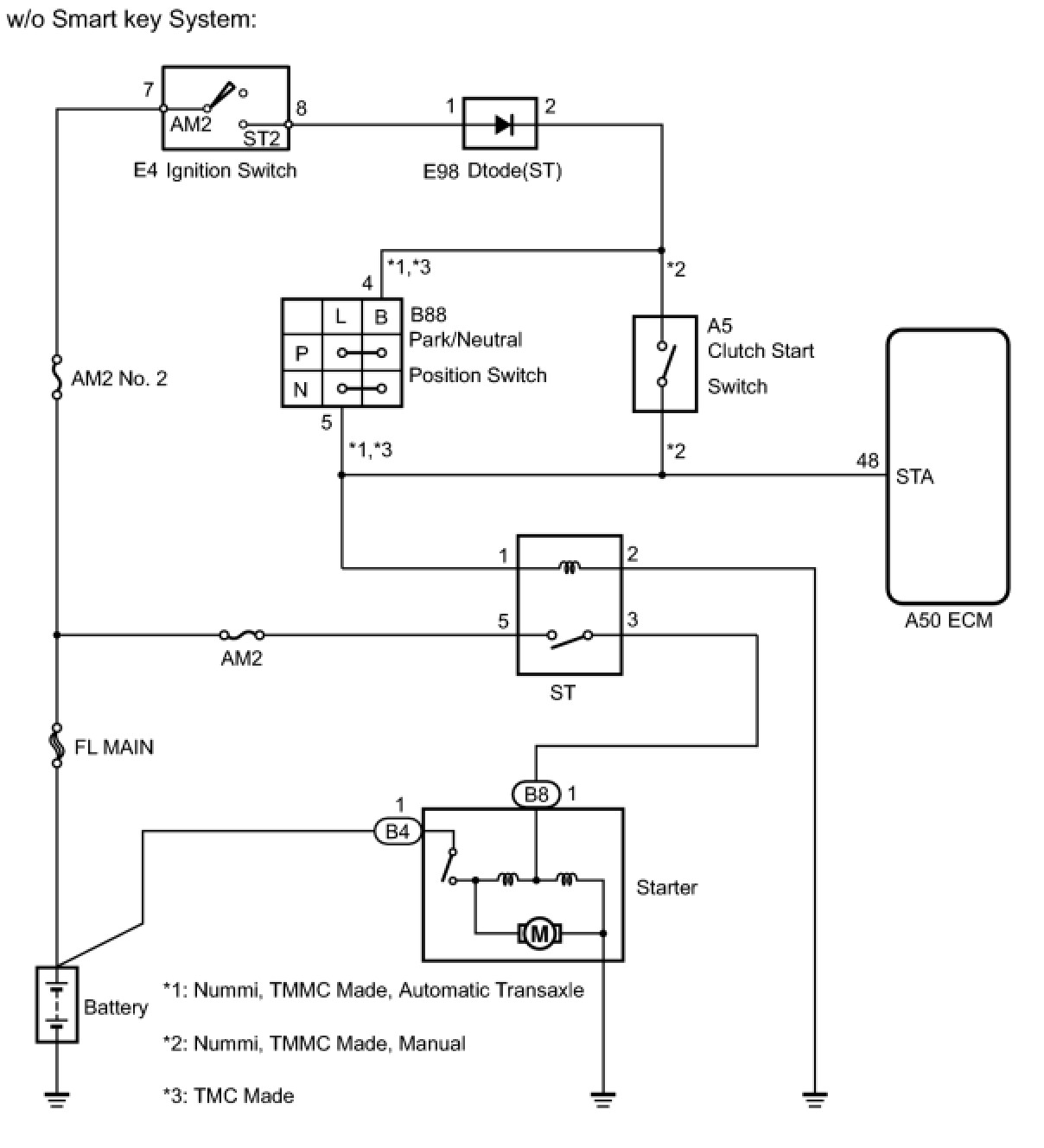

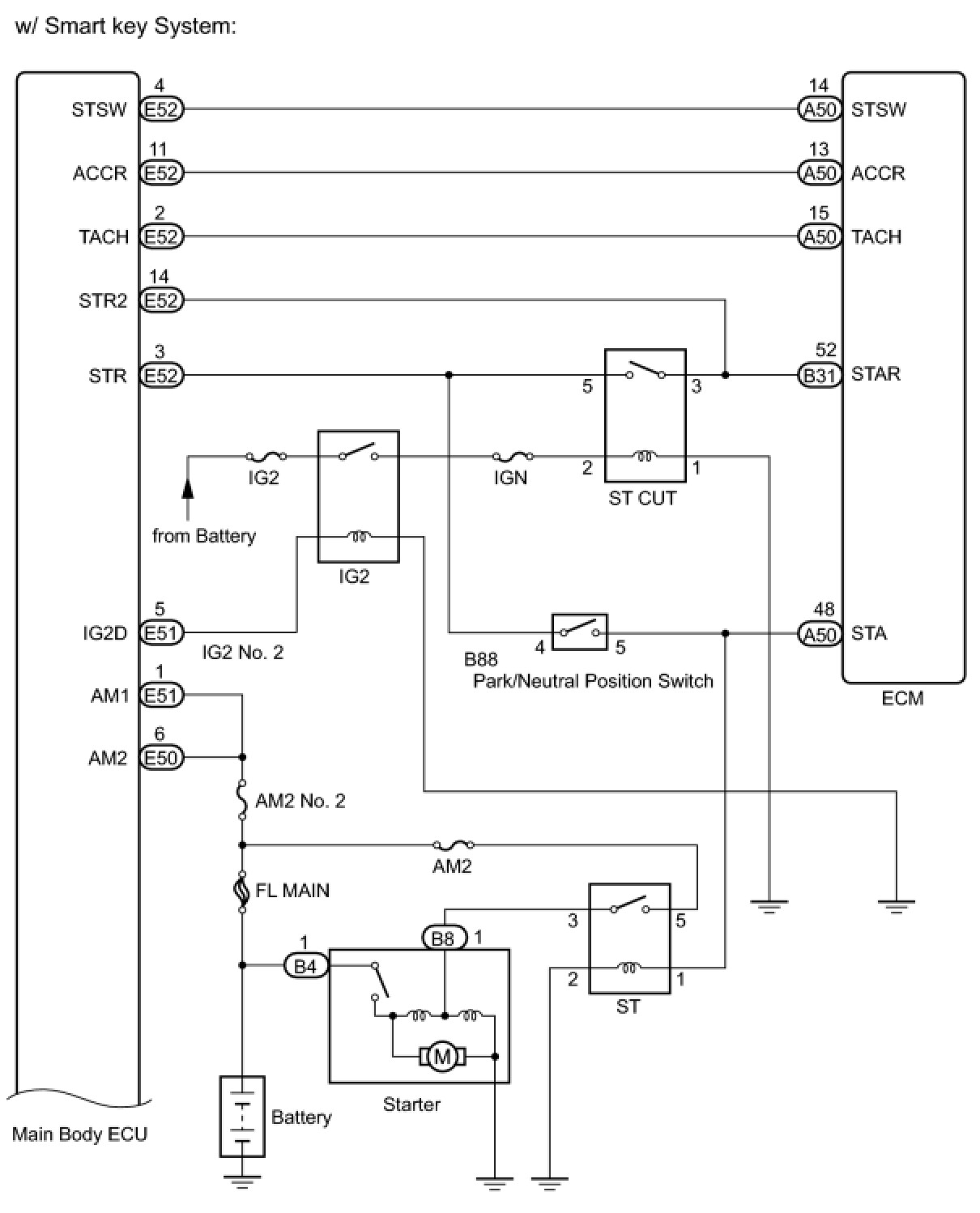

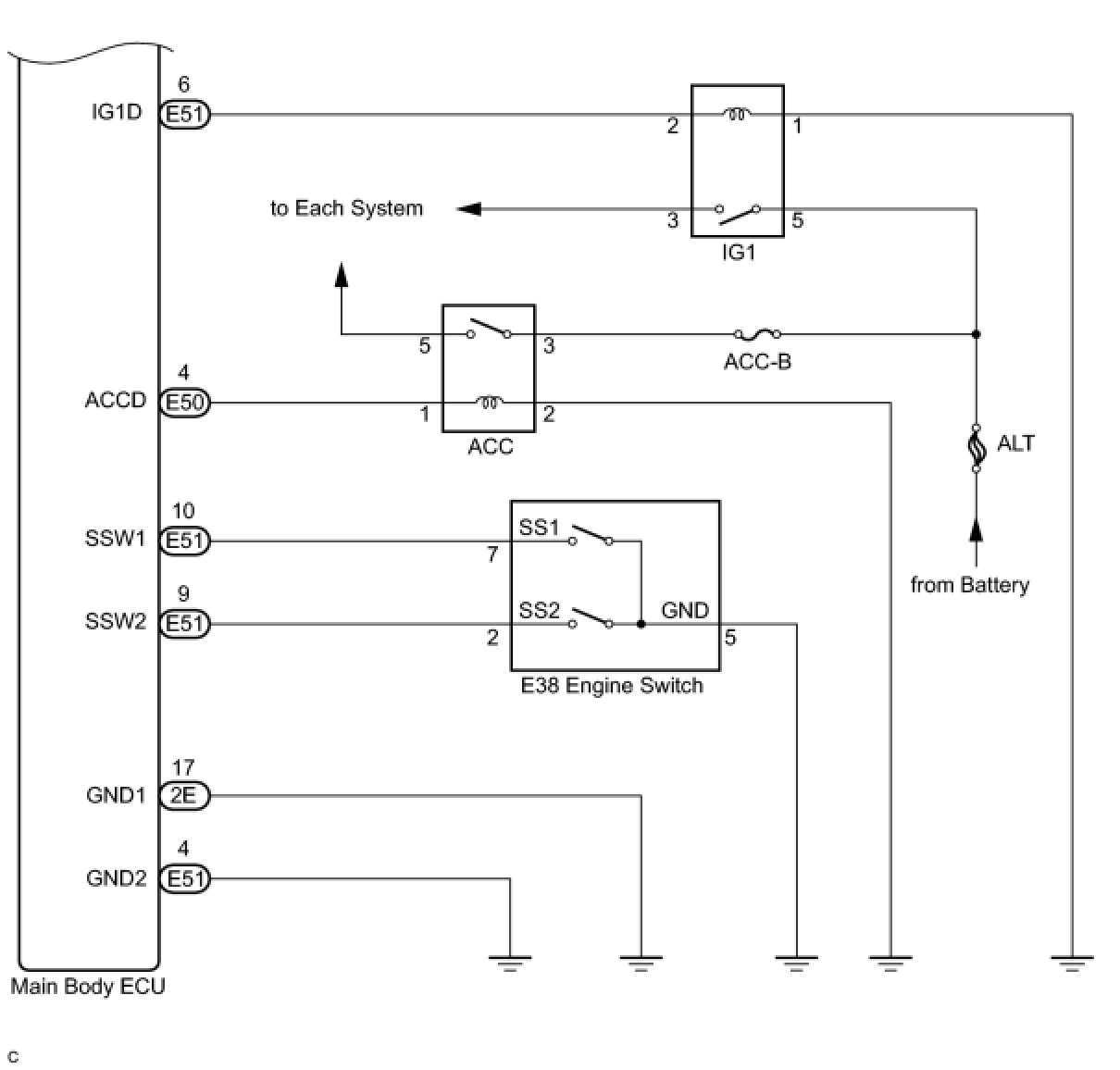

SYSTEM DIAGRAM
