Installation

U341E AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

INSTALLATION

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Install the park/neutral position switch assembly to the automatic transaxle.

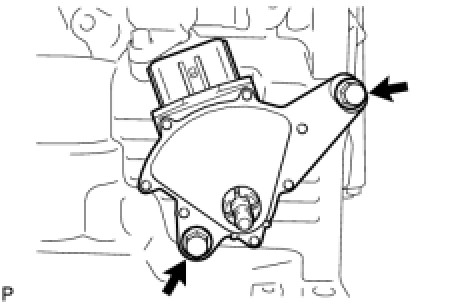

(b) Temporarily install the 2 bolts.

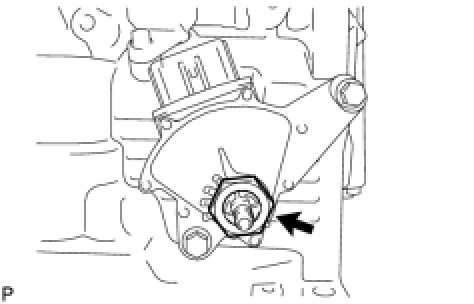

(c) Replace the lock plate with a new one and tighten the manual valve shaft nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)
(d) Temporarily install the control shaft lever.

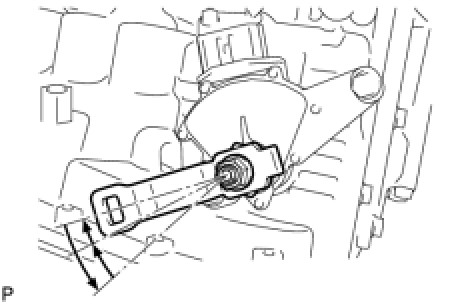

(e) Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
(f) Remove the control shaft lever.

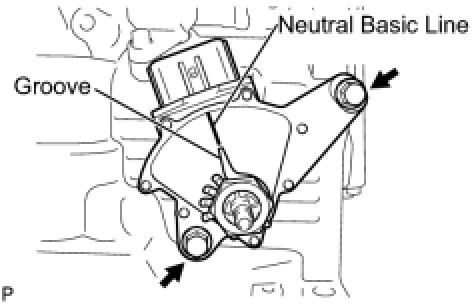

(g) Align the groove with the neutral basic line.
(h) Hold the switch in place and tighten the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

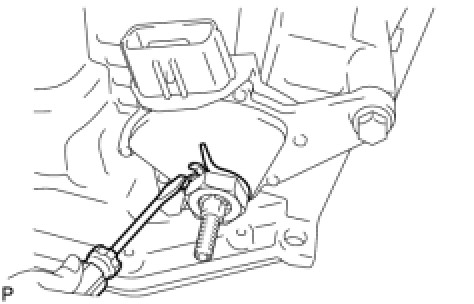

(i) Using a screwdriver, stake the nut with the lock plate.

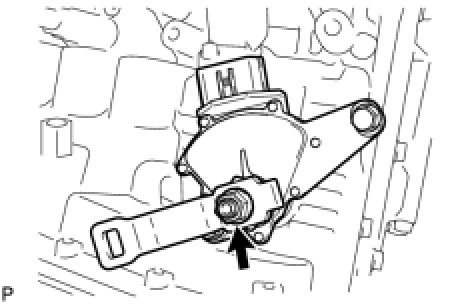

(j) Install the control shaft lever with the nut and washer.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)
(k) Connect the connector to the park/neutral position switch assembly.
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

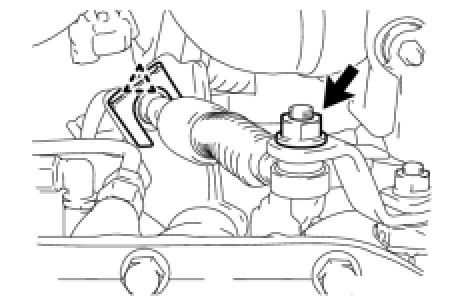

(a) Install the transmission control cable assembly to the control shaft lever with the nut.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
(b) Install the transmission control cable assembly to the bracket with a new clip.
3. ADJUST SHIFT LEVER POSITION Adjustments
4. INSPECT SHIFT LEVER POSITION On-Vehicle Inspection
5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY On-Vehicle Inspection
6. INSTALL ENGINE UNDER COVER LH
