EPS (TMC Made)

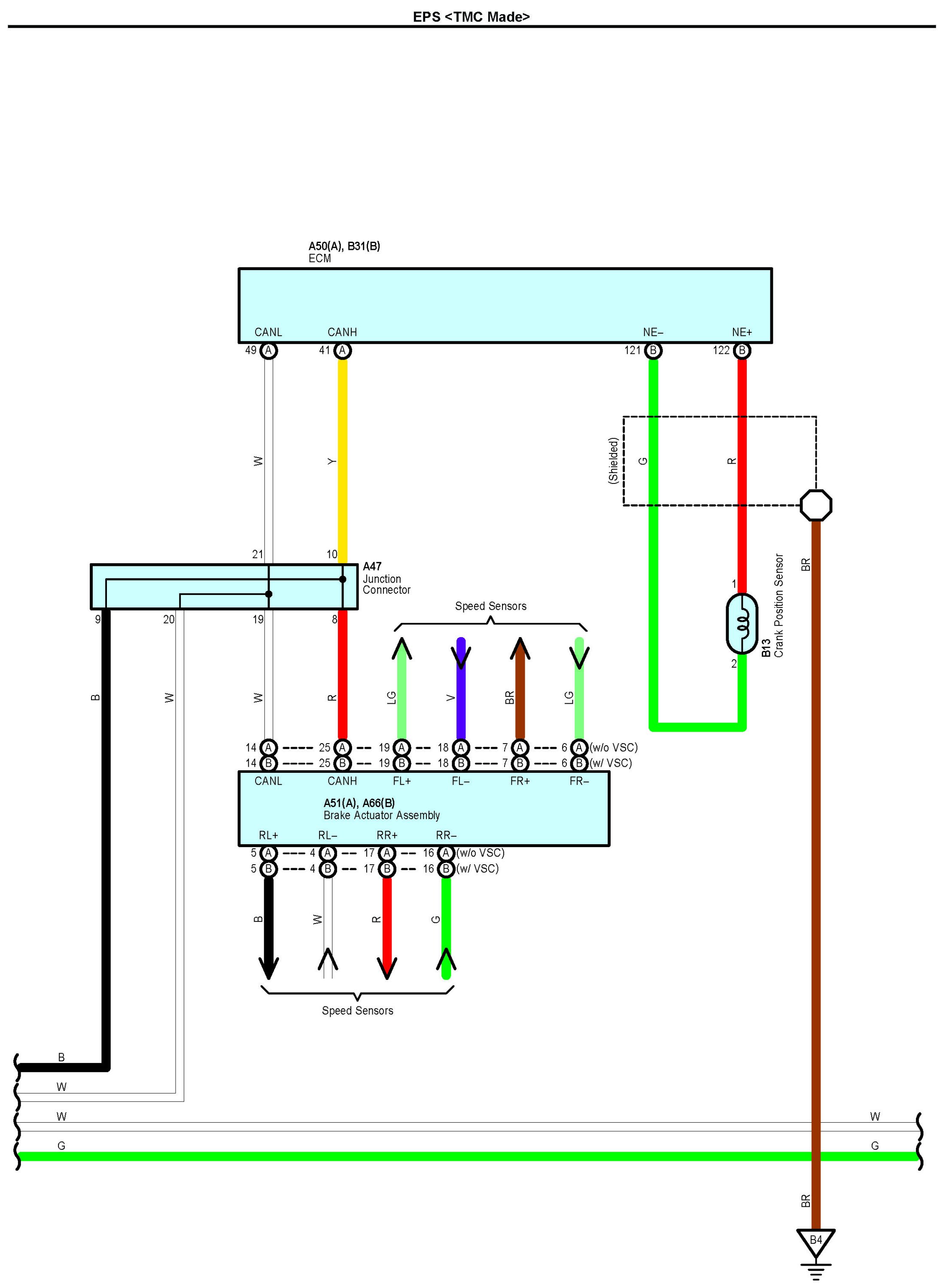

EPS <TMC Made> Part 1:

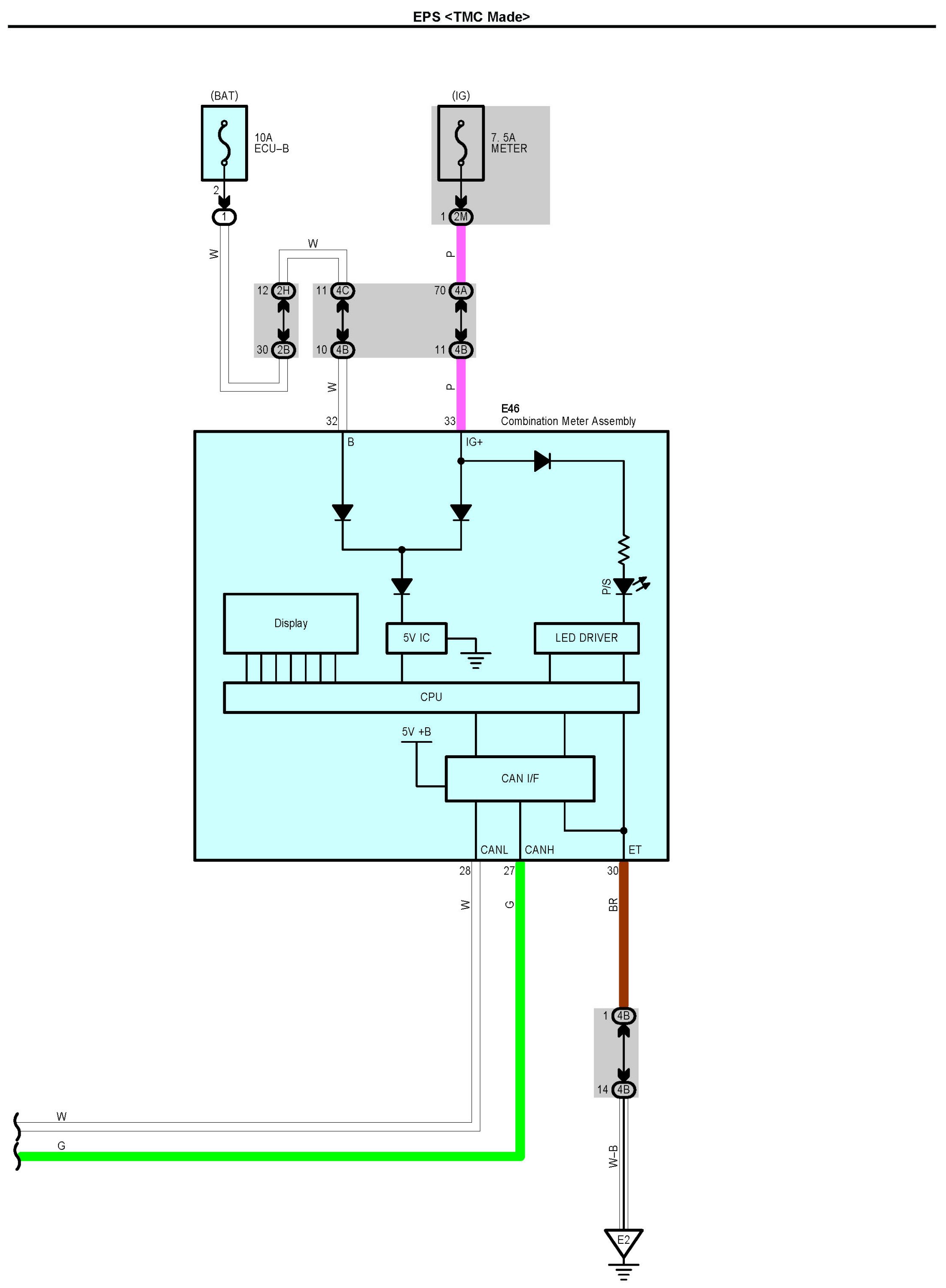

EPS <TMC Made> Part 2:

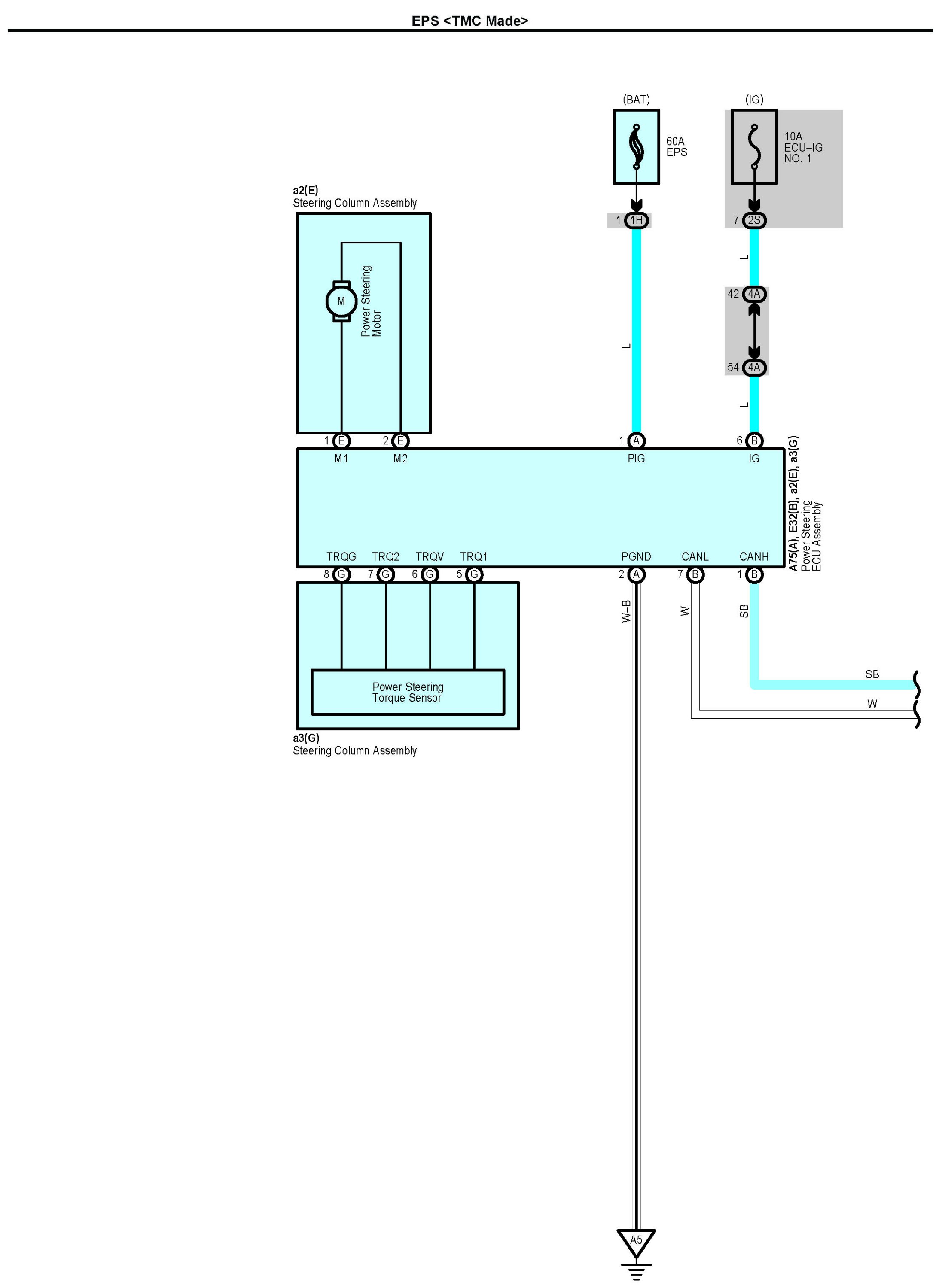

EPS <TMC Made> Part 3:

EPS <TMC Made> Part 4:

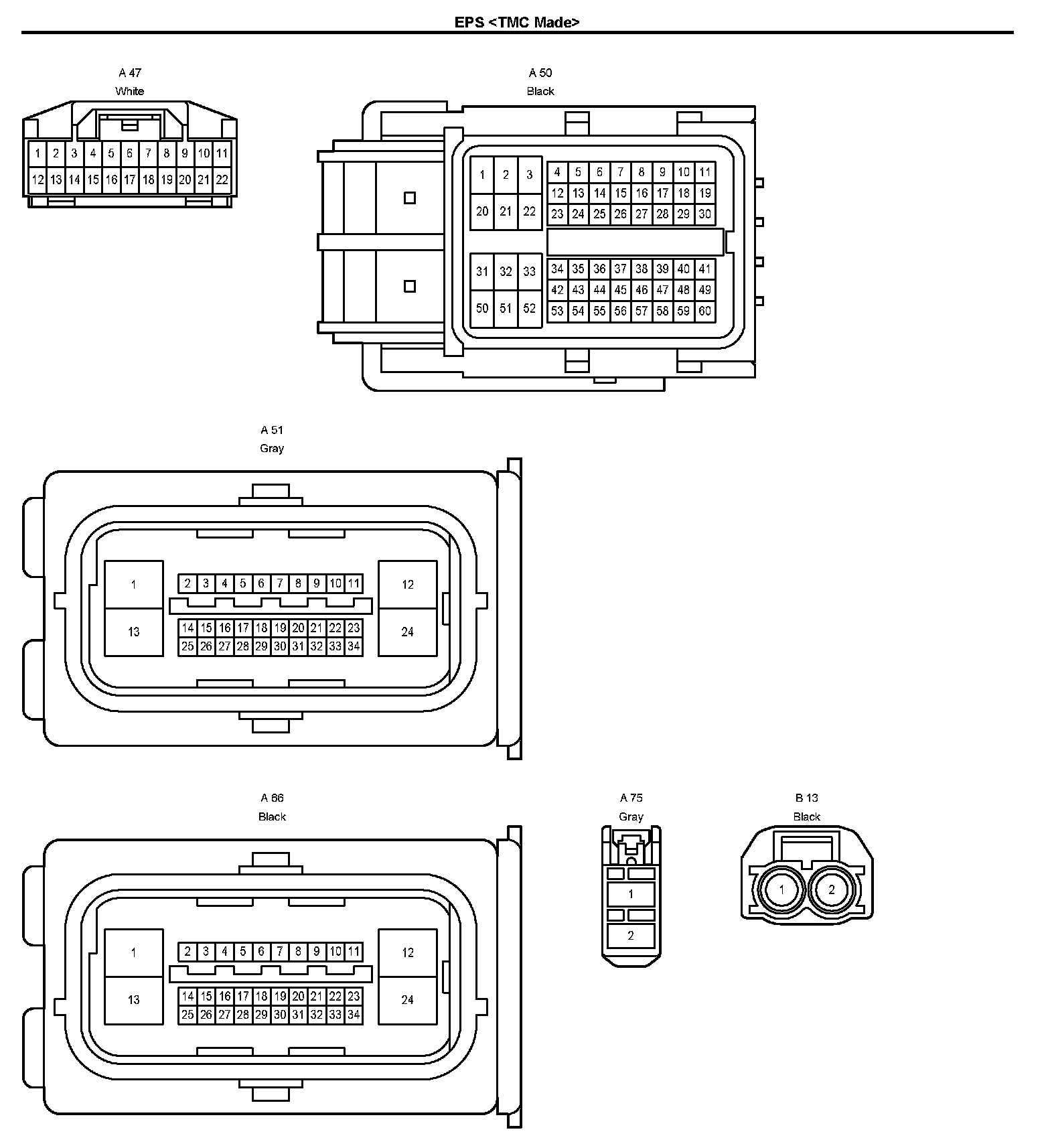

Connectors Part 1:

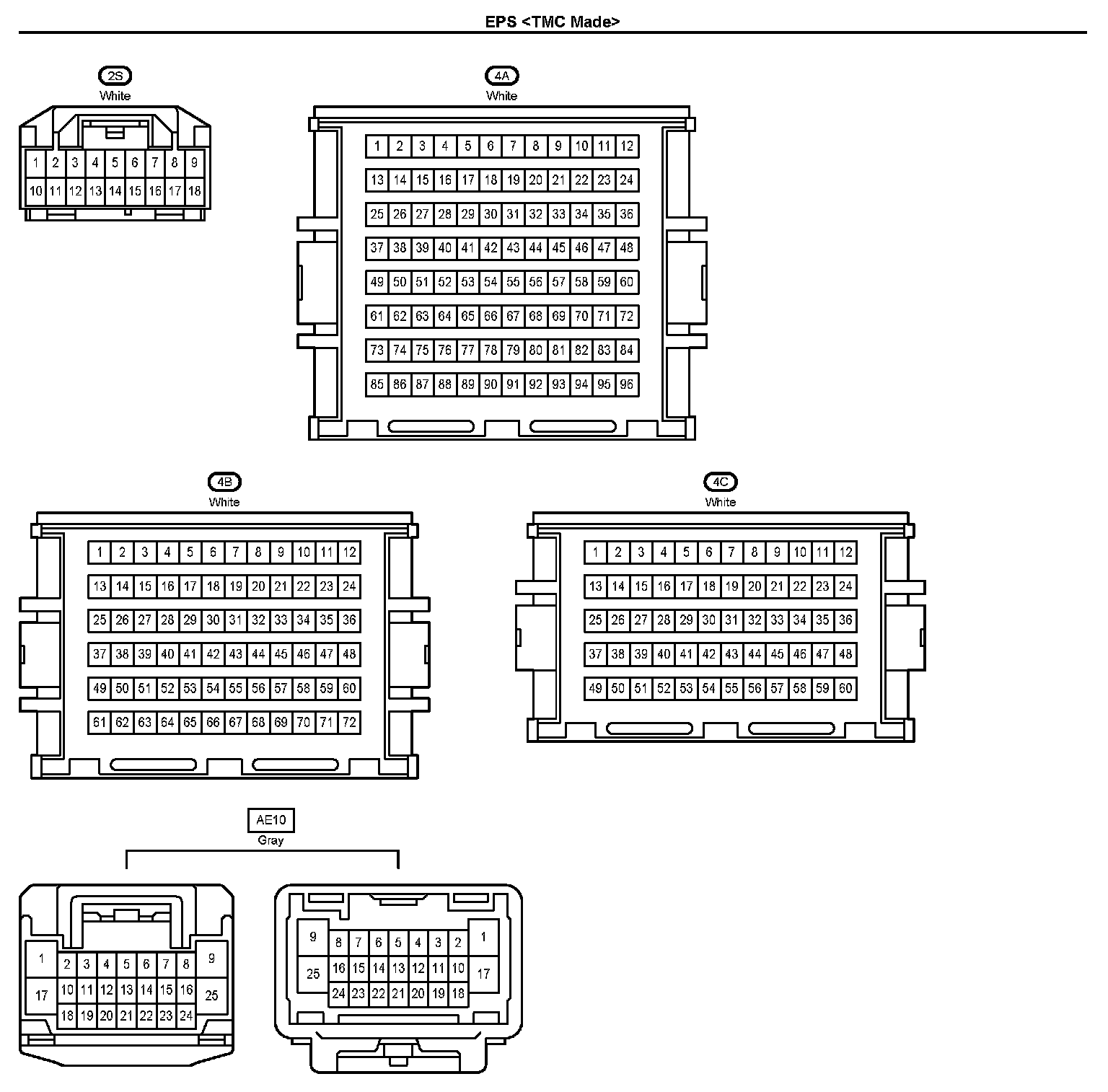

Connectors Part 2:

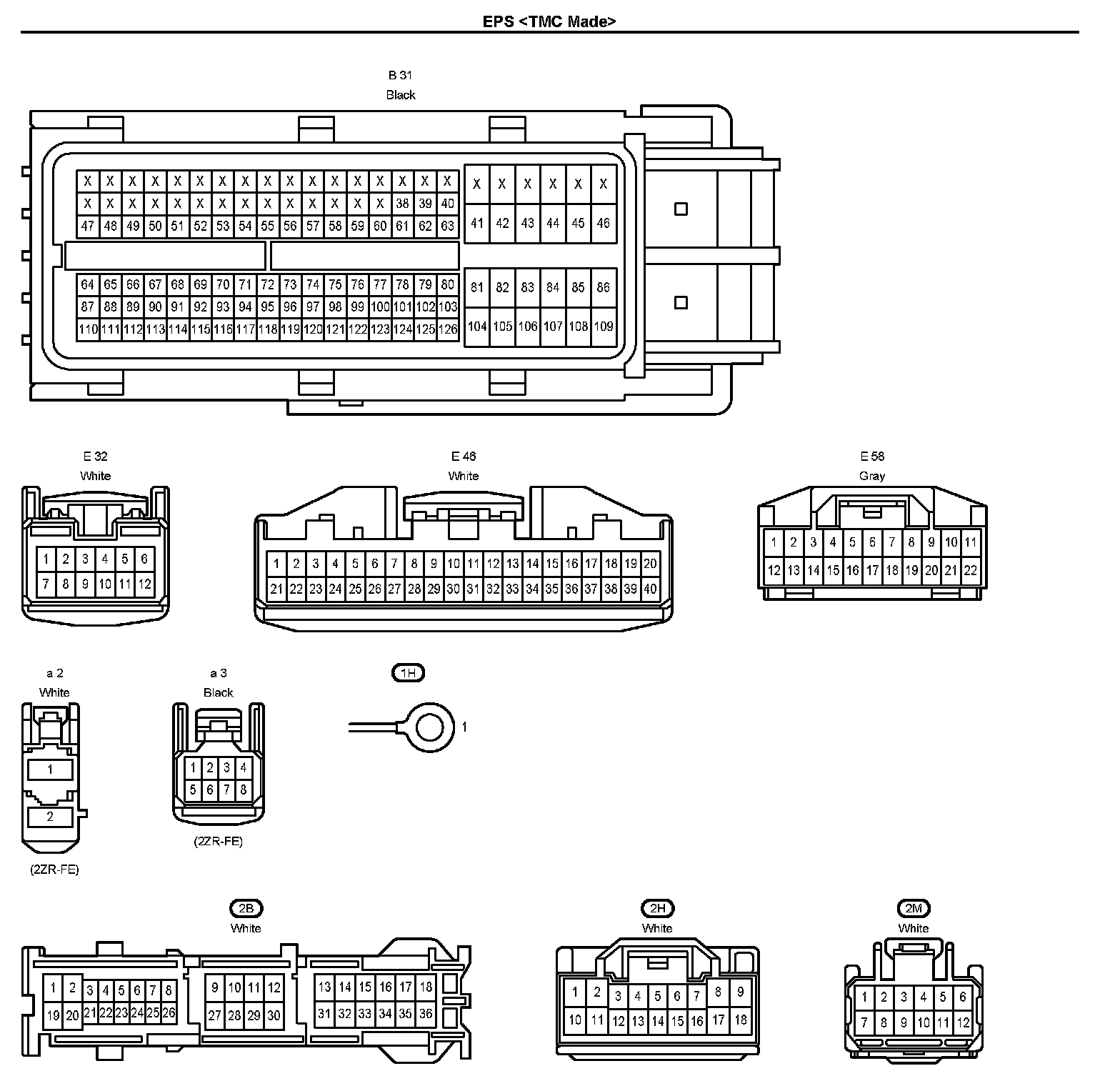

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
