Removal

U341E AUTOMATIC TRANSMISSION / TRANSAXLE: SPEED SENSOR: REMOVAL

REMOVAL

1. REMOVE NO. 2 CYLINDER HEAD COVER Removal
2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
3. REMOVE AIR CLEANER CASE Removal

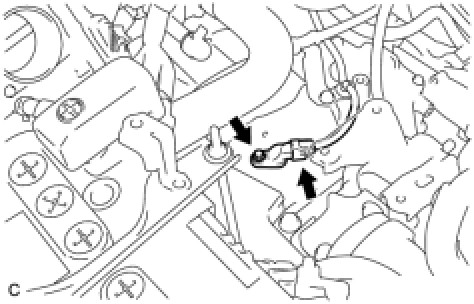

4. REMOVE SPEED SENSOR





(a) Disconnect the speed sensor connector.
(b) Remove the bolt and speed sensor.

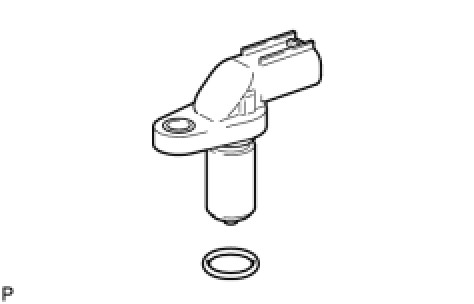

(c) Remove the O-ring from the speed sensor.
