U341E AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: DISASSEMBLY

DISASSEMBLY

1. REMOVE SHIFT SOLENOID VALVE S1

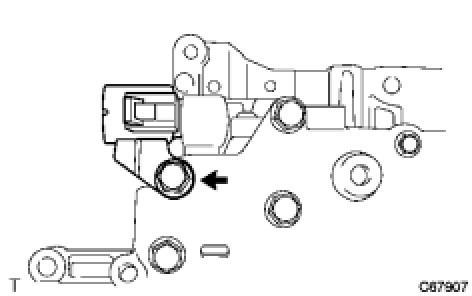

(a) Remove the bolt and pull out the shift solenoid valve S1.
2. REMOVE SHIFT SOLENOID VALVE S2

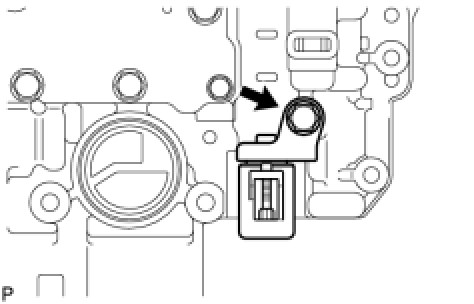

(a) Remove the bolt and pull out the shift solenoid valve S2.
3. REMOVE SHIFT SOLENOID VALVE SLU

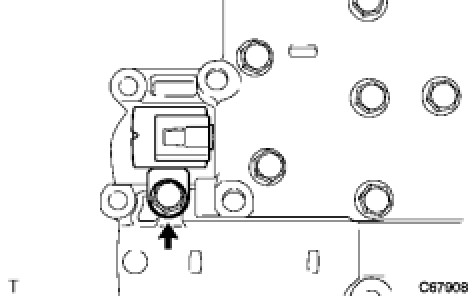

(a) Remove the bolt and solenoid lock plate.
(b) Pull out the shift solenoid valve SLU.
4. REMOVE NO. 3 SOLENOID LOCK PLATE

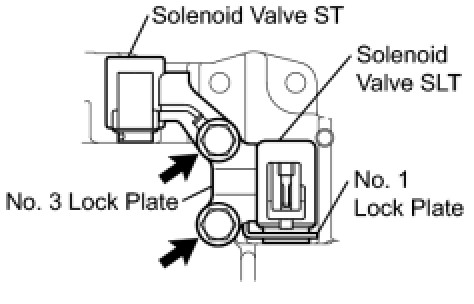

(a) Remove the 2 bolts and No. 3 solenoid lock plate from the valve body.
(b) Pull out the shift solenoid valve ST from the valve body.
(c) Remove the No. 1 solenoid lock plate from the shift solenoid valve SLT.
(d) Pull out the shift solenoid valve SLT from the valve body.
