Removal

CLUTCH: CLUTCH RELEASE CYLINDER (for C59): REMOVAL

REMOVAL

1. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY

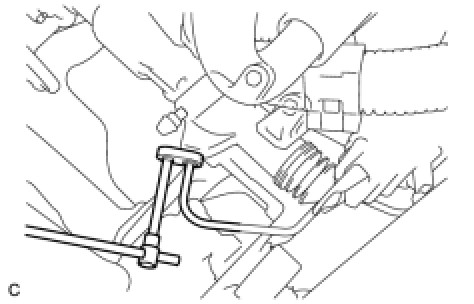

(a) Using a union nut wrench (10 mm), disconnect the clutch line.
HINT: Use a container to catch the fluid.

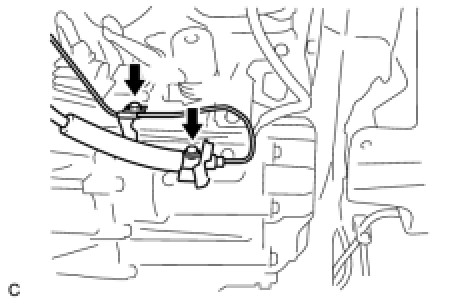

(b) Remove the 2 bolts and disconnect the clutch tube bracket.

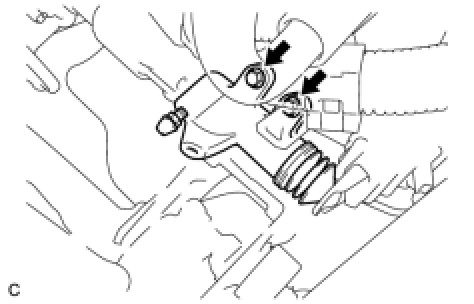

(c) Remove the 2 bolts and the clutch release cylinder.
