CLUTCH: CLUTCH UNIT (for C59): REMOVAL

REMOVAL

1. REMOVE MANUAL TRANSAXLE ASSEMBLY
Removal.

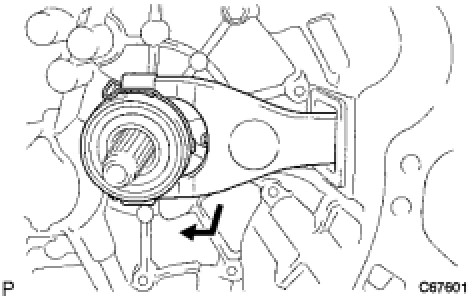

2. REMOVE CLUTCH RELEASE FORK SUB-ASSEMBLY





(a) Remove the clutch release fork with the clutch release bearing from the manual transaxle.

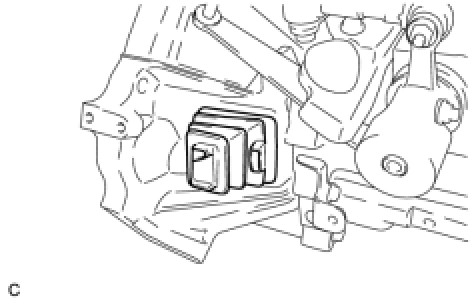

3. REMOVE CLUTCH RELEASE FORK BOOT





(a) Remove the clutch release fork boot from the manual transaxle.

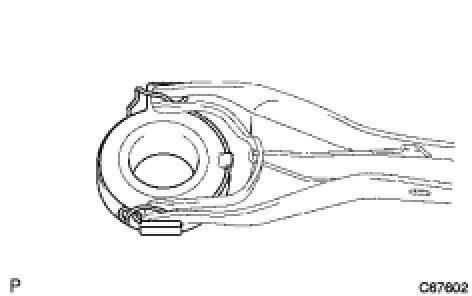

4. REMOVE CLUTCH RELEASE BEARING ASSEMBLY





(a) Remove the release bearing and clip from the clutch release fork.

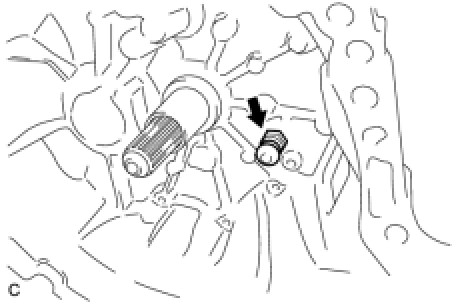

5. REMOVE RELEASE FORK SUPPORT





(a) Remove the release fork support from the manual transaxle.
6. REMOVE CLUTCH COVER ASSEMBLY

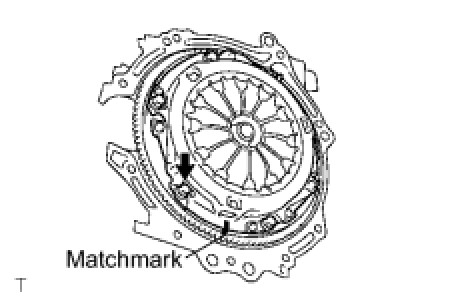

(a) Put matchmarks on the clutch cover assembly and the flywheel sub-assembly.
(b) Loosen each set bolt one turn at a time until the spring tension is released.
(c) Remove the set bolts and pull off the clutch cover.
NOTE: Do not drop the clutch disc.

7. REMOVE CLUTCH DISC ASSEMBLY
NOTE: Keep the parts clutch disc lining, the pressure plate, and the surface of the flywheel sub-assembly free of oil and foreign matter.
