C59 MANUAL TRANSMISSION / TRANSAXLE: DIFFERENTIAL OIL SEAL: REPLACEMENT

REPLACEMENT

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. DRAIN MANUAL TRANSAXLE OIL Service and Repair
4. REMOVE FRONT DRIVE SHAFT ASSEMBLY
Removal.
5. REMOVE TRANSMISSION CASE OIL SEAL

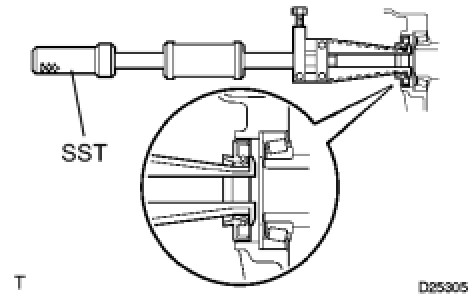

(a) Using SST, remove the transmission case oil seal.
SST: 09308-00010
6. REMOVE TRANSAXLE CASE OIL SEAL

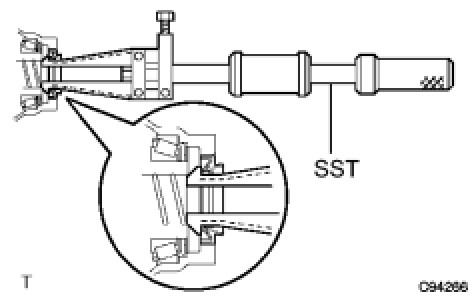

(a) Using SST, remove the transaxle case oil seal.
SST: 09308-00010
7. INSTALL TRANSMISSION CASE OIL SEAL





(a) Coat the lip of a new oil seal with MP grease.

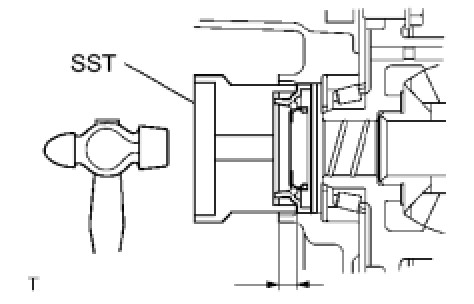

(b) Using SST and a hammer, tap in the oil seal.
SST: 09710-26011
09710-05061
Standard depth:
9.6 to 10.2 mm (0.378 to 0.402 in.)
NOTE: Do not damage the oil seal lip.

8. INSTALL TRANSAXLE CASE OIL SEAL





(a) Coat the lip of a new oil seal with MP grease.

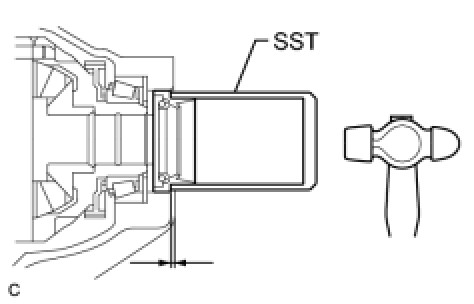

(b) Using SST and a hammer, tap in the oil seal.
SST: 09636-20010
Standard depth:
1.6 to 2.2 mm (0.0630 to 0.0866 in.)
NOTE: Do not damage the oil seal lip.

9. INSTALL FRONT DRIVE SHAFT ASSEMBLY
Installation.
10. ADD MANUAL TRANSAXLE OIL Service and Repair
11. INSPECT MANUAL TRANSAXLE OIL Testing and Inspection
12. INSTALL ENGINE UNDER COVER LH
13. INSTALL ENGINE UNDER COVER RH
