Installation

C59 MANUAL TRANSMISSION / TRANSAXLE: SHIFT LEVER ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL SHIFT LEVER ASSEMBLY





(a) Install the shift lever assembly with the 4 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

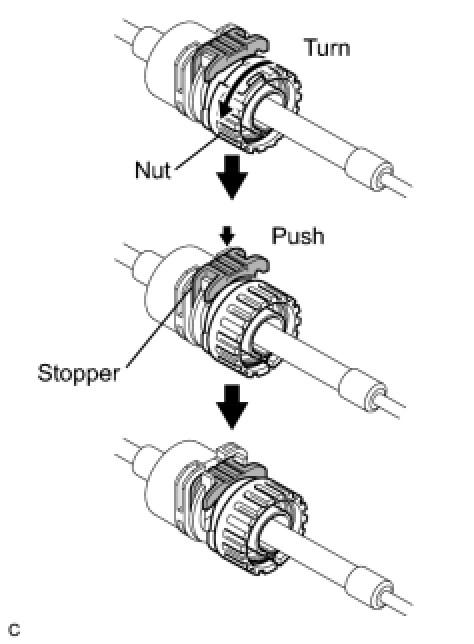

(a) Rotate the transmission control cable nut counterclockwise approximately 180° and, while holding the nut in that position, push in the stopper until it makes 2 "click" sounds.

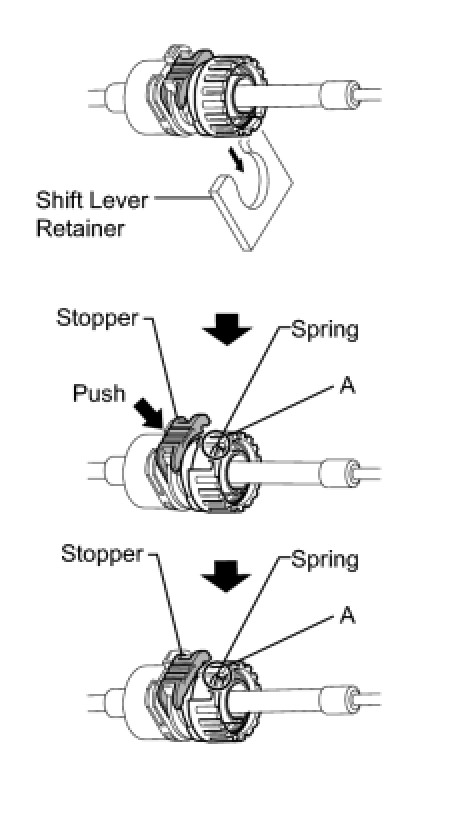

(b) Install the outer part of the transmission control cable to the shift lever retainer, check that the position of the spring is the same as A shown in the illustration, and push in the stopper.
HINT: If the stopper cannot be pushed in, slightly rotate the nut clockwise and then push in the stopper.





(c) Push the two claws together at the top of the transmission control cable lock piece. While holding the two claws together, push the two lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.

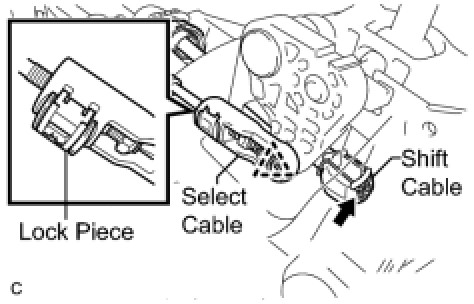

(d) Install the transmission control shift cable to the shift lever assembly.
(e) Install the control select cable to the shift lever assembly.
NOTICE:
- Make sure to adjust the length at the neutral shift position.
- Make sure that the lock piece is protruding from the adjuster case.

(f) Install the clip to the shift lever assembly.
(g) Press in and lock the lock piece to the adjuster case.
NOTE: Securely press in the lock piece until the lock engages.





(h) Install the wire harness to the shift lever assembly with the 3 clamps.
3. ADJUST TRANSMISSION CONTROL SELECT CABLE Adjustments
4. INSTALL CONSOLE BOX ASSEMBLY Installation
5. INSTALL CONSOLE BOX CARPET Installation
6. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
7. INSTALL FRONT NO. 1 CONSOLE BOX INSERT Installation
8. INSTALL FRONT NO. 2 CONSOLE BOX INSERT Installation
9. INSTALL INSTRUMENT PANEL BOX ASSEMBLY Installation
10. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
12. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation
13. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH Installation
