Pinout Values and Diagnostic Parameters

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

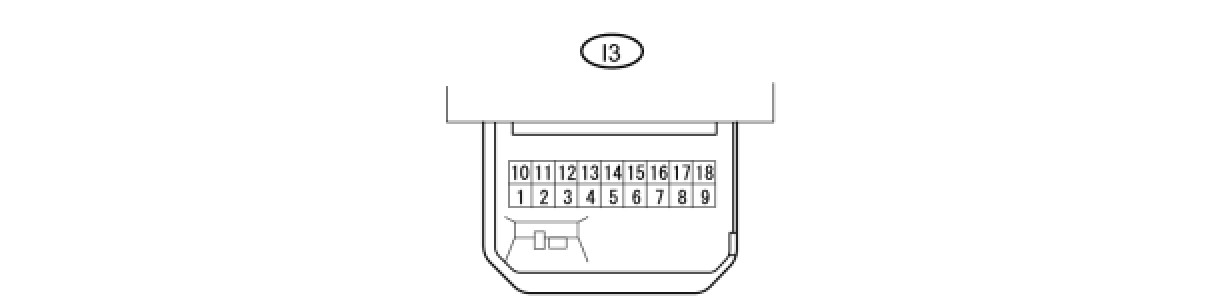

1. CHECK POWER WINDOW MASTER SWITCH

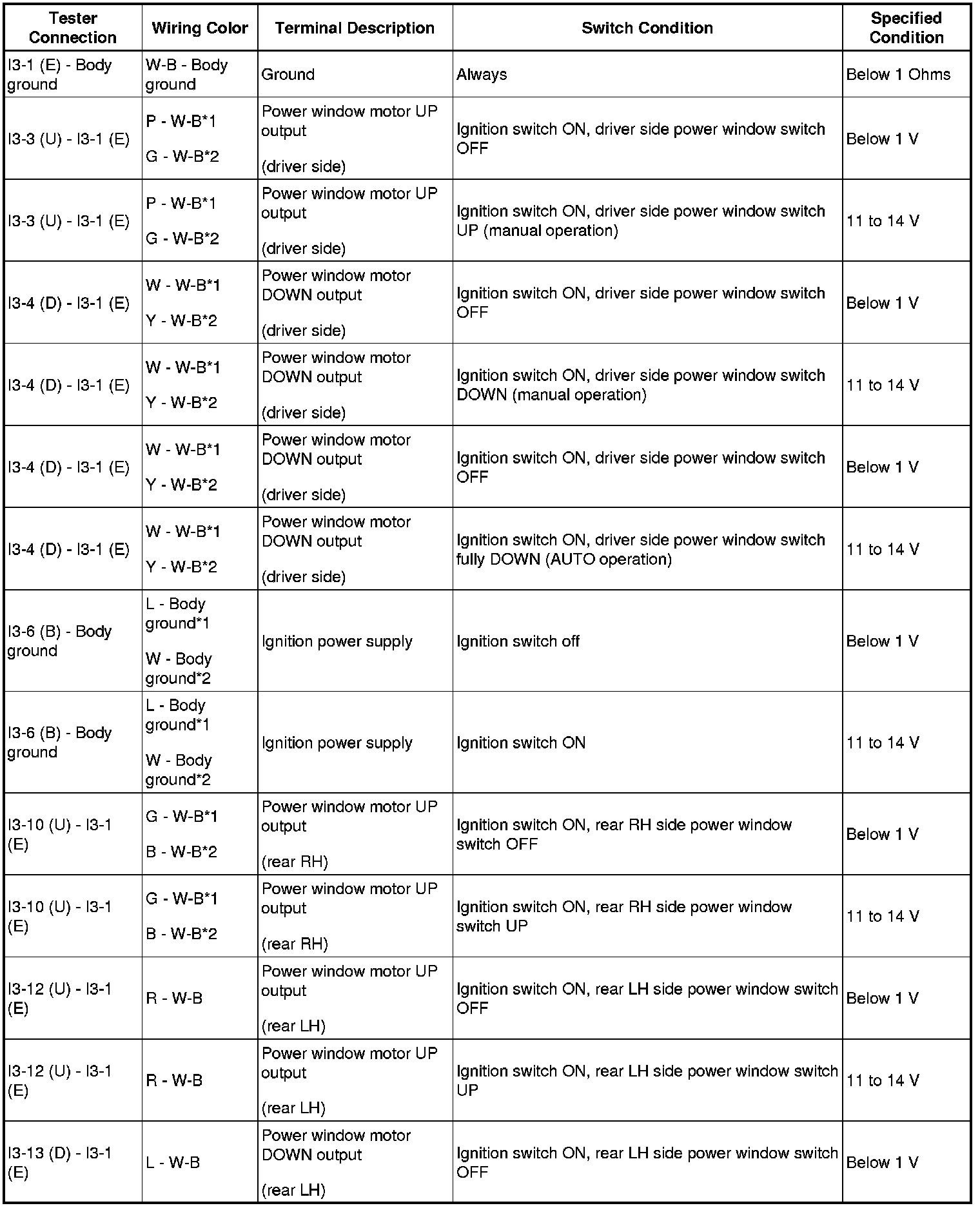

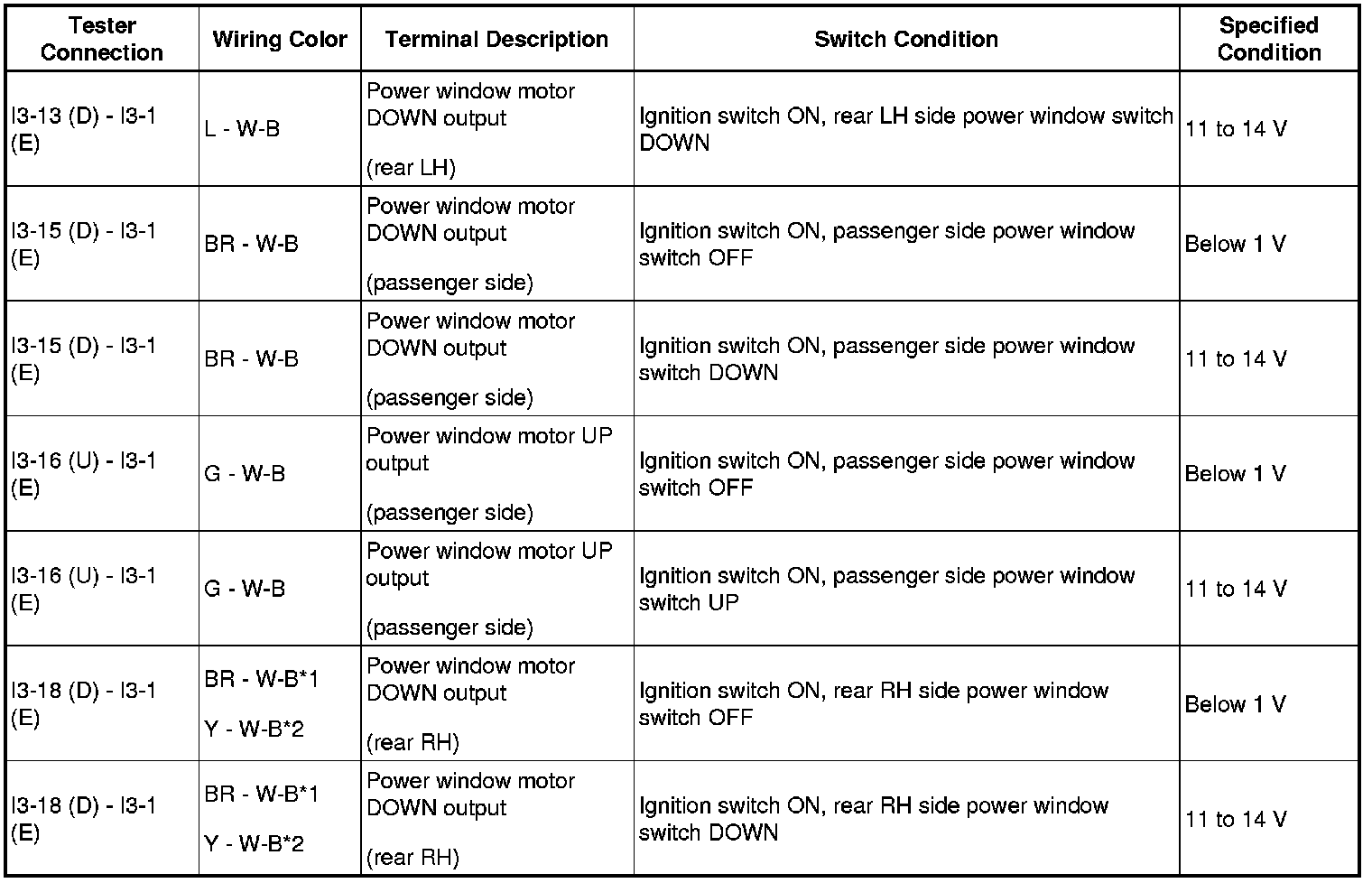

(a) Measure the voltage and resistance according to the value(s) in the table below.













- *1: TMC Made
- *2: NUMMI, TMMC Made
If the result is not as specified, the master switch or wire harness may have a malfunction.
2. CHECK POWER WINDOW SWITCH (PASSENGER SIDE)

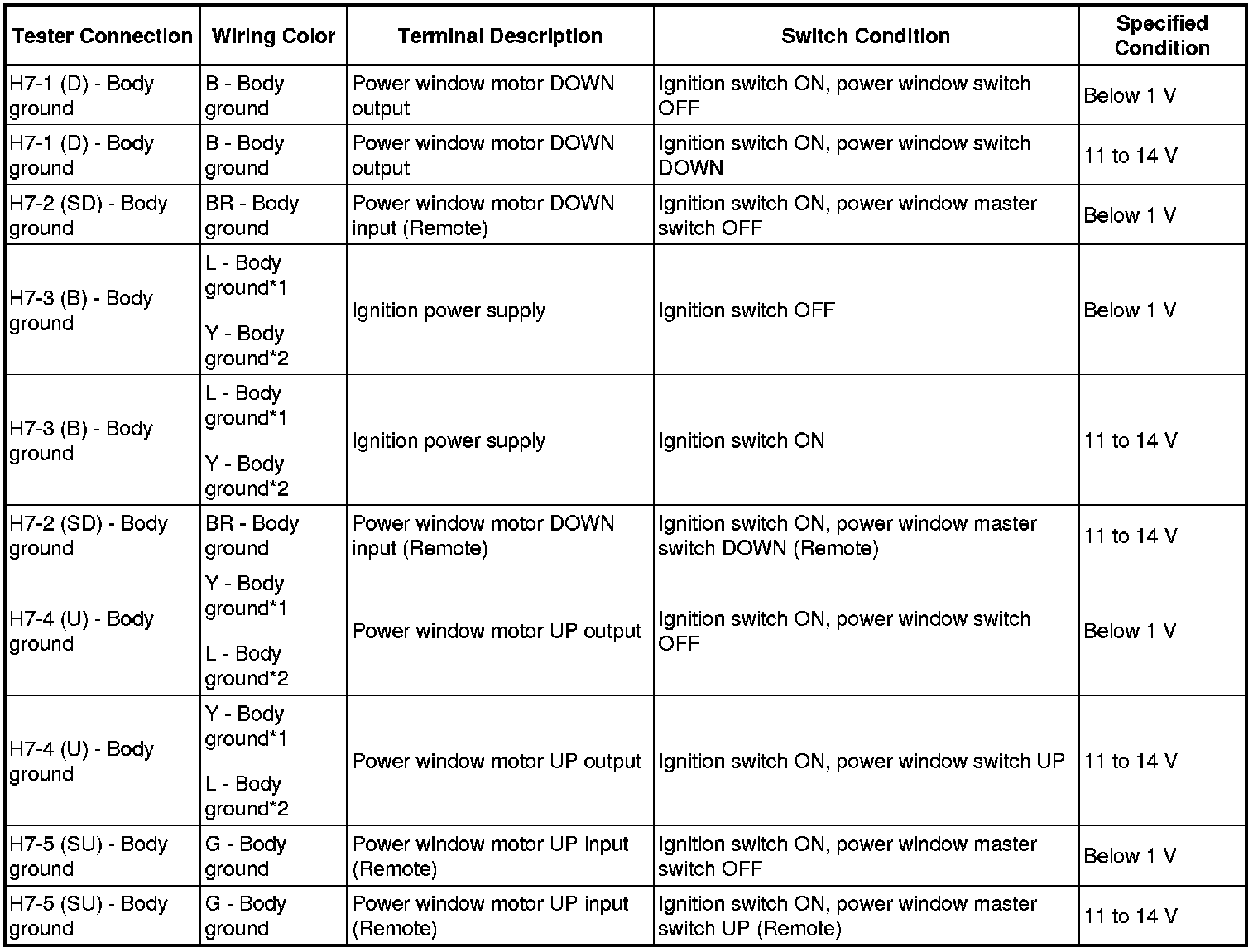

(a) Measure the voltage according to the value(s) in the table below.









- *1: TMC Made
- *2: NUMMI, TMMC Made
If the result is not as specified, the switch or wire harness may have a malfunction.

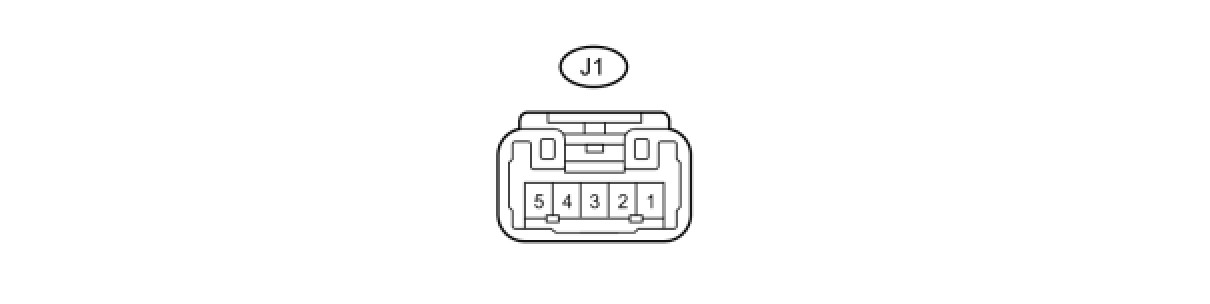

3. CHECK POWER WINDOW SWITCH (REAR LH SIDE)

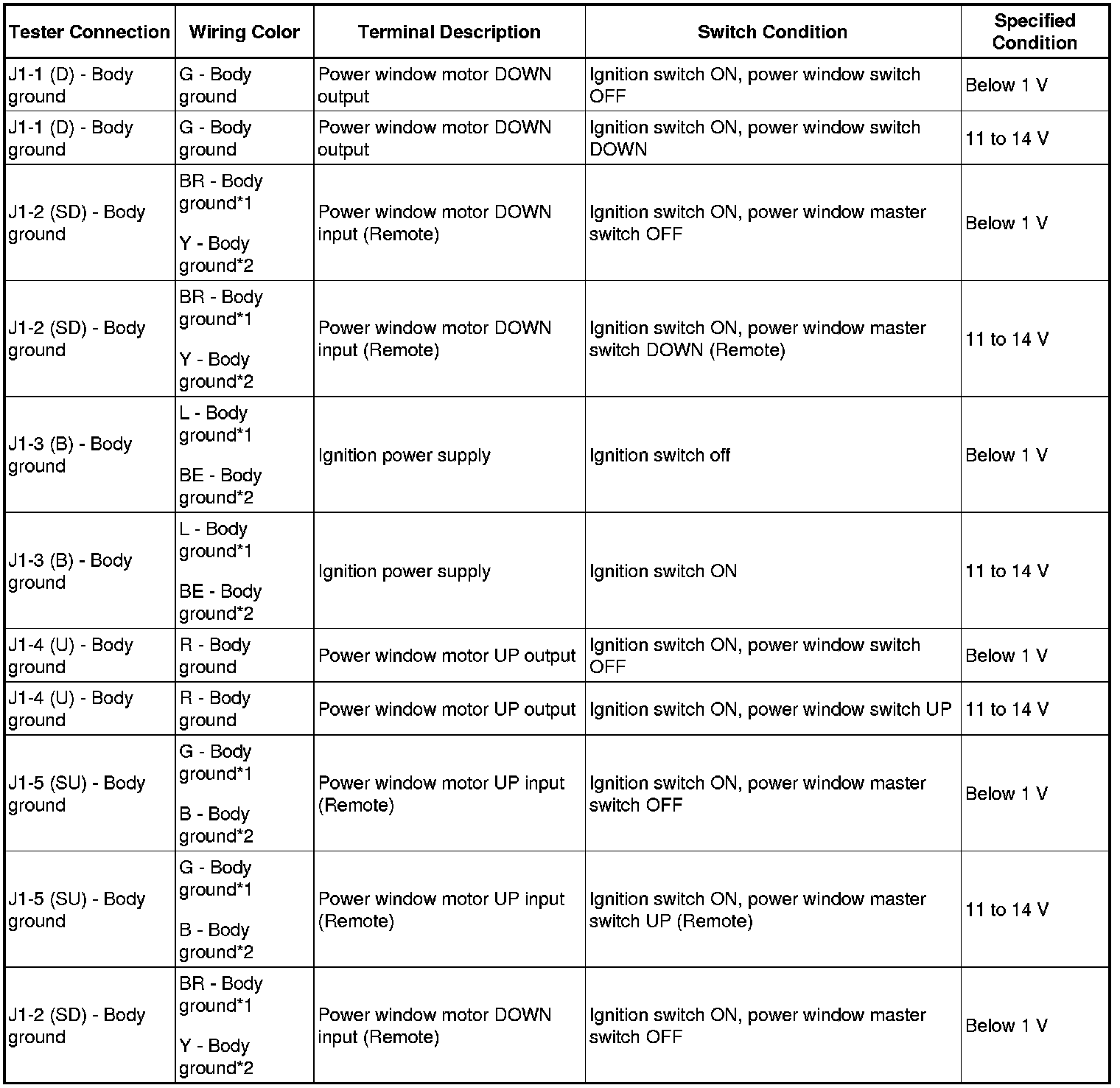

(a) Measure the voltage according to the value(s) in the table below.









If the result is not as specified, the switch or wire harness may have a malfunction.
4. CHECK POWER WINDOW SWITCH (REAR RH SIDE)

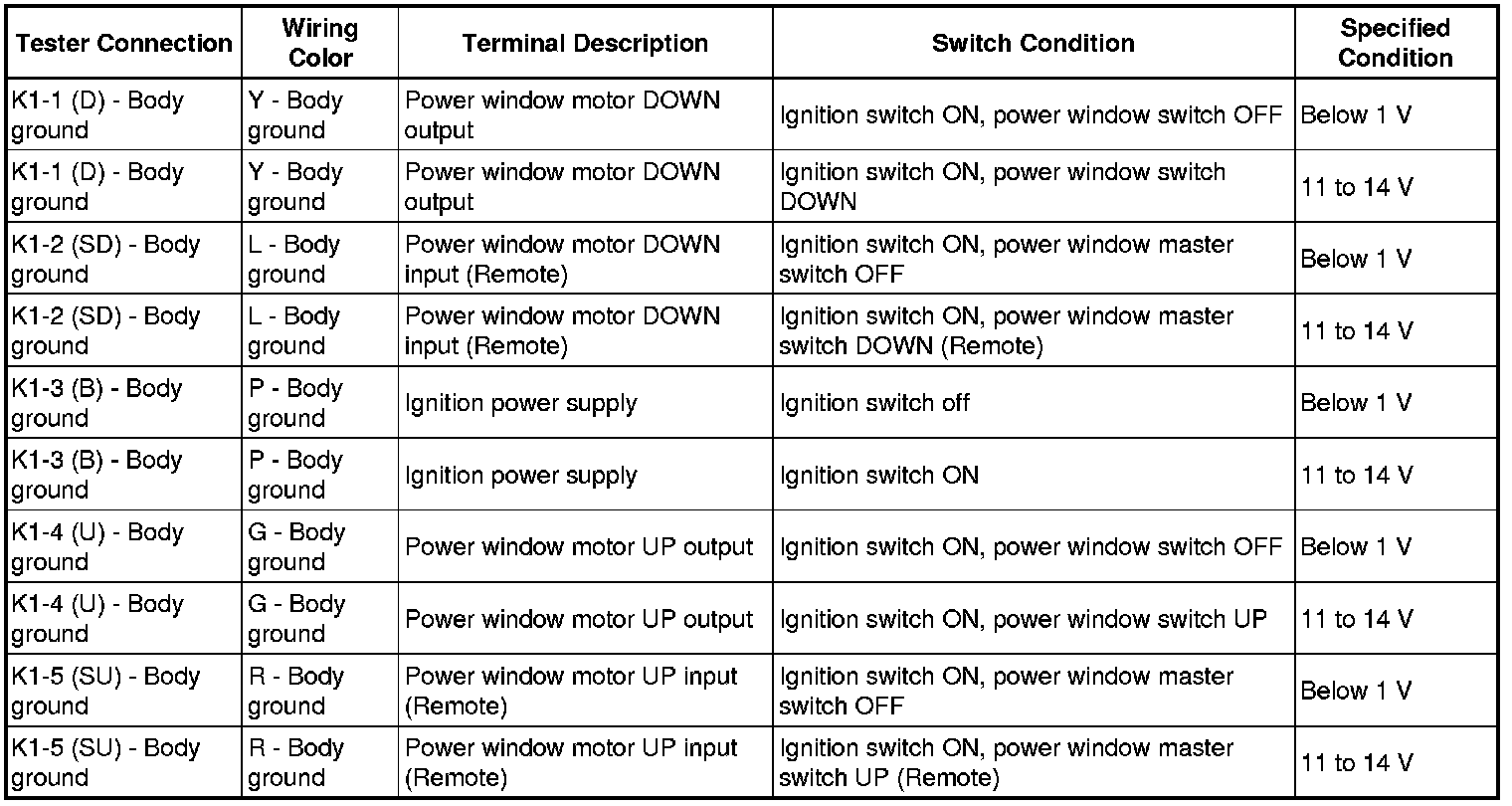

(a) Measure the voltage according to the value(s) in the table below.









- *1: TMC Made
- *2: NUMMI, TMMC Made
If the result is not as specified, the switch or wire harness may have a malfunction.
