Installation

WIPER / WASHER: WASHER MOTOR: INSTALLATION

INSTALLATION

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

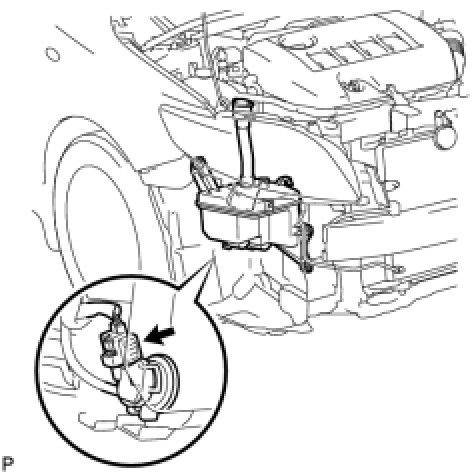

(a) Install the windshield washer motor and pump assembly.
(b) Connect the connector.
2. FILL WASHER JAR WITH WASHER FLUID

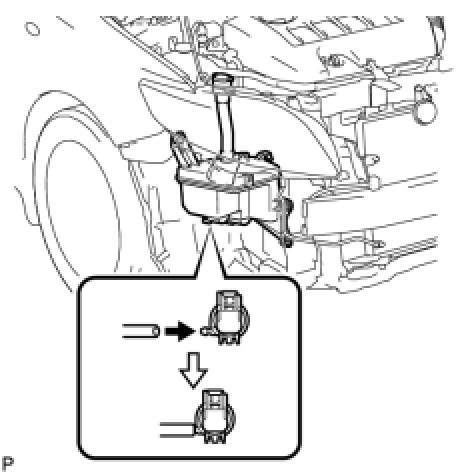

(a) Connect the washer hose to the windshield washer motor and pump assembly and fill the washer jar with washer fluid.
3. INSTALL FRONT BUMPER ASSEMBLY Installation
4. INSTALL NO. 4 ENGINE UNDER COVER (for 2AZ-FE) Installation
5. INSTALL RADIATOR GRILLE PROTECTOR Installation
6. VEHICLE PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
7. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
8. FOG LIGHT AIMING INSPECTION (w/ Fog Light) Adjustments
9. FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
