On-Vehicle Inspection
WIPER / WASHER: FRONT WIPER MOTOR: ON-VEHICLE INSPECTION
ON-VEHICLE INSPECTION
1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
(a) Operate the windshield wiper motor.
(b) Stop the windshield wiper motor operation.
(c) Check the automatic stop position.
OK:

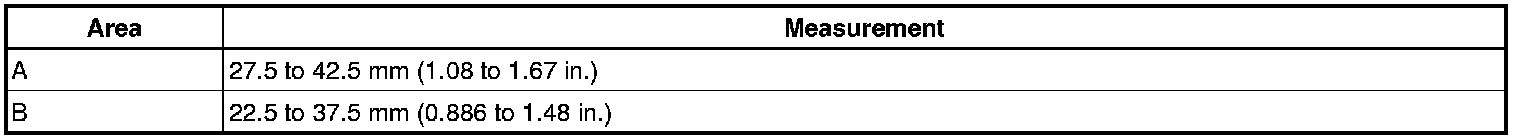

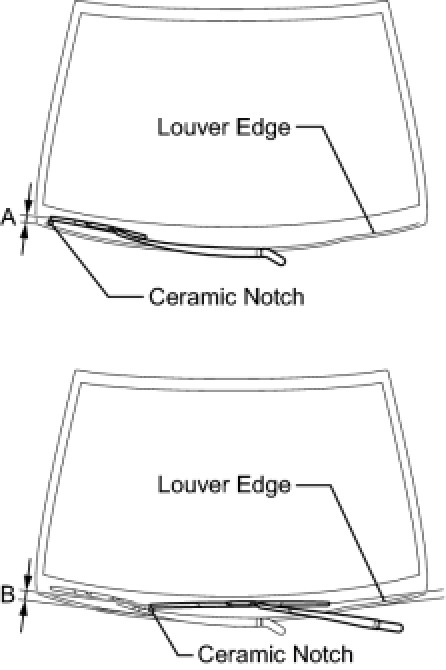

The windshield wipers stop at the positions shown in the illustration.
If the result is not as specified, the windshield wiper motor may have a malfunction.
