Engine Control System - SFI System
2AZ-FE ENGINE CONTROL: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument and other factors.

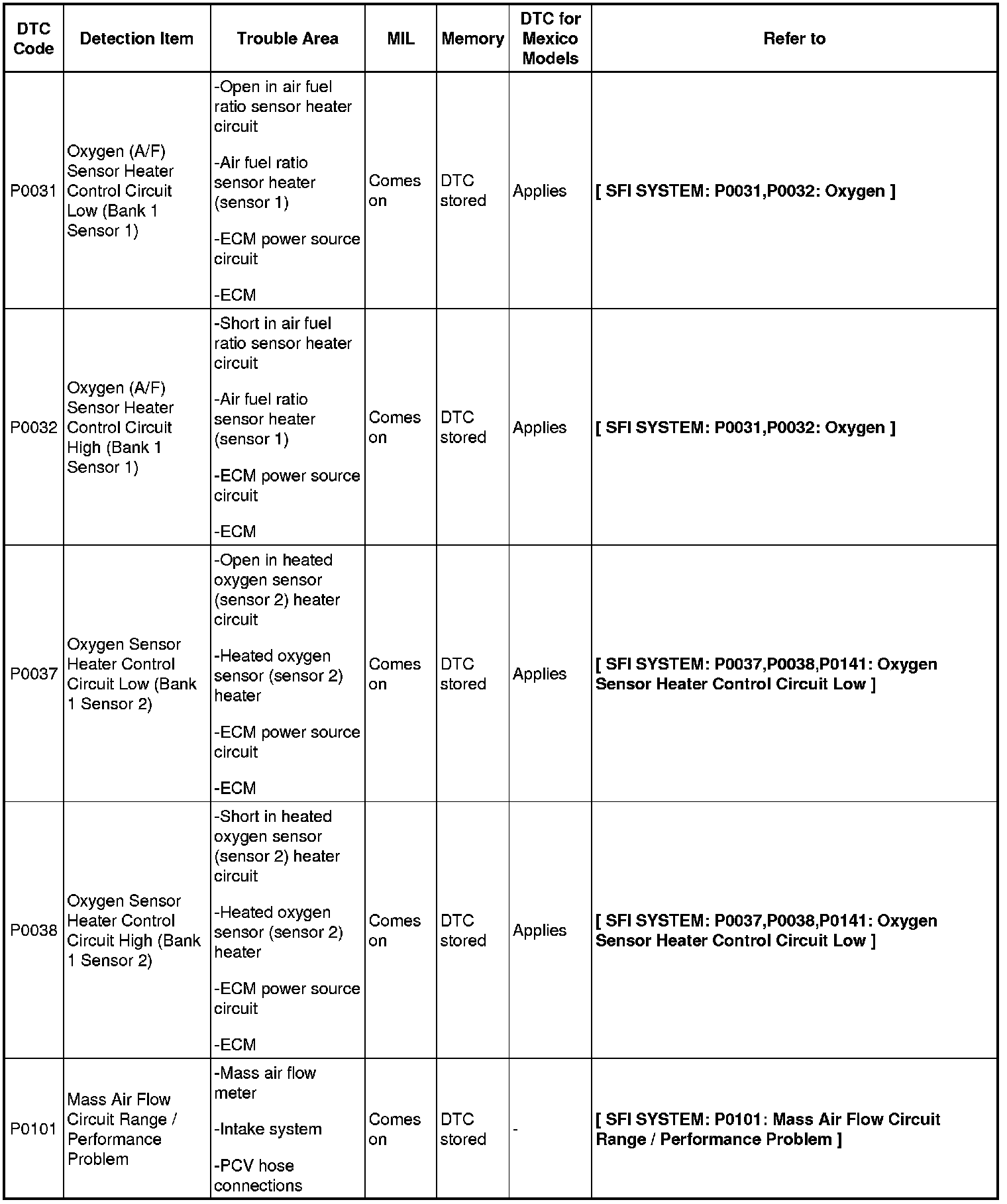

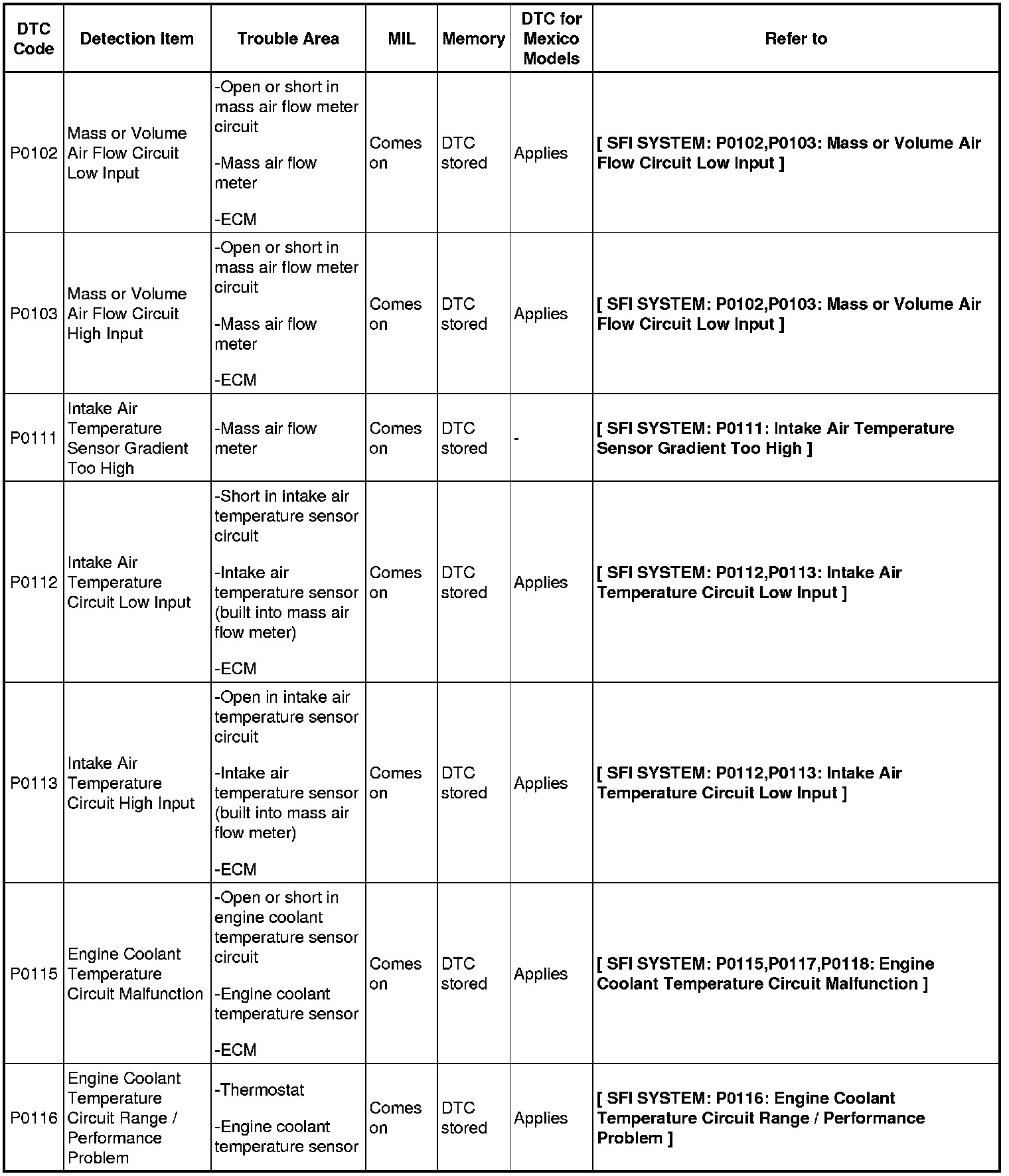

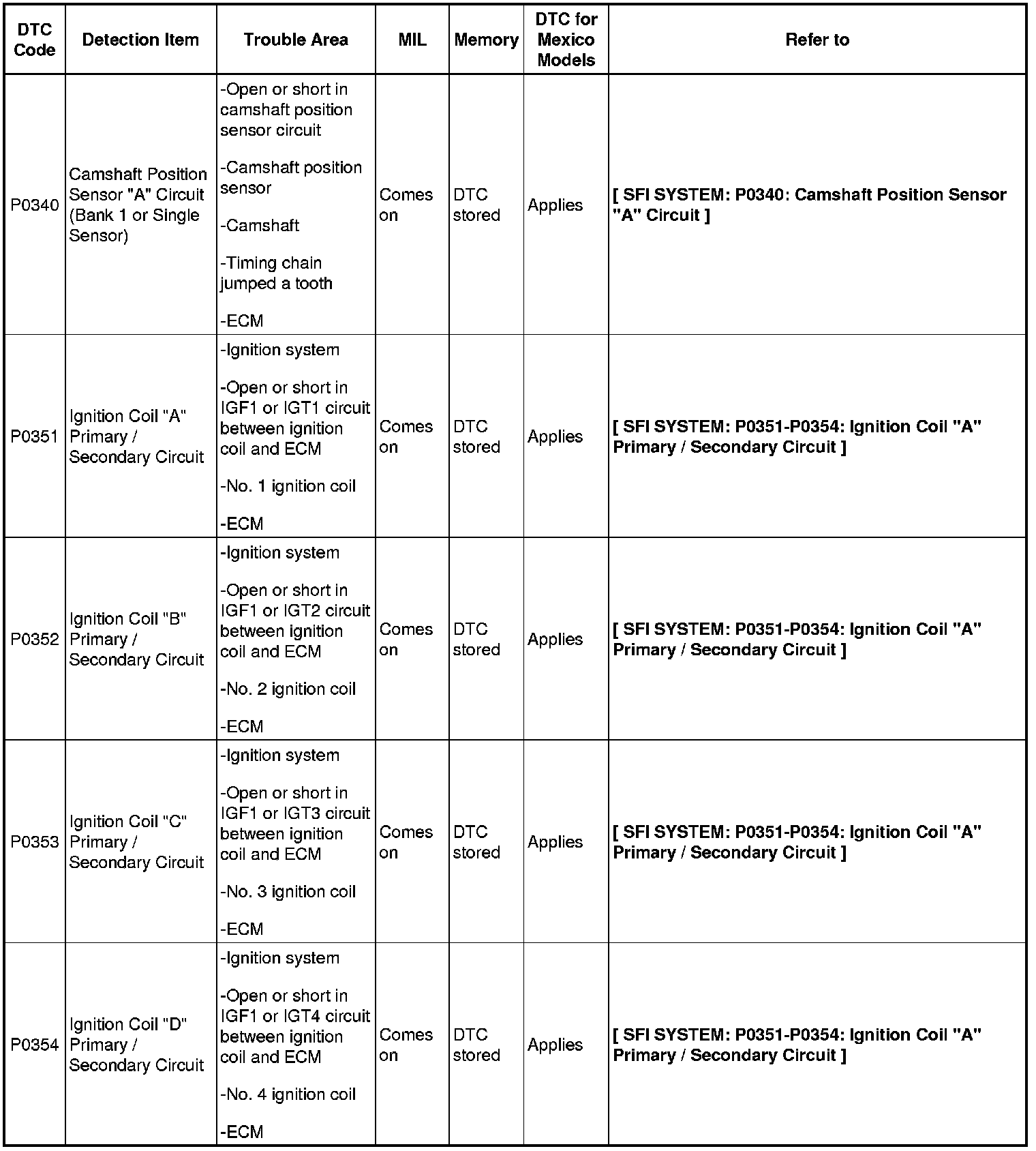

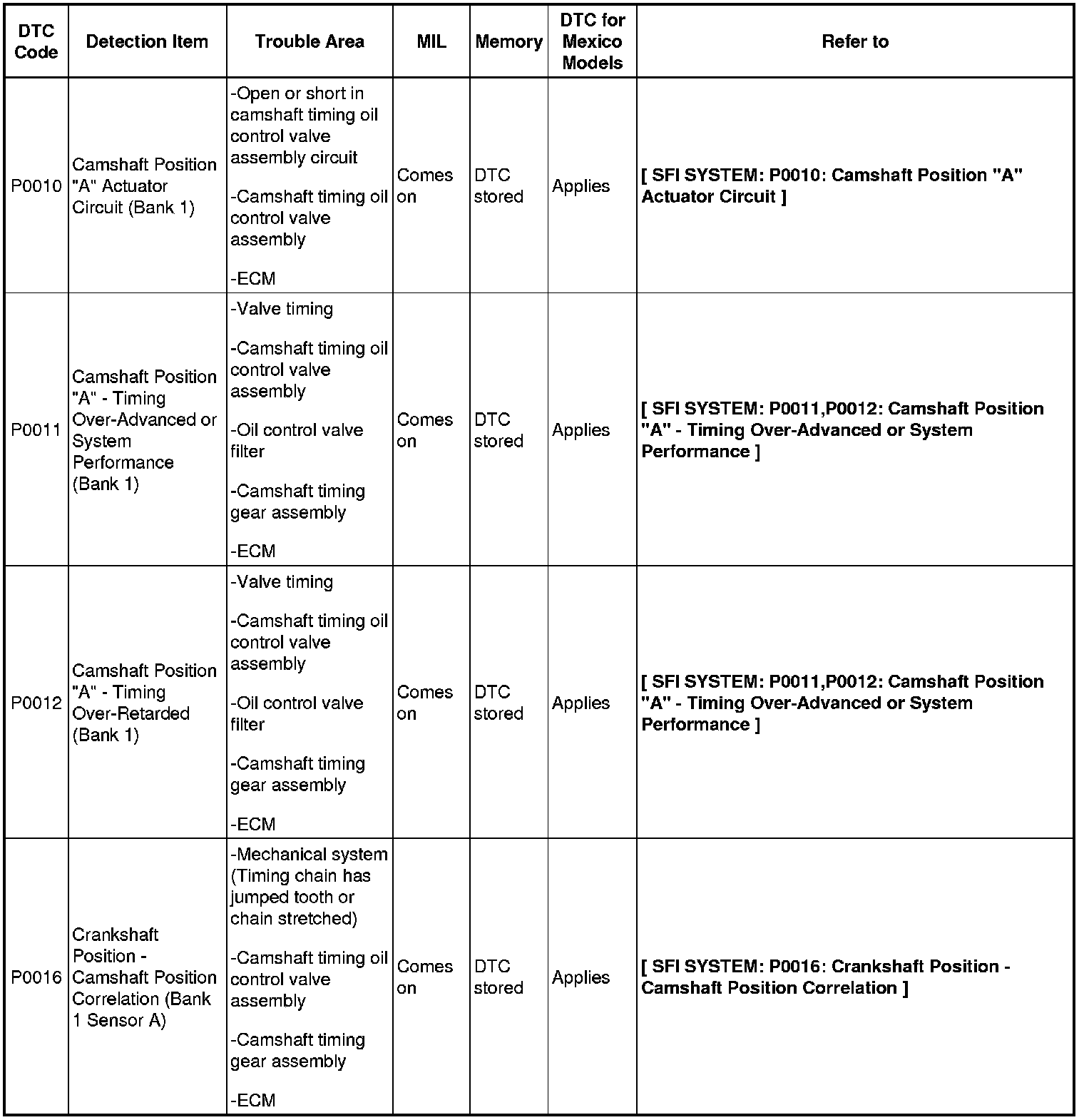

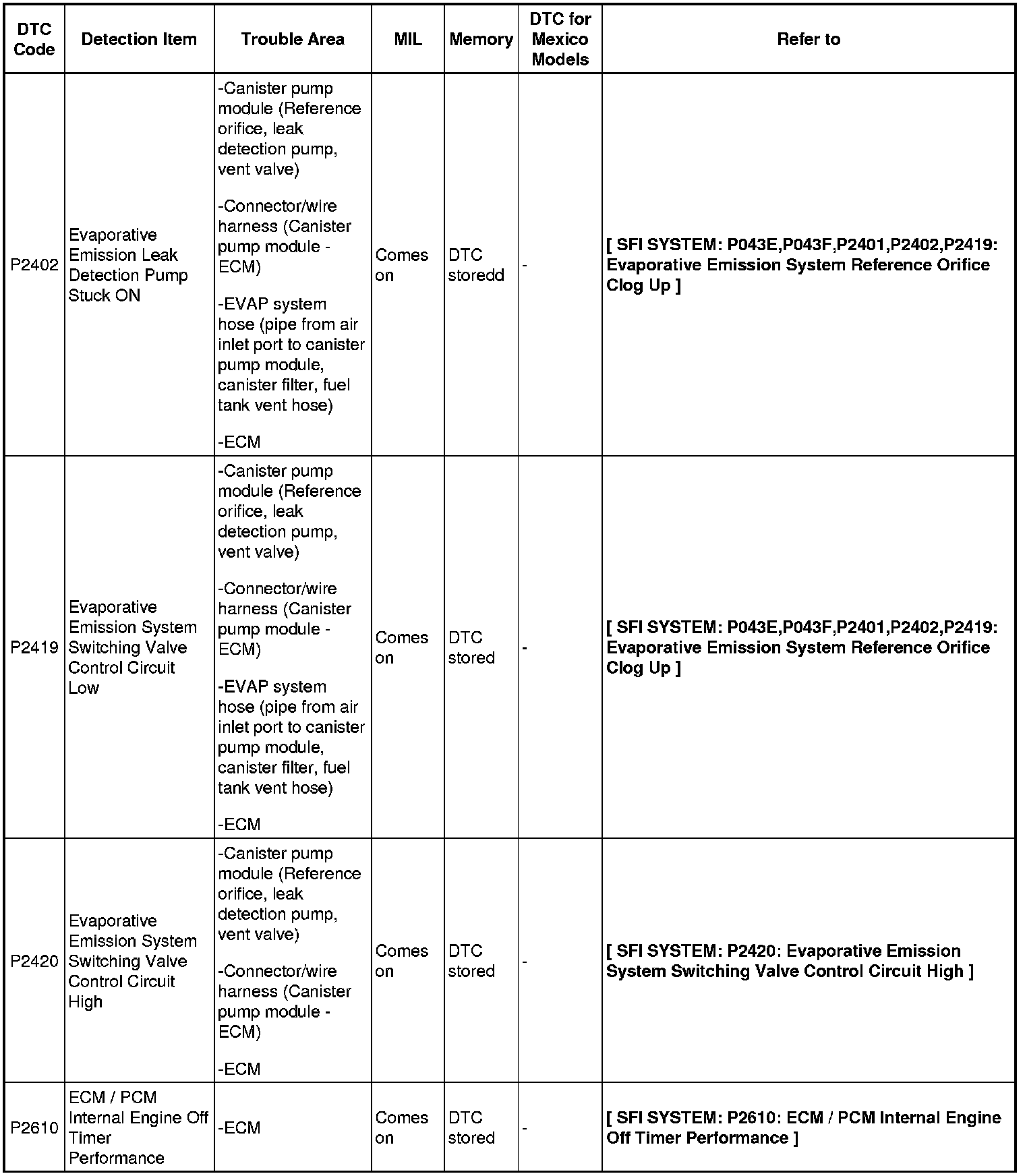

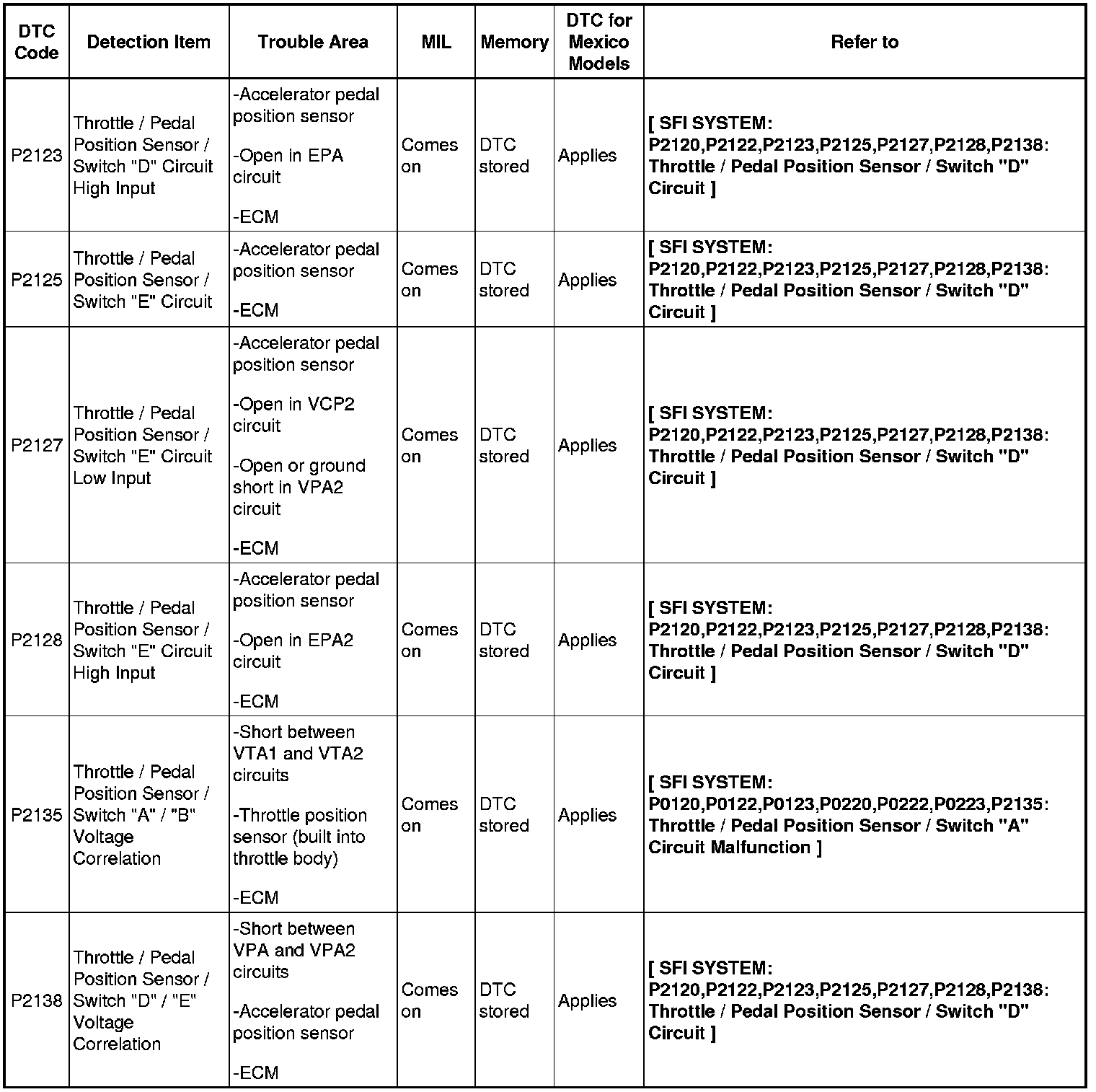

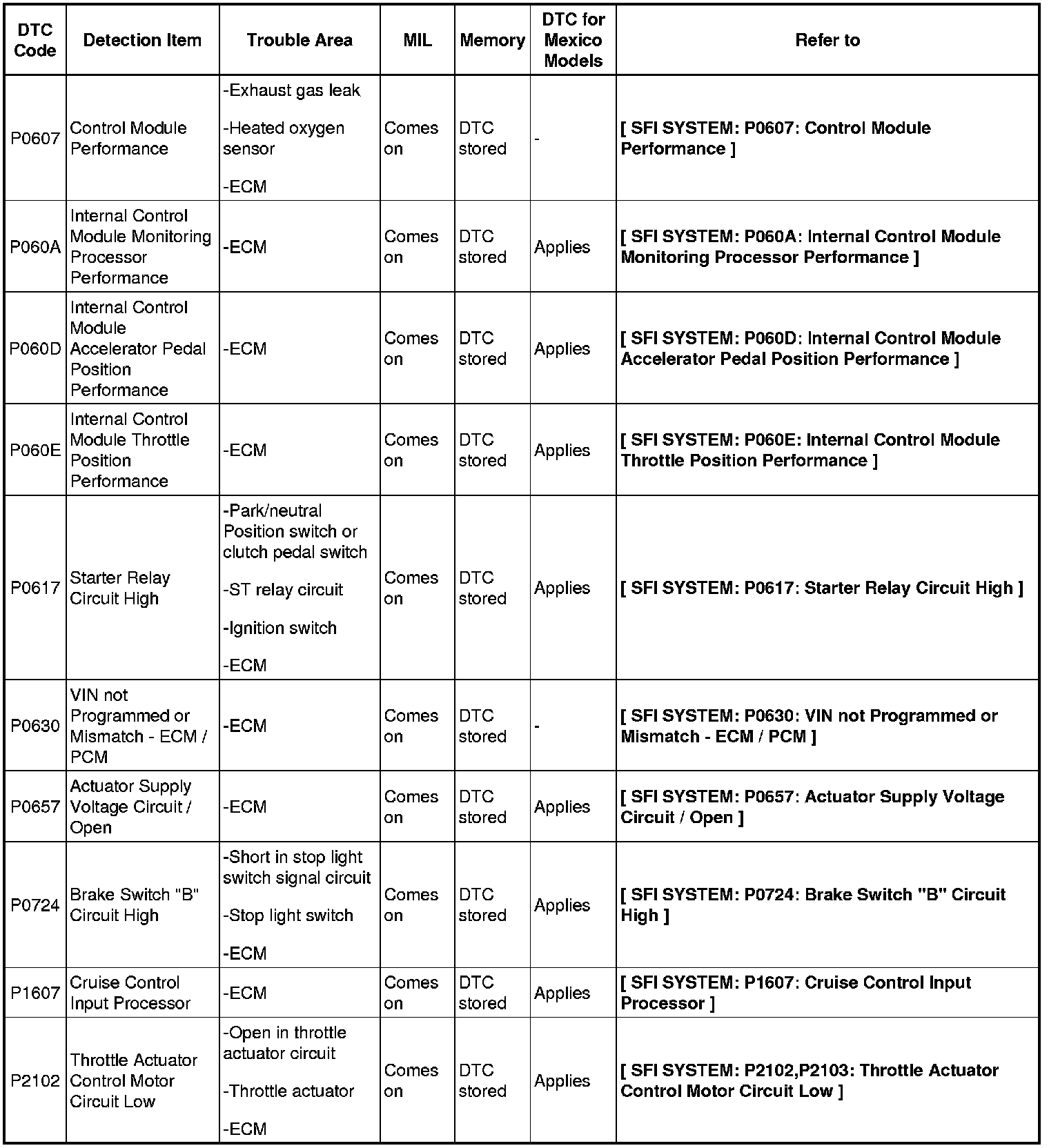

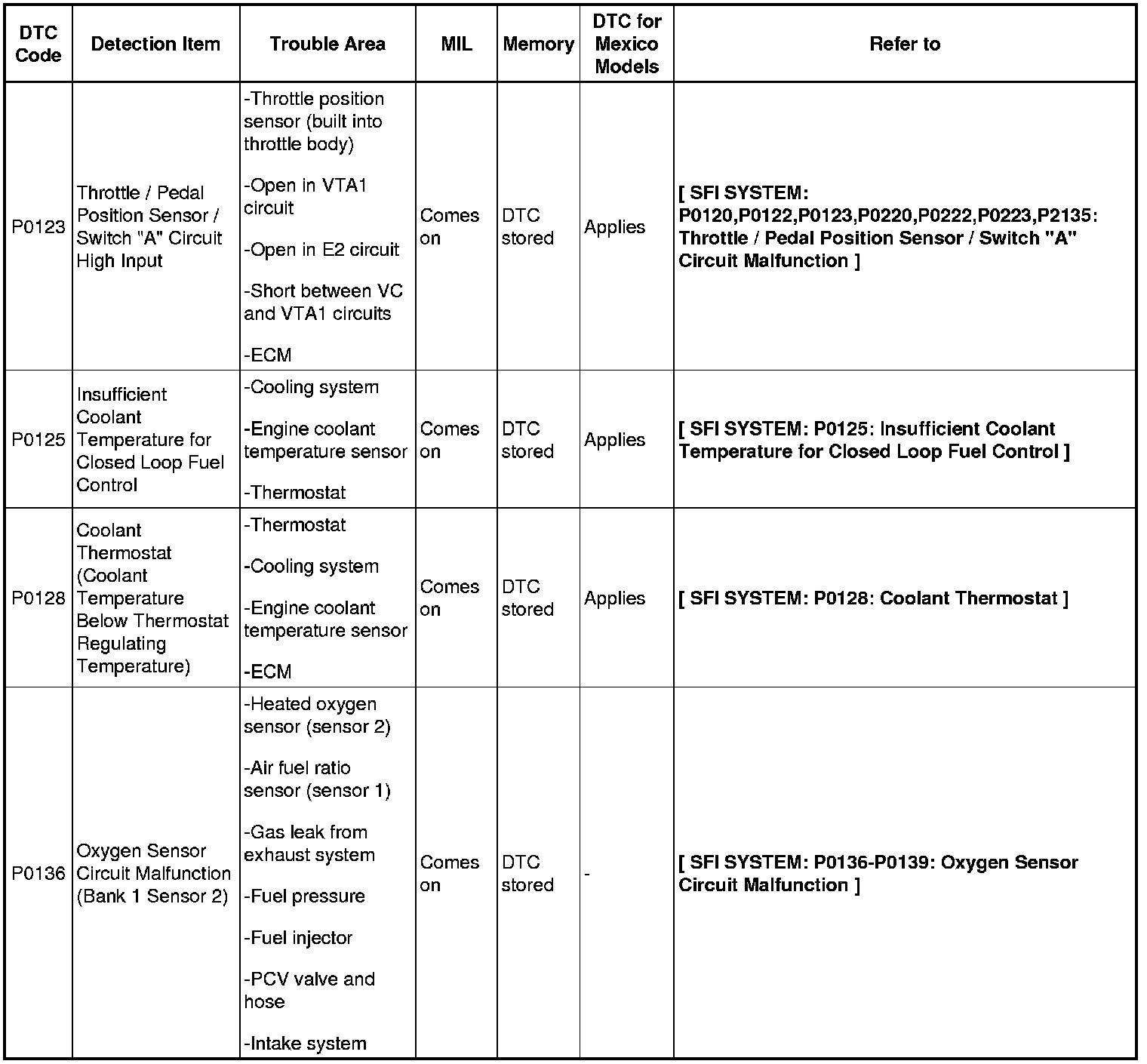

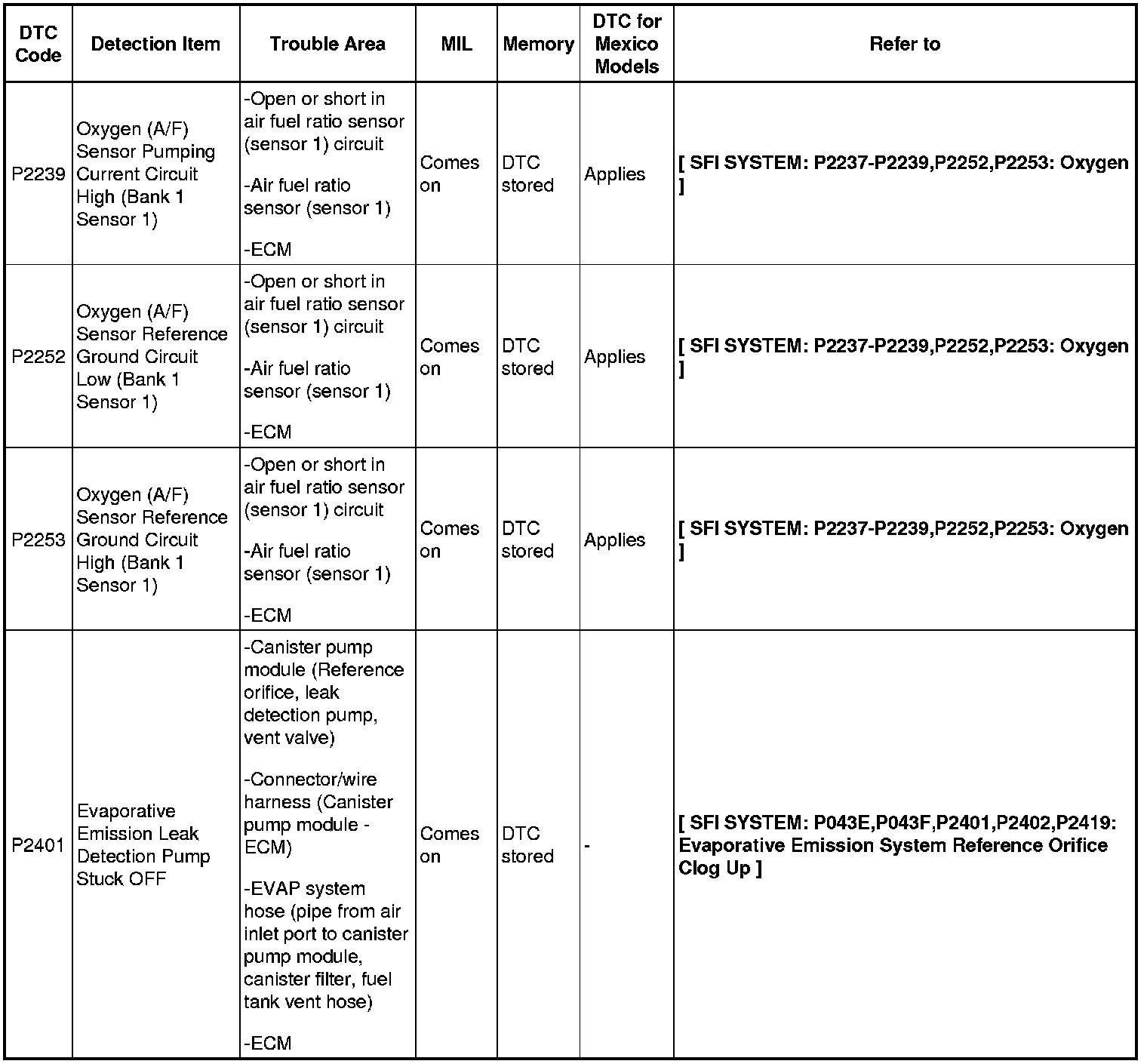

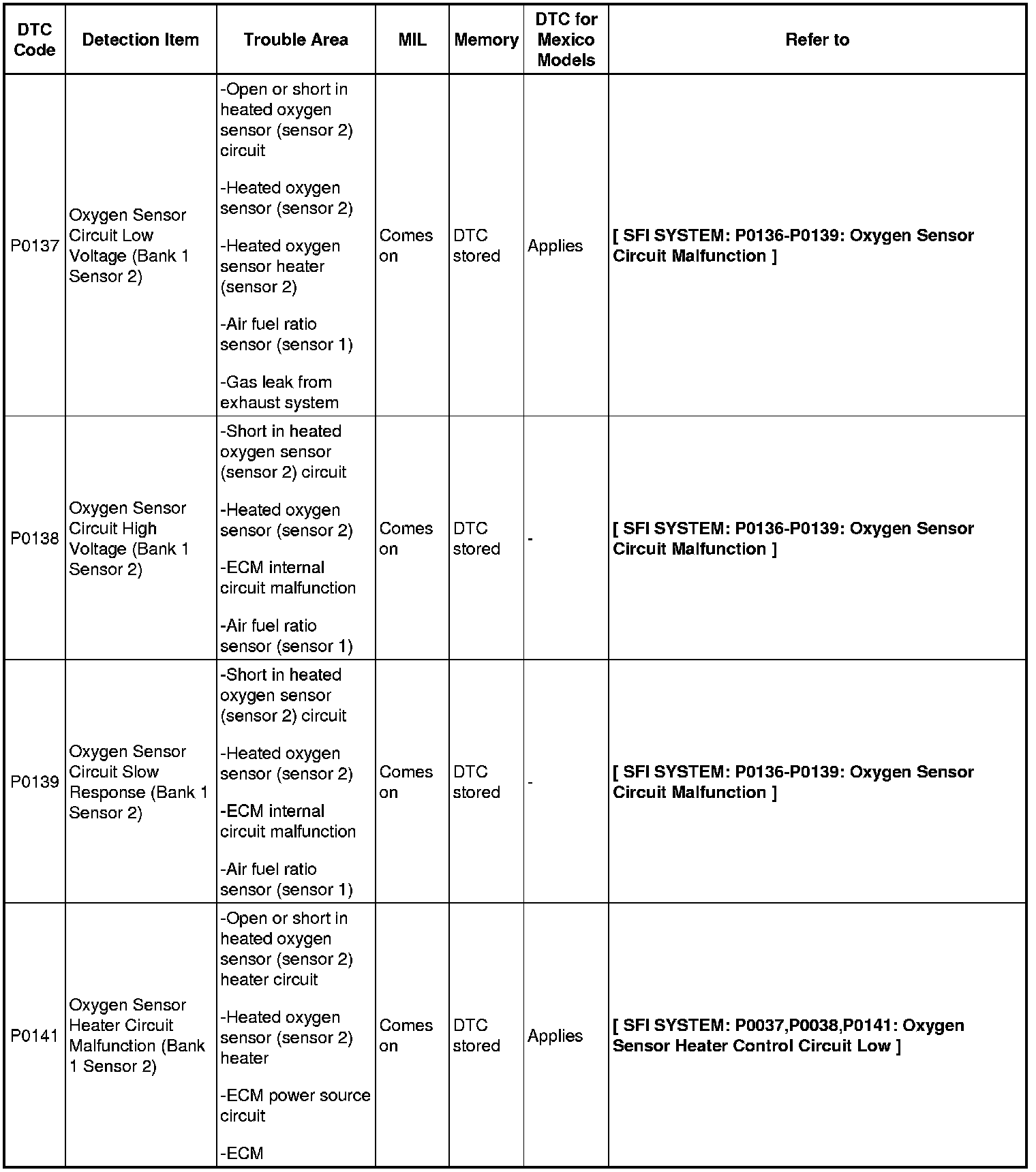

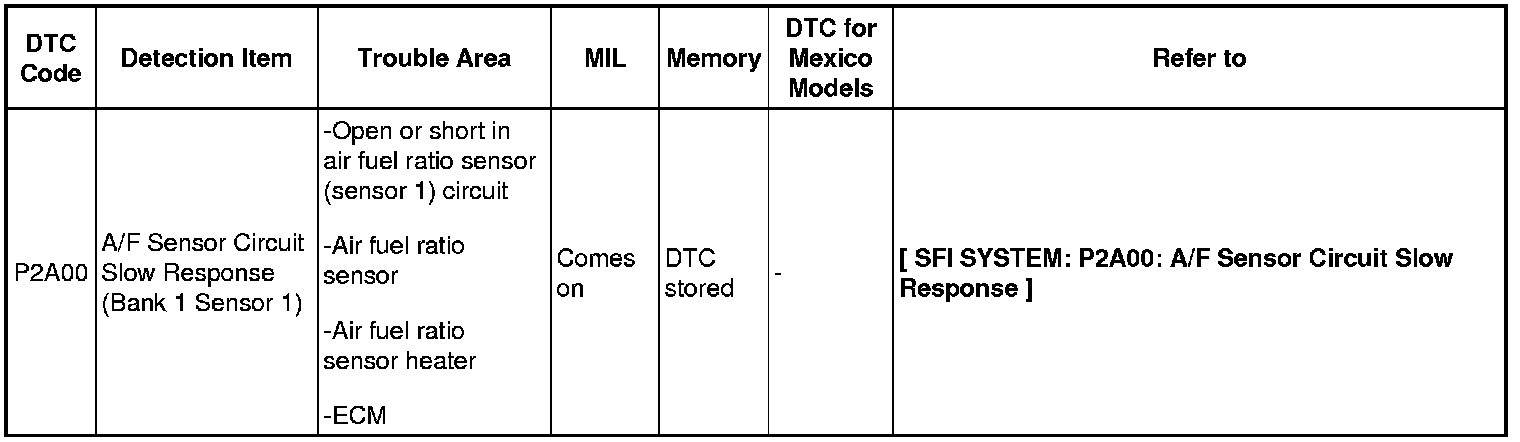

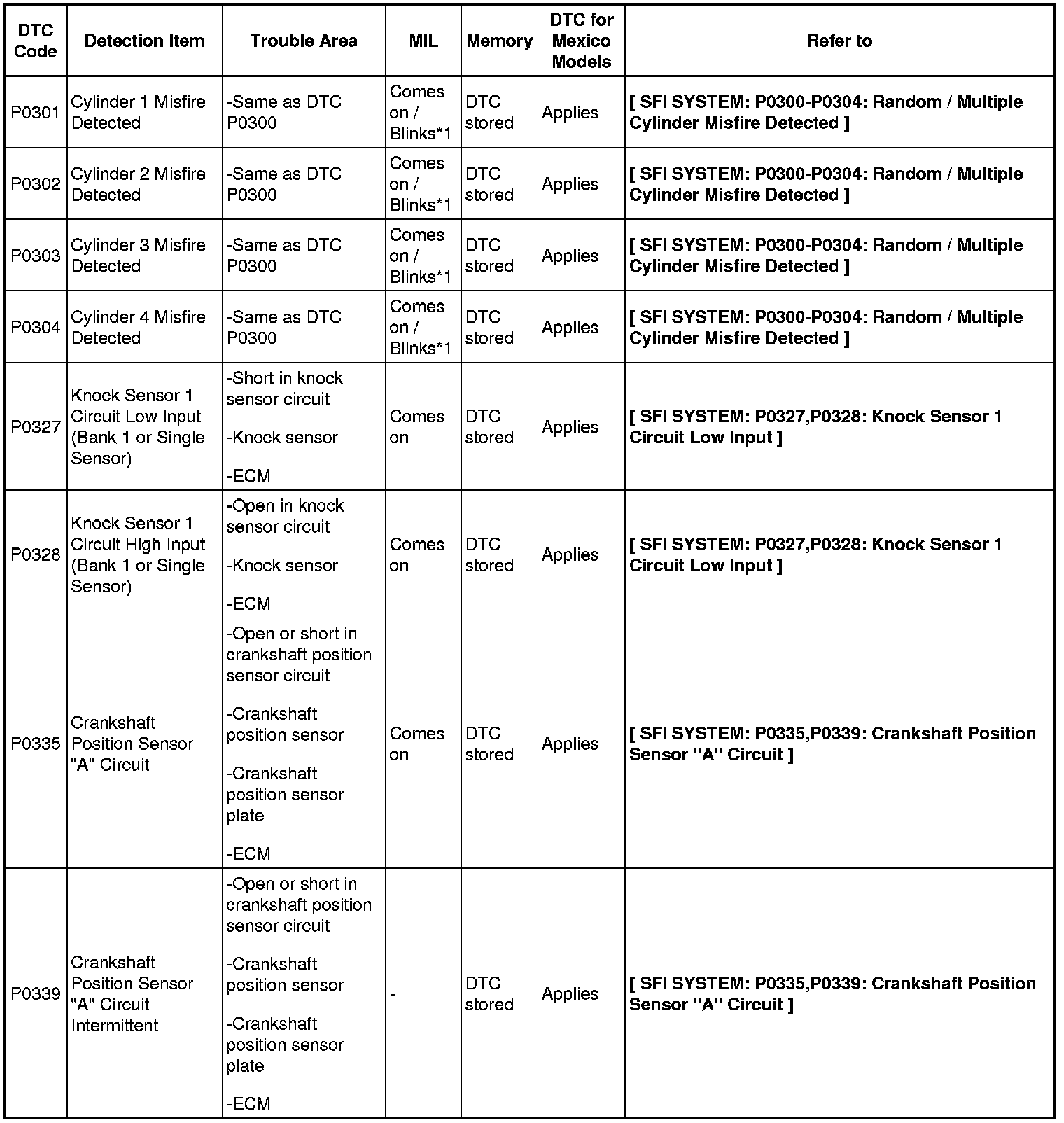

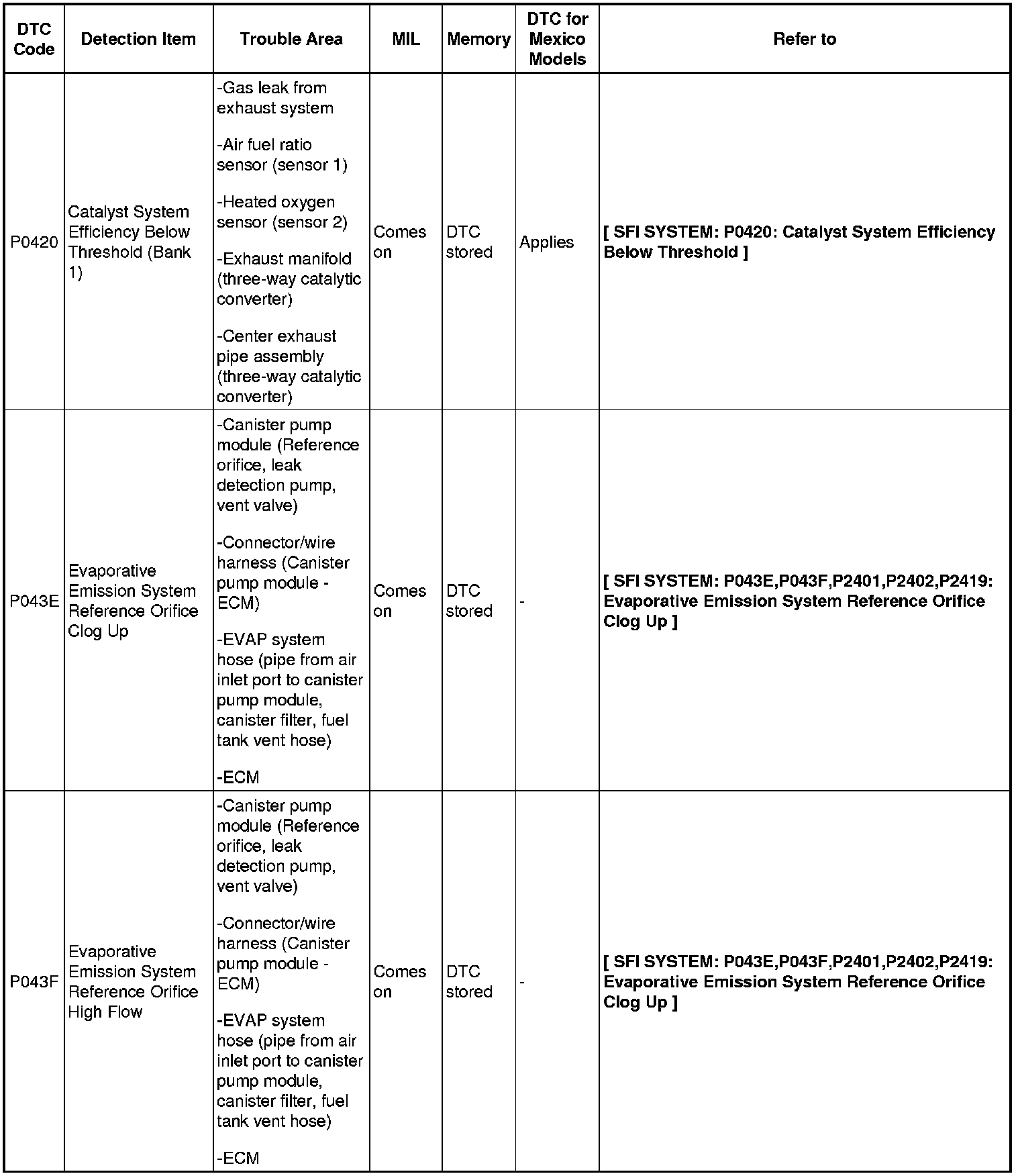

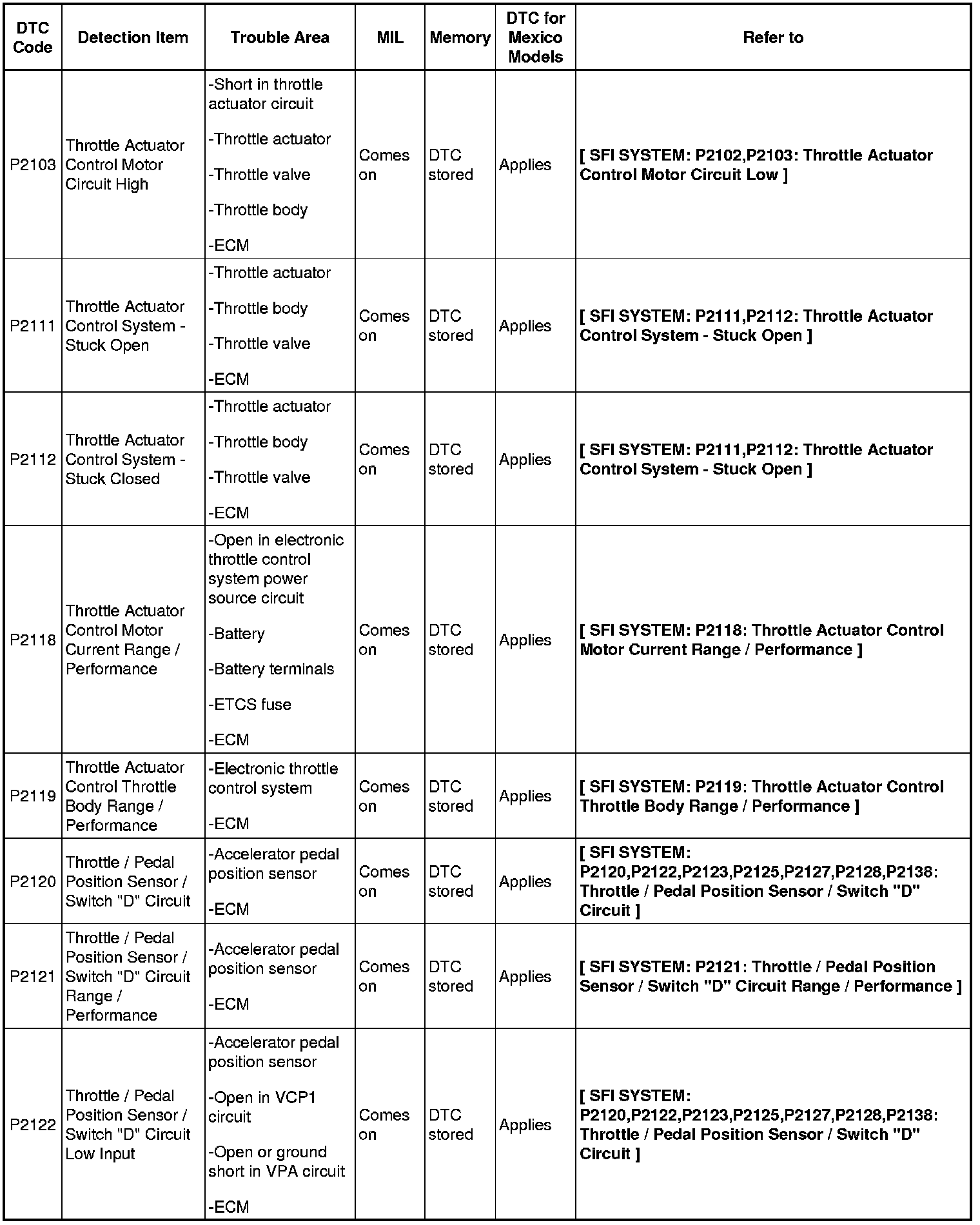

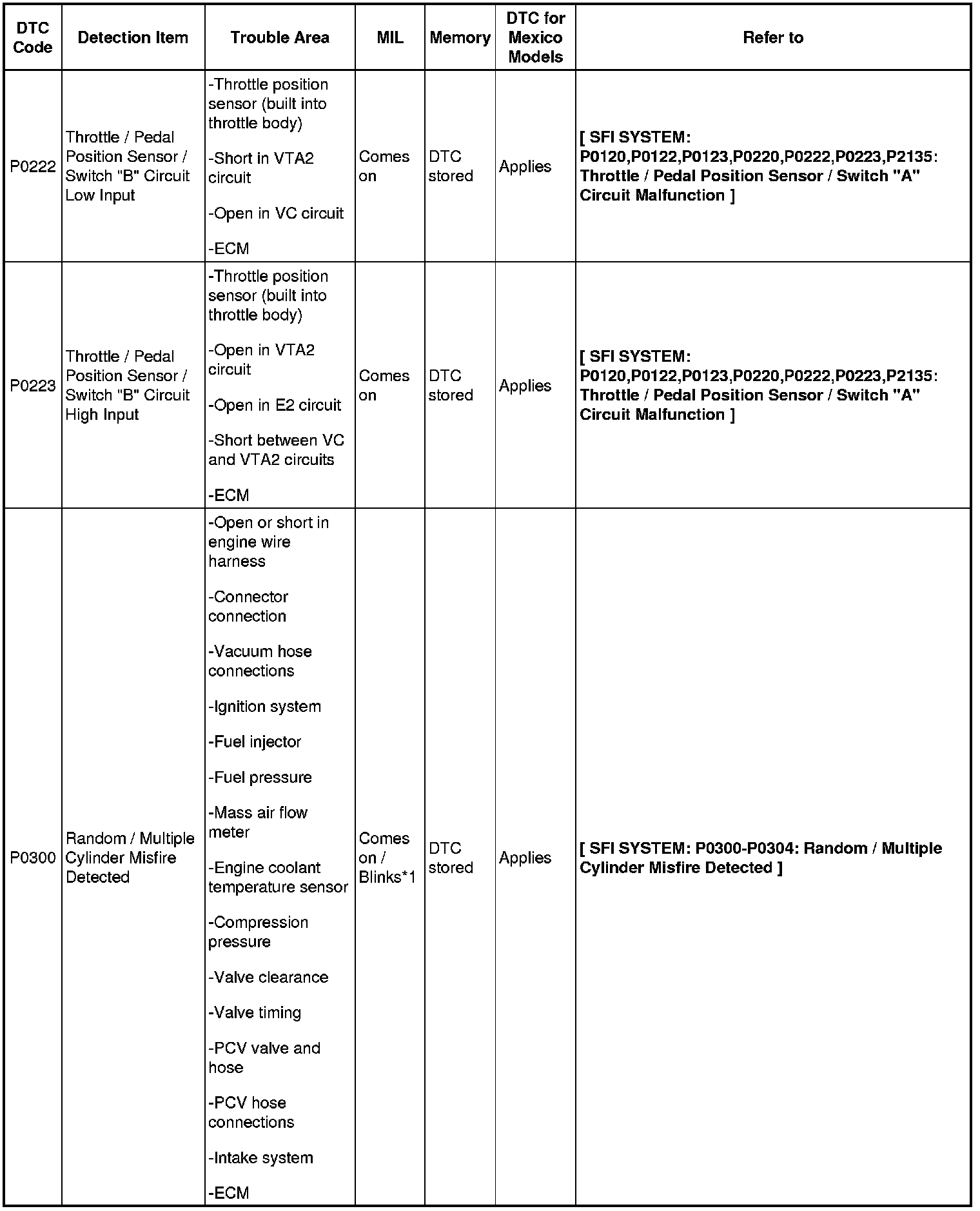

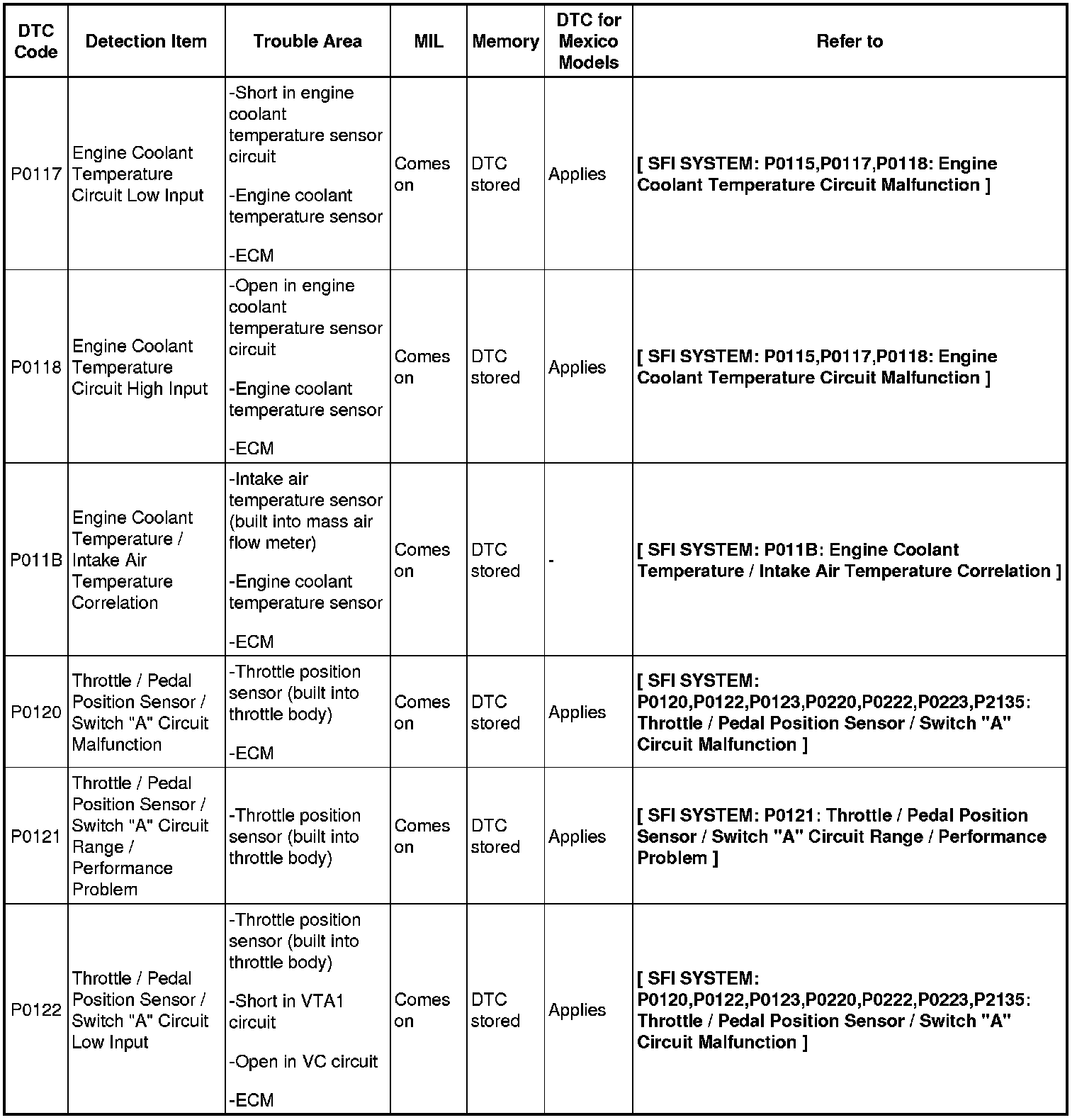

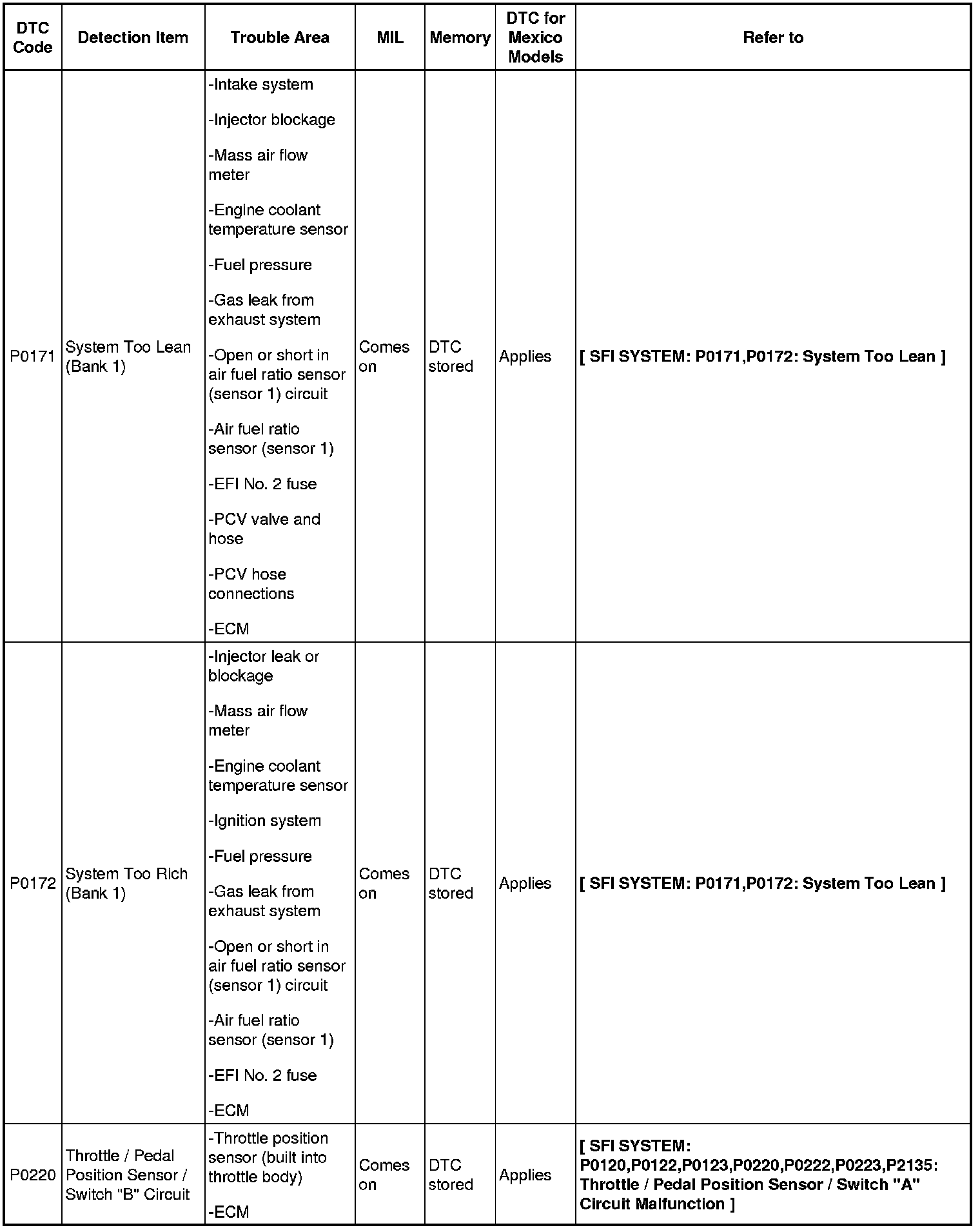

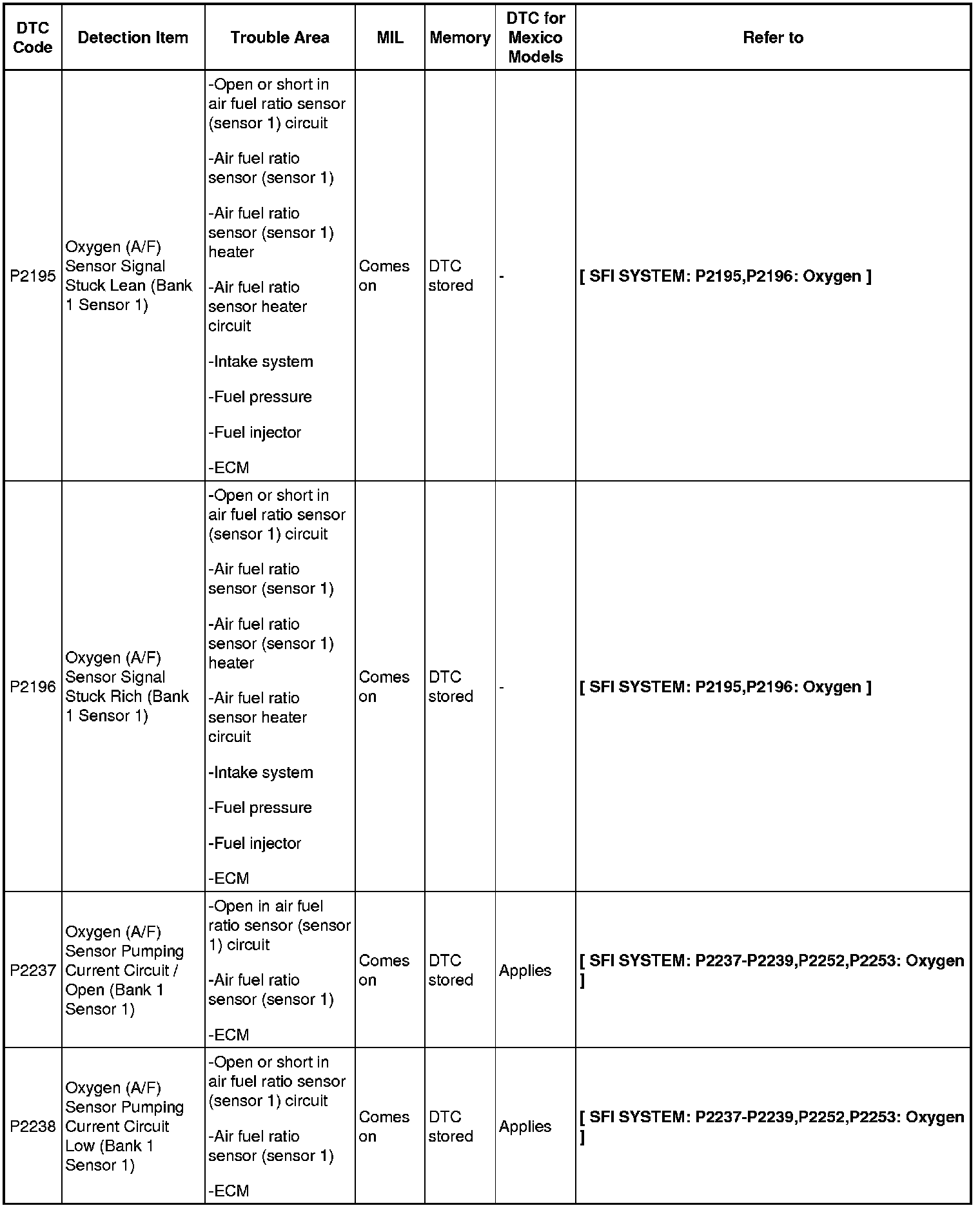

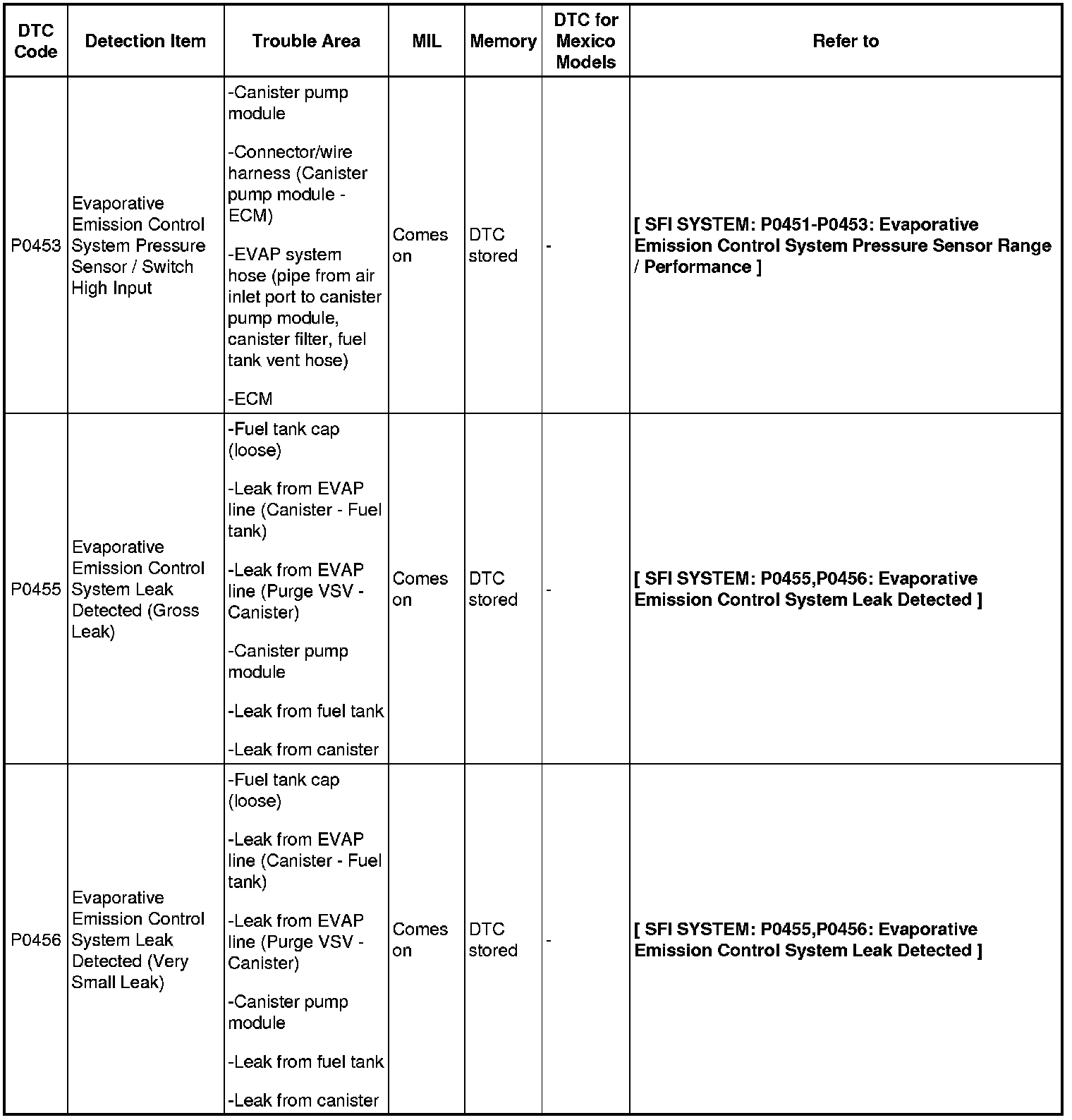

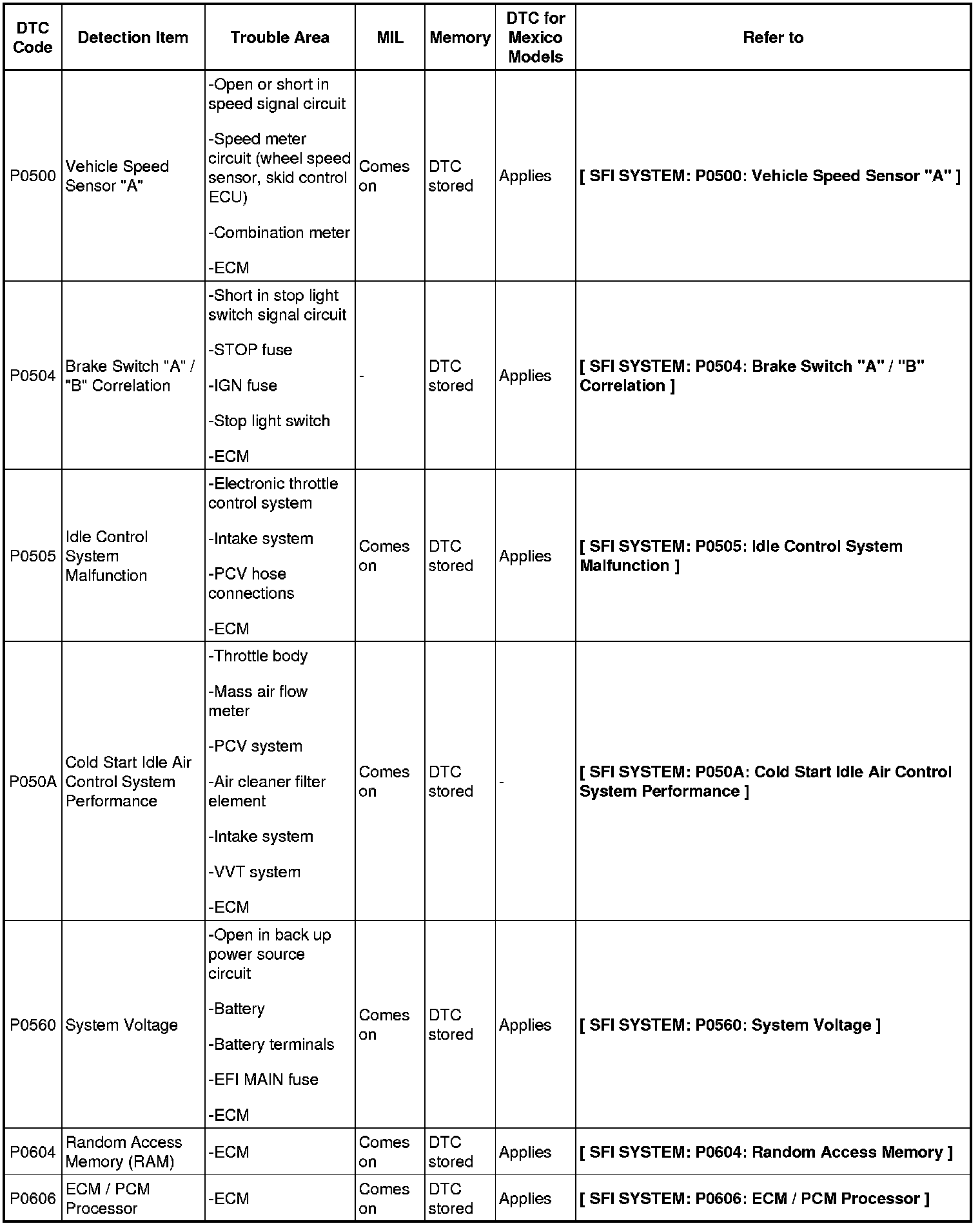

If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table below.
HINT:
- *1: MIL flashes when a catalyst damaging misfire is detected.
- *2: DTC only applies to models for Mexico.
SFI SYSTEM
