Power Steering System

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM (for 2AZ-FE): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below.

Power Steering System

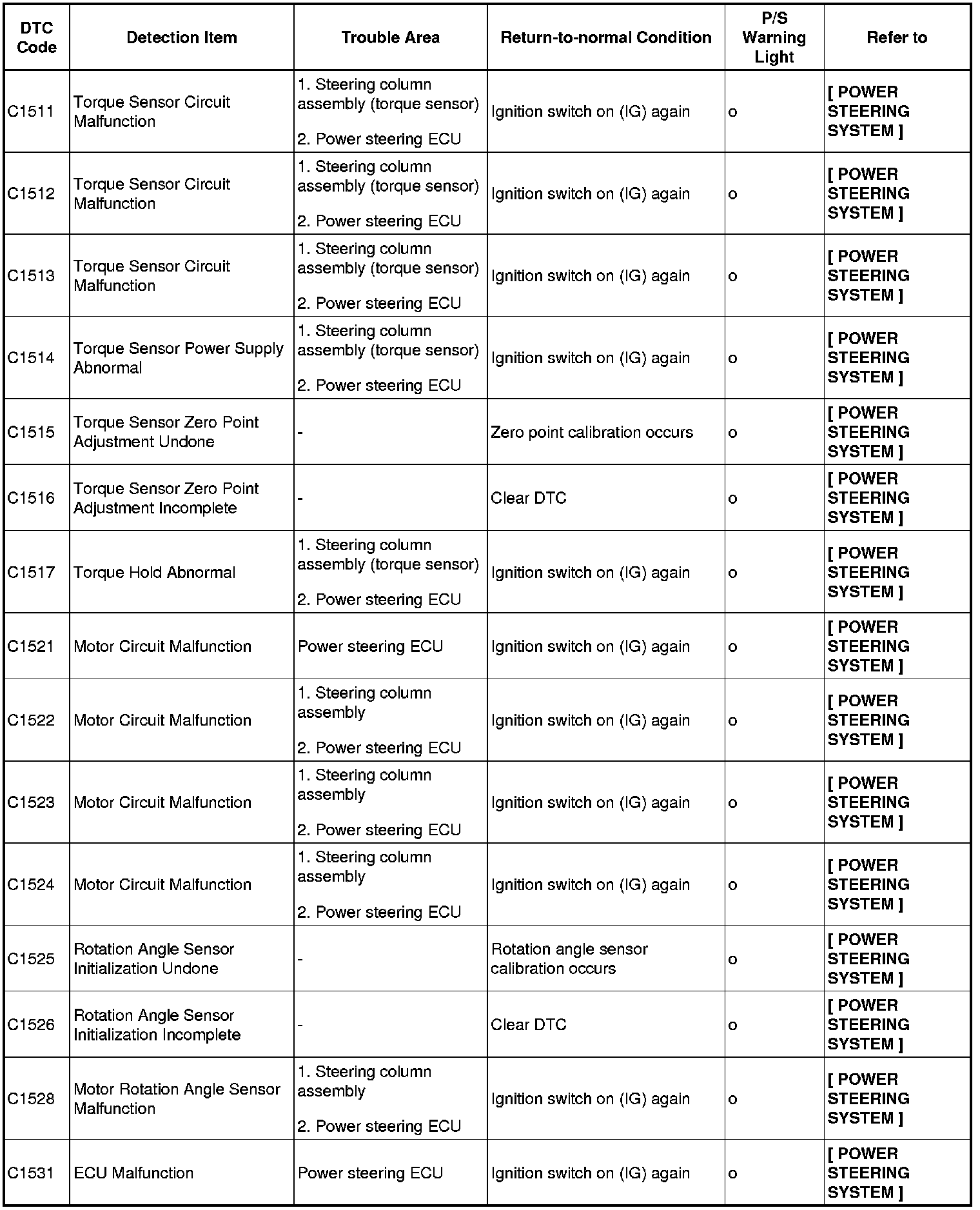

C1511 - C1531:

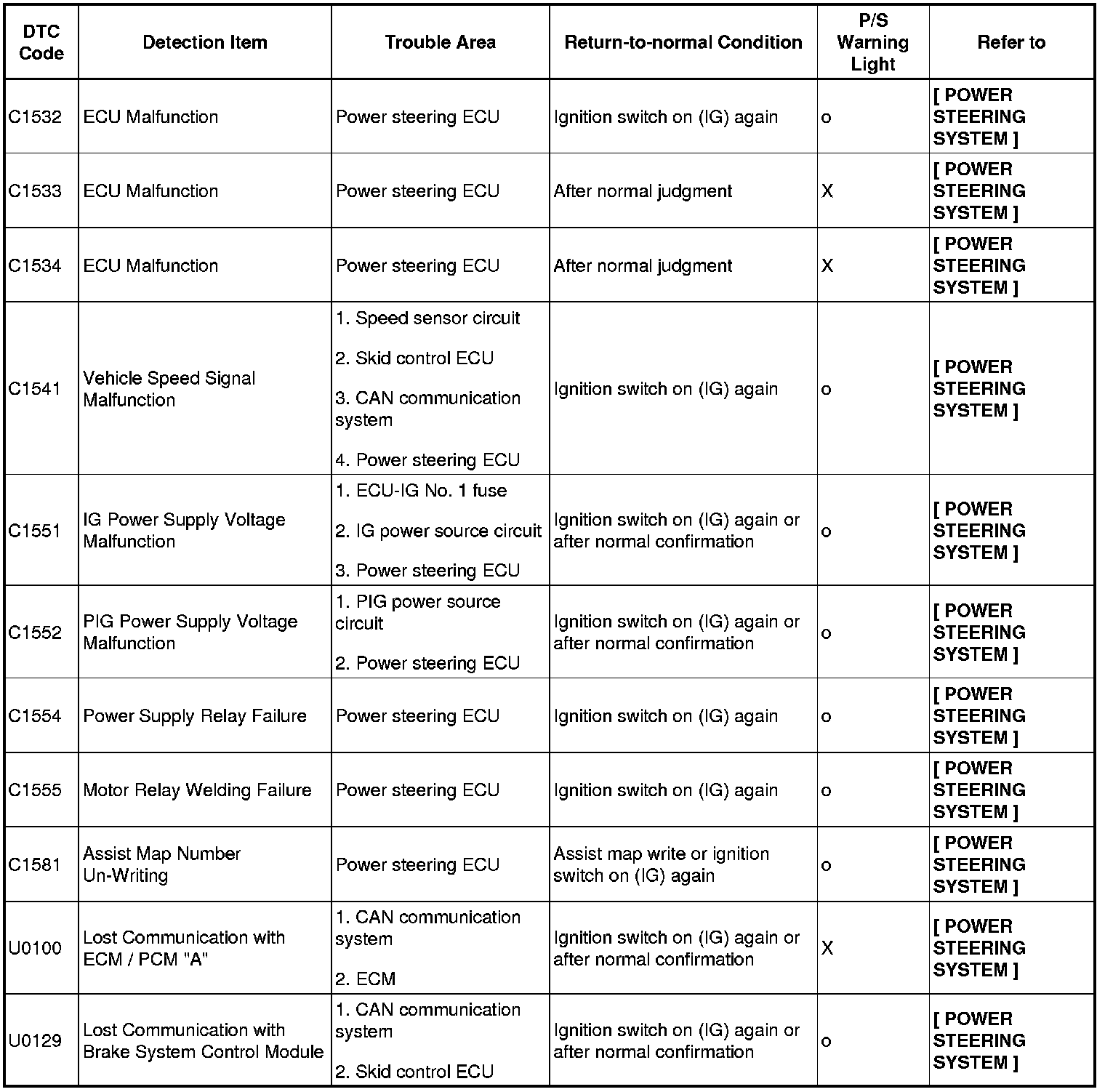

C1532 - C1581 / U0100 - U0129:

HINT:
- o: Warning light comes on
- X: Warning light turns off (normal reset)
