Removal

THEFT DETERRENT / KEYLESS ENTRY: SECURITY INDICATOR LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH Removal
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Removal
5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Removal
6. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Removal
7. REMOVE INSTRUMENT PANEL BOX ASSEMBLY Removal
8. REMOVE INSTRUMENT PANEL HOLE COVER ASSEMBLY Removal
9. REMOVE TELLTALE LIGHT ASSEMBLY

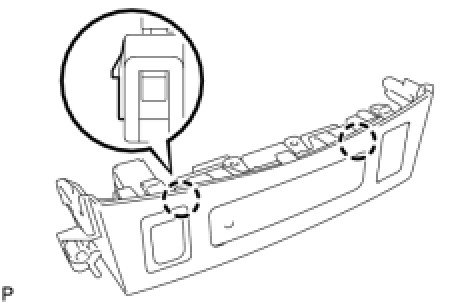

(a) Disengage the 2 claws and remove the telltale light assembly.
