DOOR / HATCH: HOOD LOCK CONTROL CABLE ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE RADIATOR GRILLE PROTECTOR Removal
2. REMOVE NO. 4 ENGINE UNDER COVER (for 2AZ-FE) Removal
3. REMOVE FRONT BUMPER ASSEMBLY Removal
4. REMOVE SIDE MUDGUARD Removal
5. REMOVE FRONT WHEEL
6. REMOVE FRONT FENDER LINER

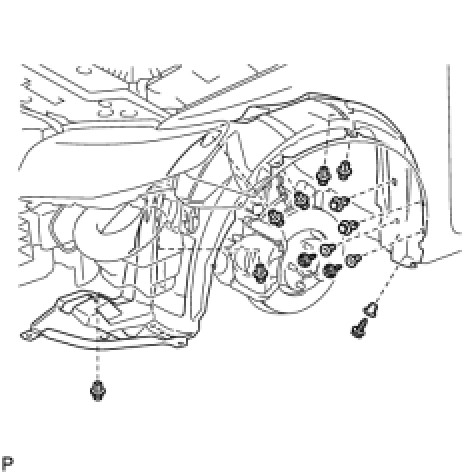

(a) Remove the 8 clips and 3 screws.
(b) Remove the 3 grommets and the front fender liner.
HINT: The grommets need to be replaced with new ones because they will break when they are removed.

7. REMOVE HOOD LOCK ASSEMBLY

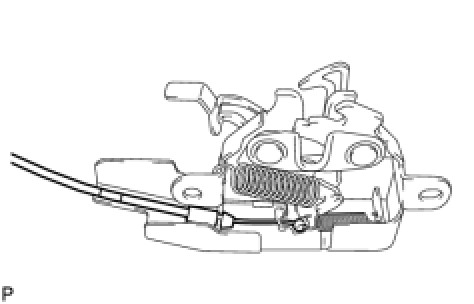

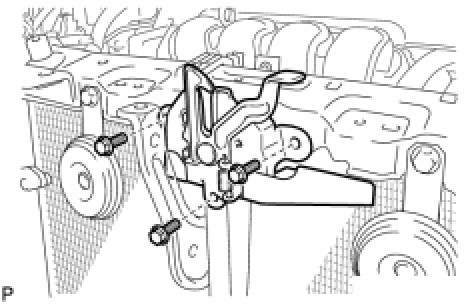

(a) Remove the 3 bolts from the hood lock assembly.





(b) Disconnect the hood lock control cable and remove the hood lock assembly.

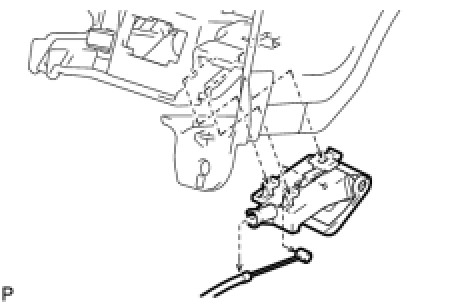

8. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY





(a) Disconnect the hood lock control cable and remove the hood lock control lever.
9. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

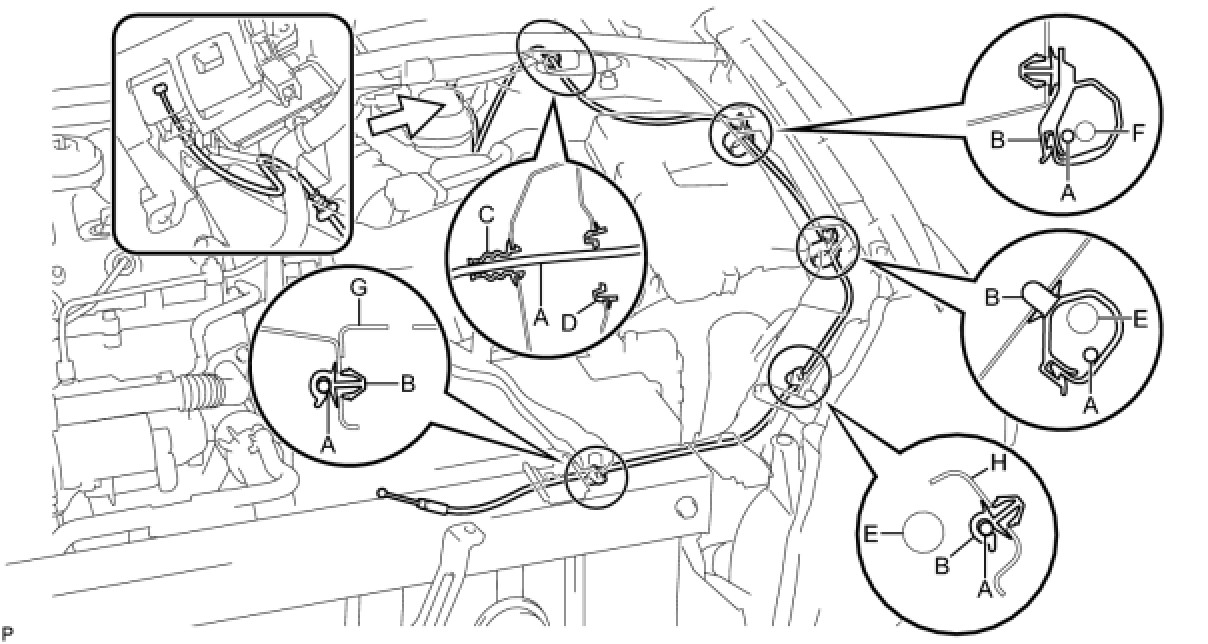

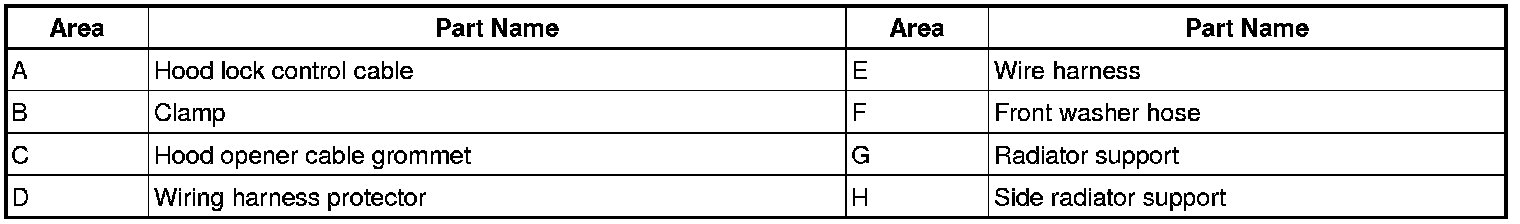

(a) Using a screwdriver, disconnect the clamps shown in the illustration.









HINT: Tape the screwdriver tip before use.

(b) Pull the cable from the engine compartment and remove it.
