Installation

EXTERIOR PANELS / TRIM: SIDE MUDGUARD: INSTALLATION

INSTALLATION
HINT:
- Use the same procedure for the RH side and LH side.
- The procedure listed below is for the LH side.

1. INSTALL SIDE MUDGUARD

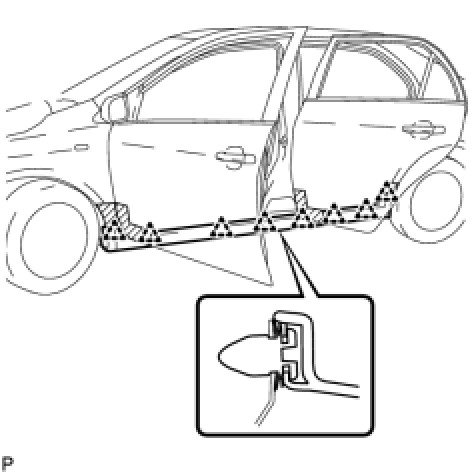

(a) Engage the 8 clips and install the side mudguard.

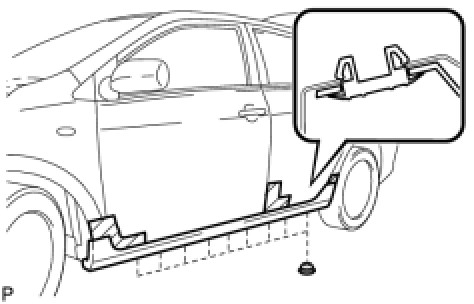

(b) Install the 9 retainers.

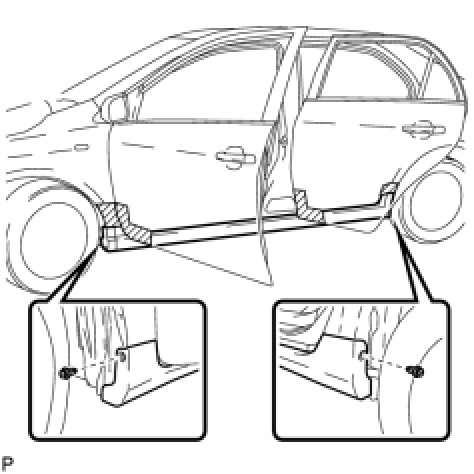

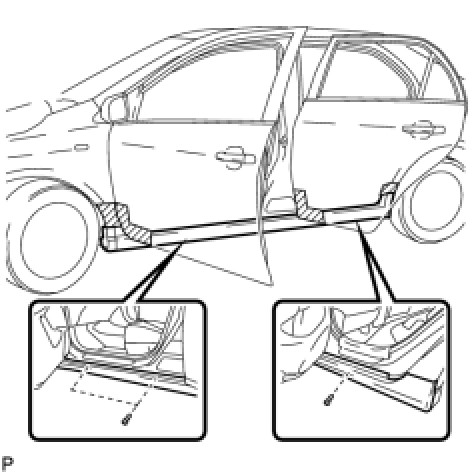

(c) Install the 3 screws.





(d) Install the 2 clips.
