Cruise Control (Except TMC Made)

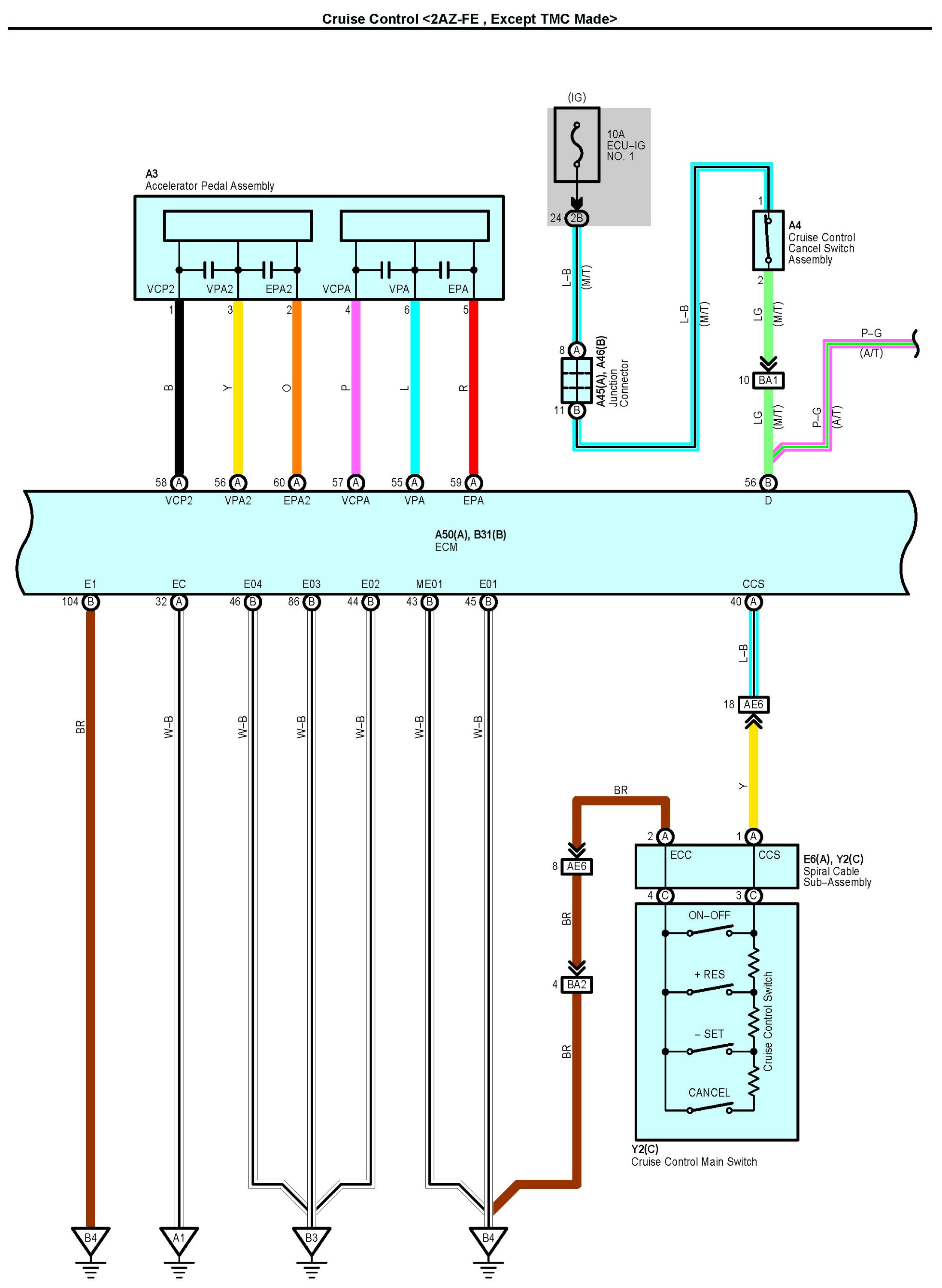

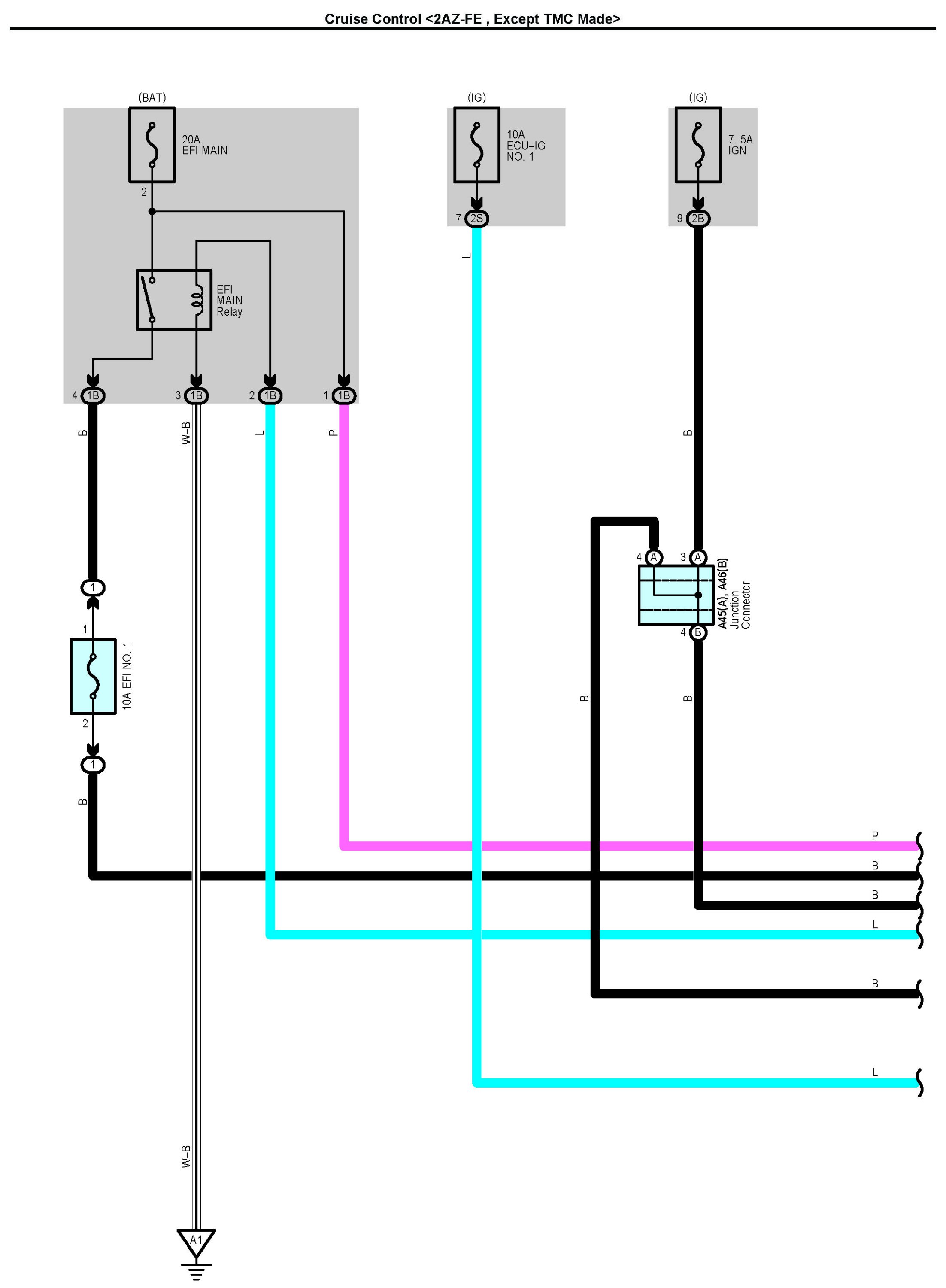

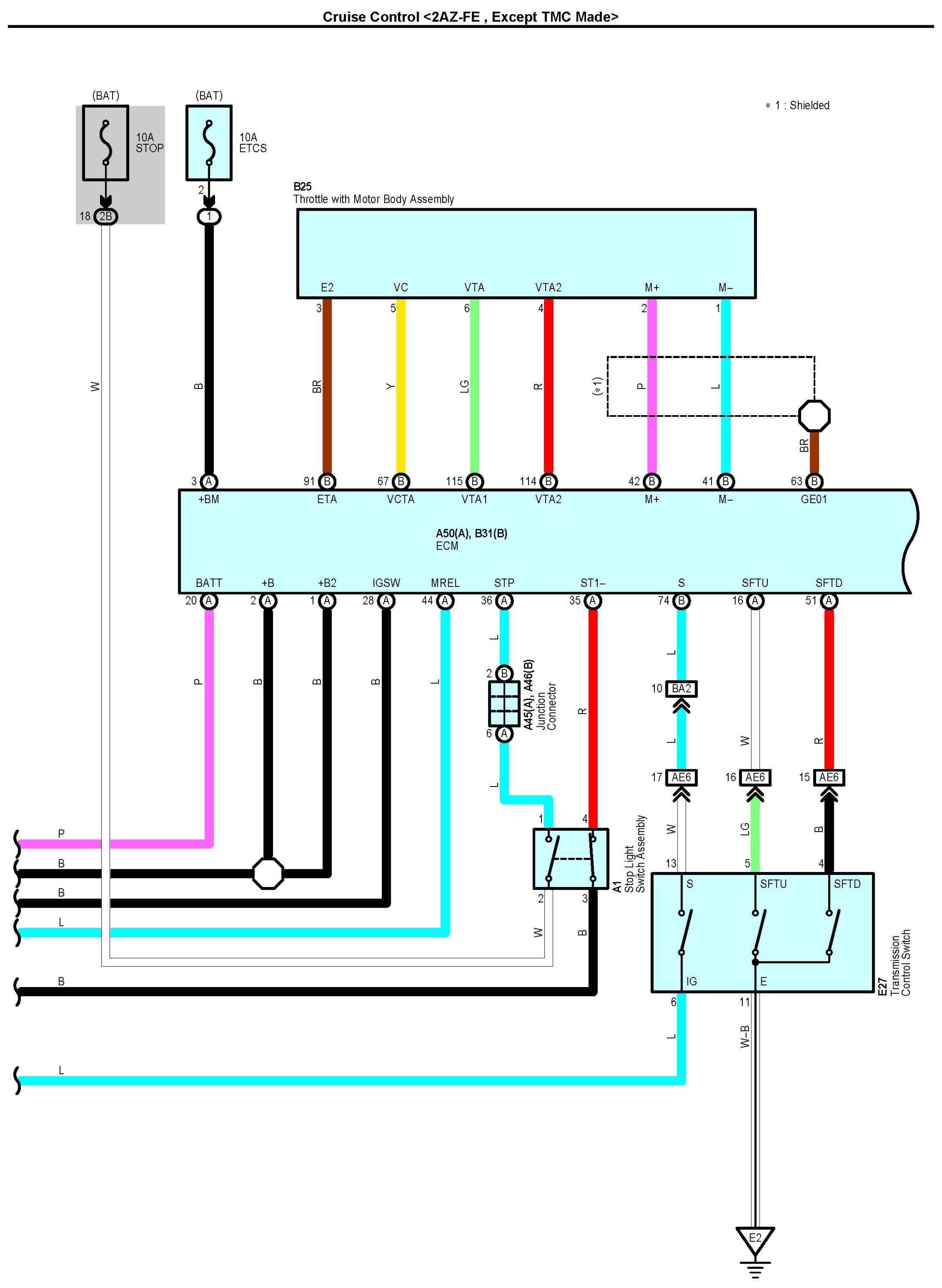

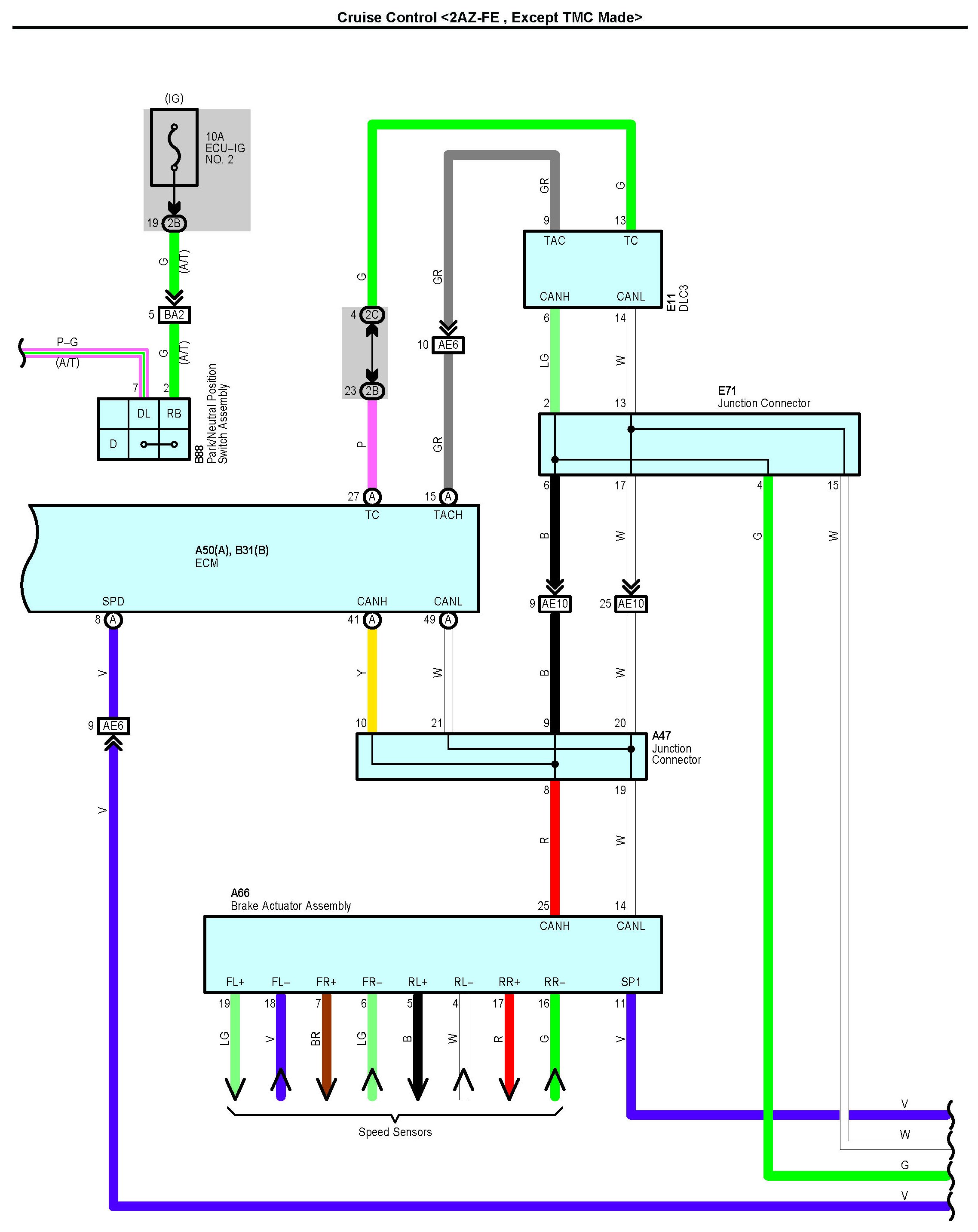

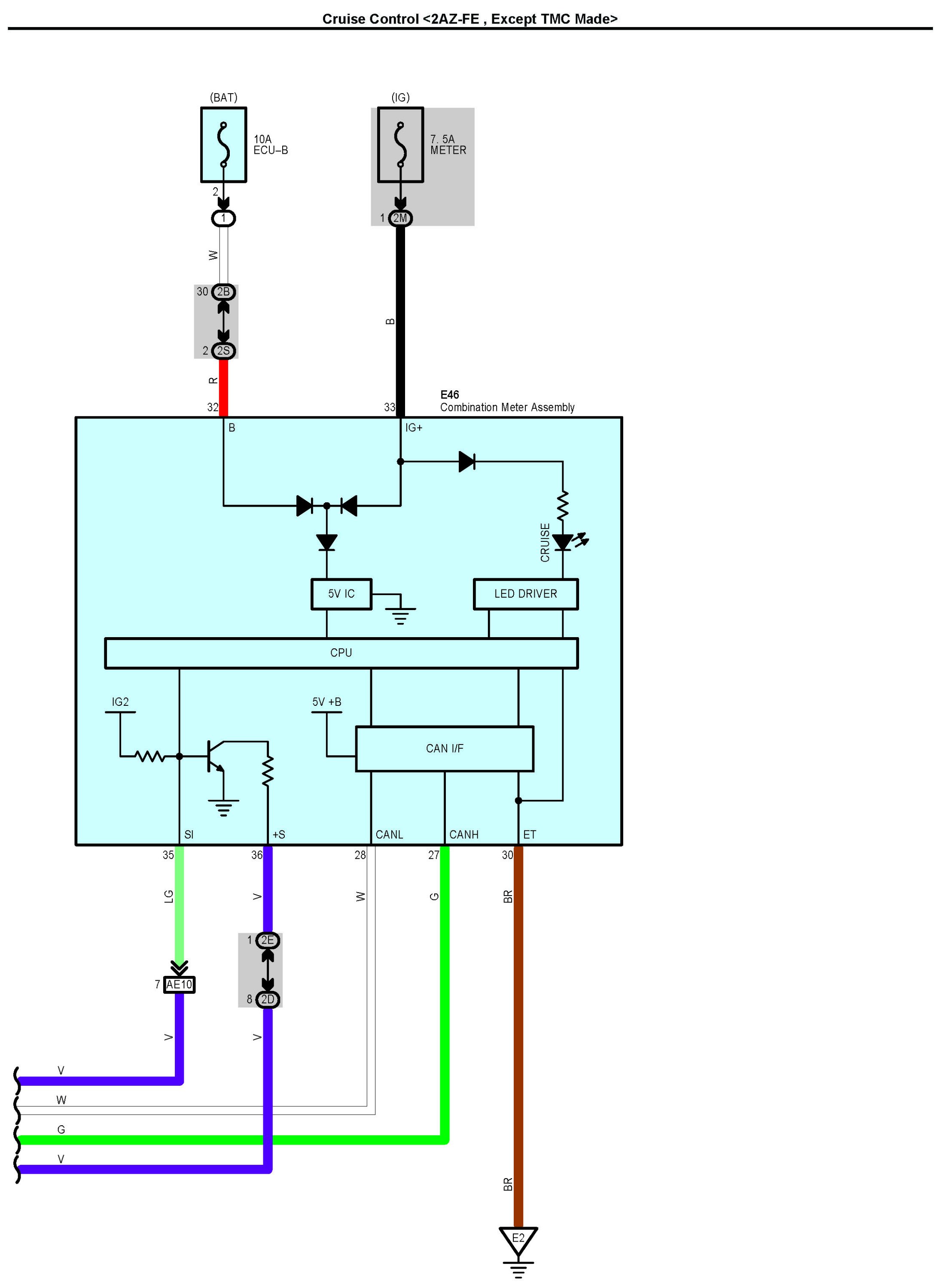

Cruise Control <Except TMC Made> Part 1:

Cruise Control <Except TMC Made> Part 2:

Cruise Control <Except TMC Made> Part 3:

Cruise Control <Except TMC Made> Part 4:

Cruise Control <Except TMC Made> Part 5:

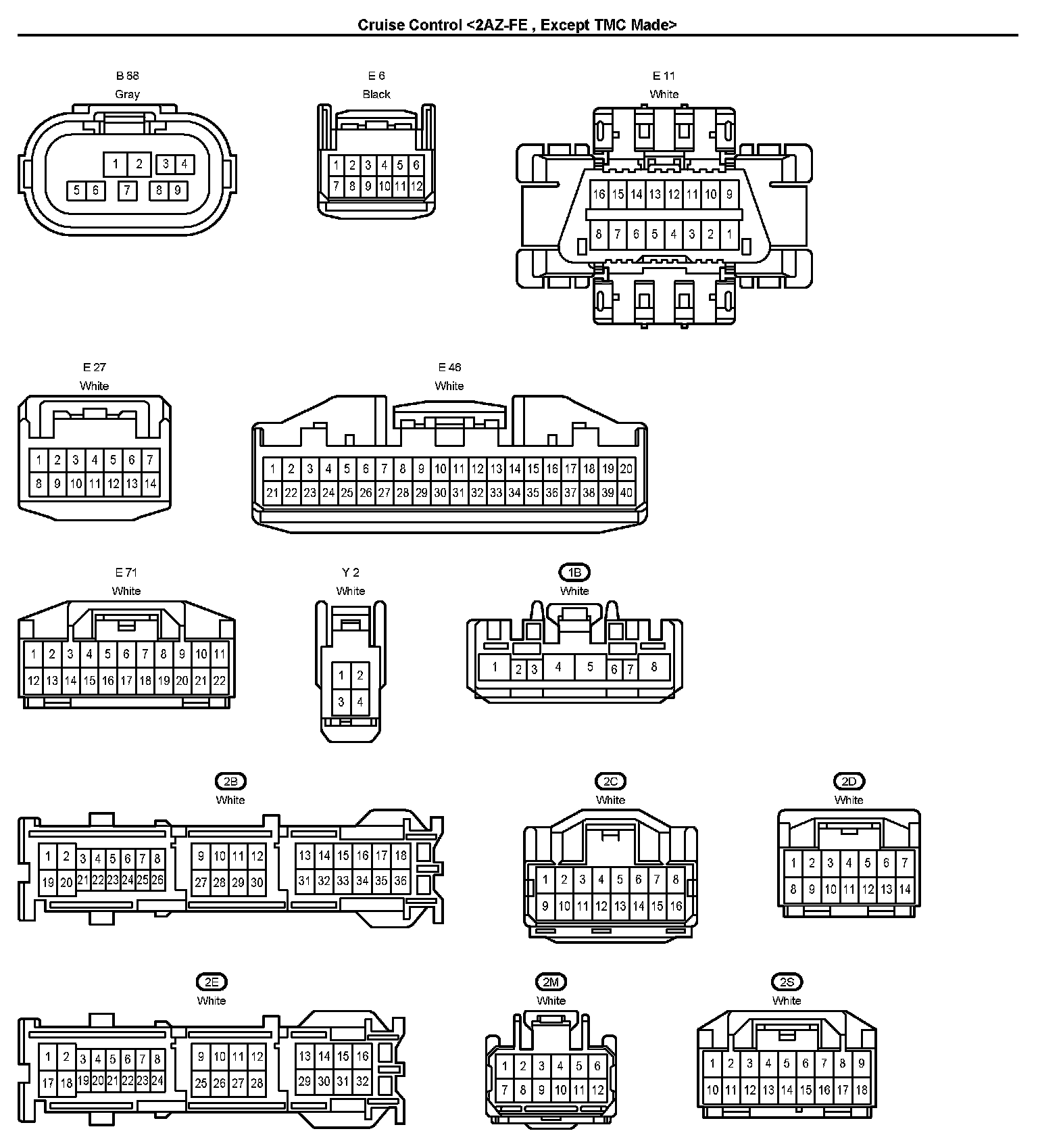

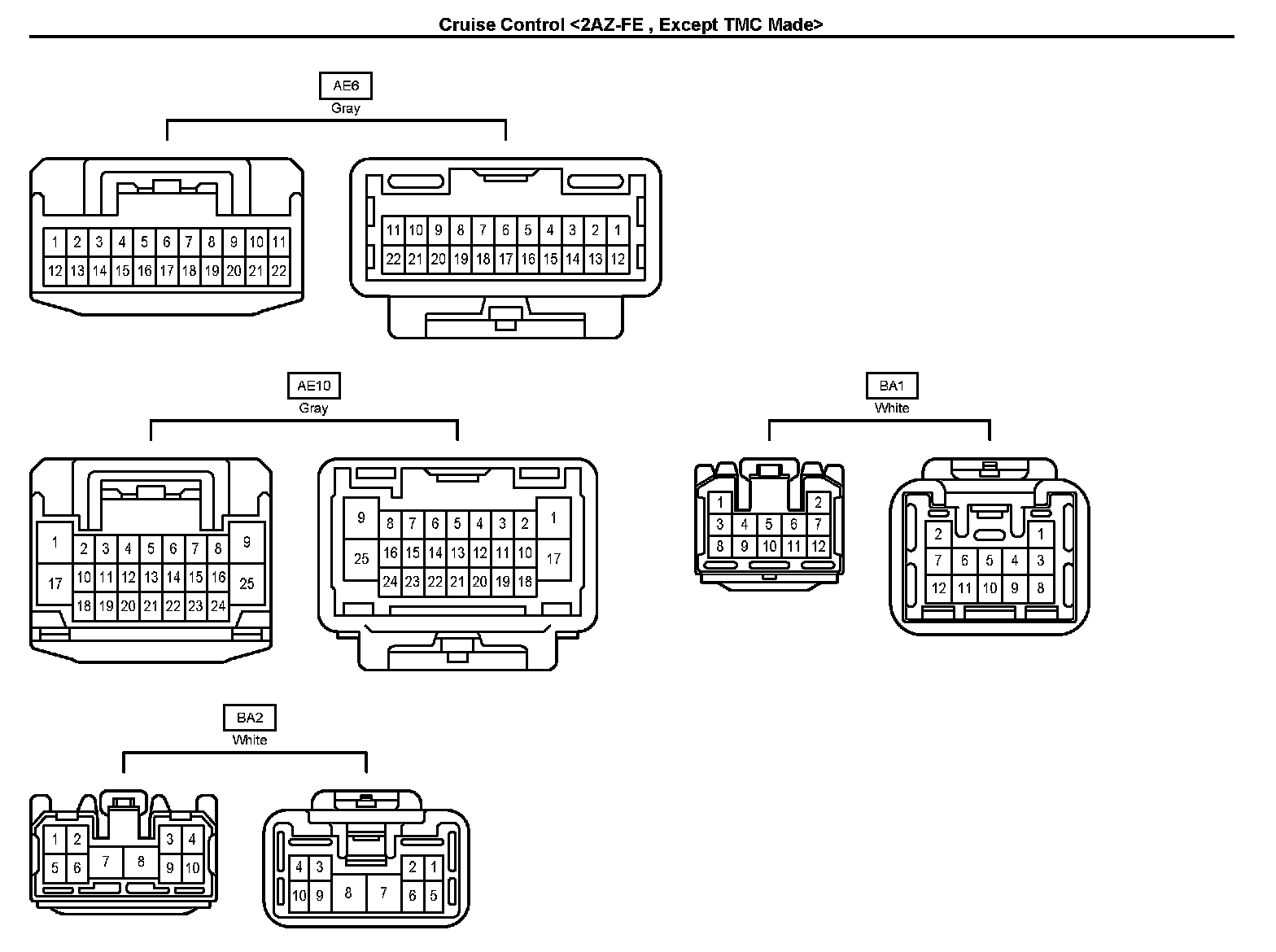

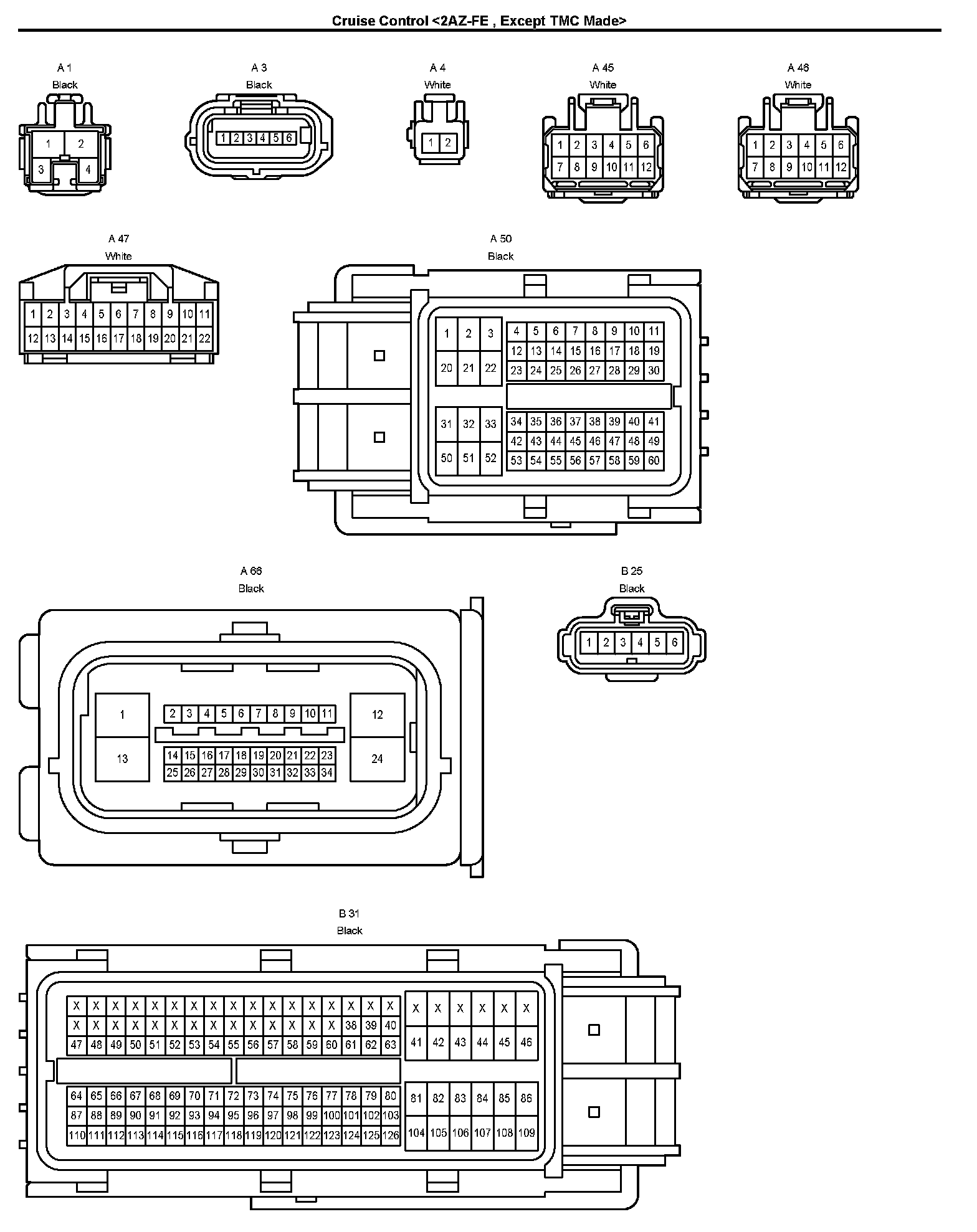

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
