Cigarette Lighter (Except TMC Made)

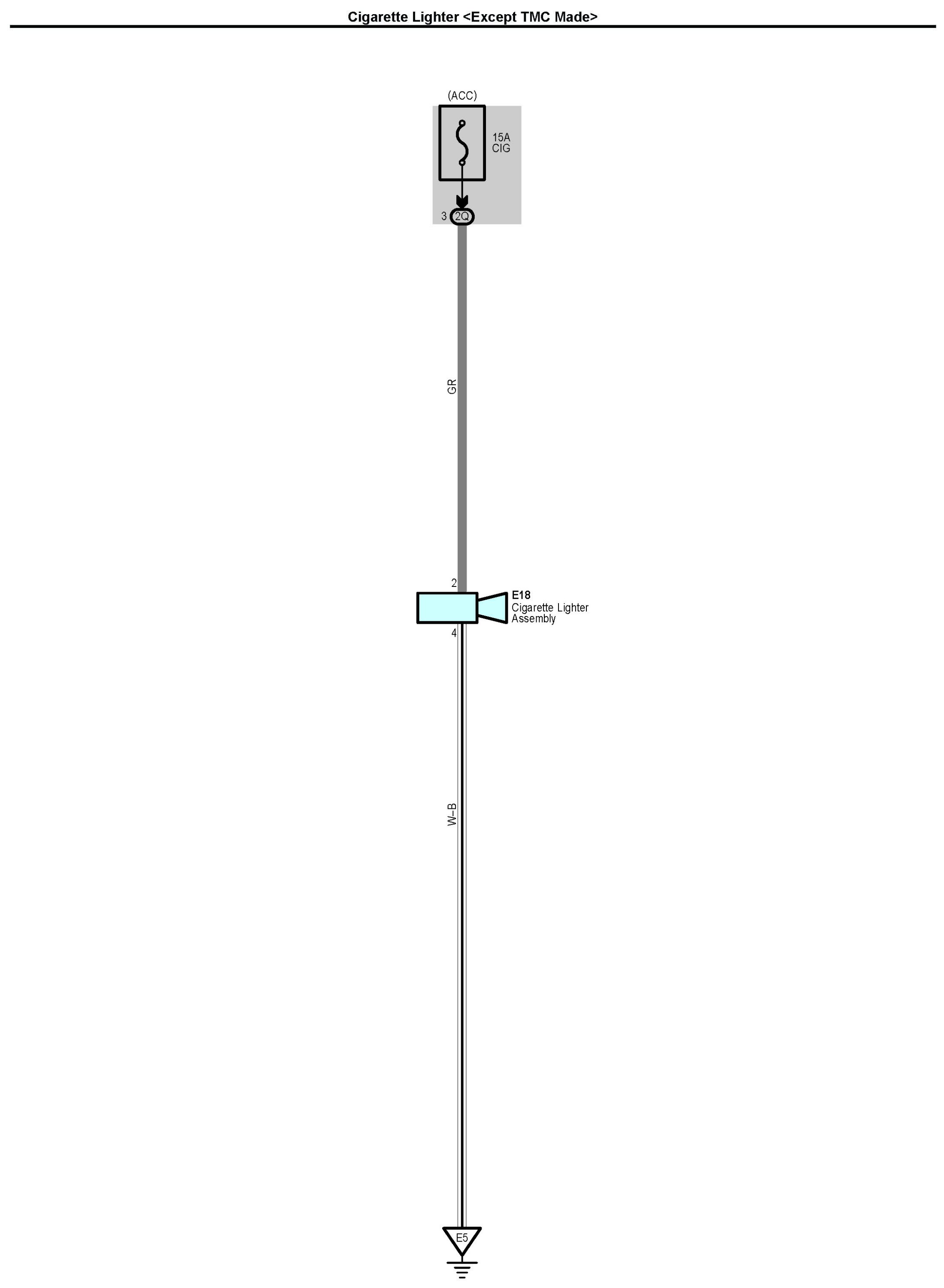

Cigarette Lighter <Except TMC Made>:

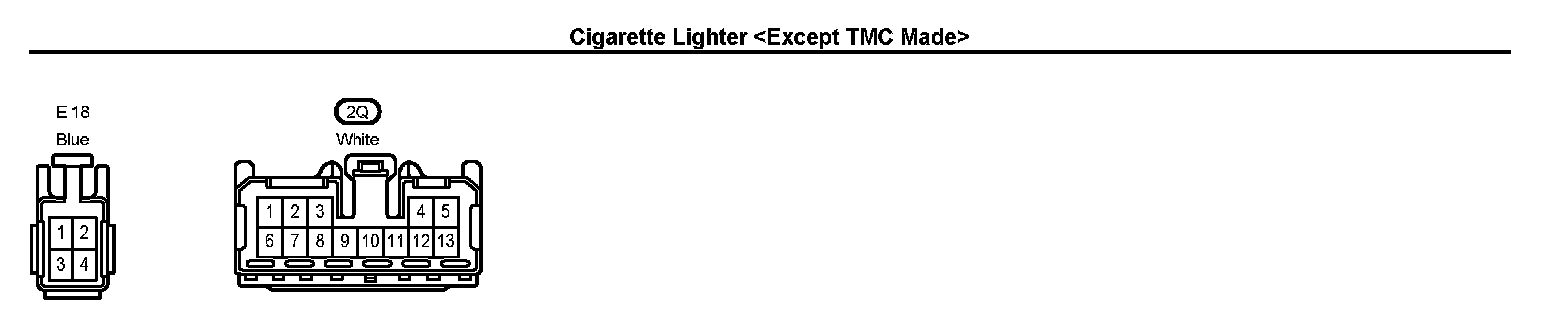

Connectors:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
