Removal

2AZ-FE ENGINE MECHANICAL: ENGINE UNIT: REMOVAL

REMOVAL

1. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY Removal
2. REMOVE FUEL INJECTOR ASSEMBLY Removal
3. REMOVE INTAKE MANIFOLD Removal

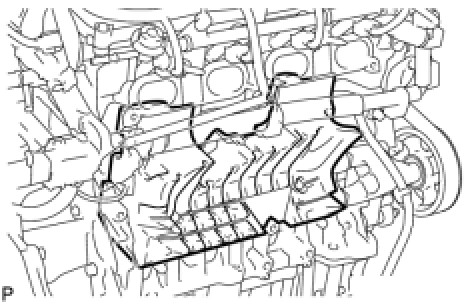

4. REMOVE NO. 1 INTAKE MANIFOLD INSULATOR





(a) Remove the No. 1 intake manifold insulator.
5. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR Removal
6. REMOVE MANIFOLD STAY Removal
7. REMOVE NO. 2 MANIFOLD STAY Removal
8. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY Removal
9. REMOVE INLET WATER Removal
10. REMOVE THERMOSTAT Removal
11. REMOVE ENGINE OIL LEVEL DIPSTICK
12. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE Removal

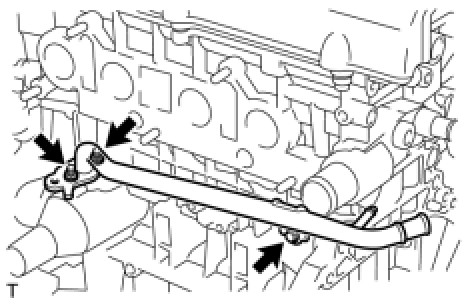

13. REMOVE NO. 1 WATER BY-PASS PIPE





(a) Remove the bolt and 2 nuts, then remove the No. 1 water by-pass pipe.
(b) Remove the gasket.
14. REMOVE IGNITION COIL ASSEMBLY Removal
15. REMOVE KNOCK SENSOR Removal
16. REMOVE OIL PRESSURE SWITCH Removal
17. REMOVE ENGINE COOLANT TEMPERATURE SENSOR Removal

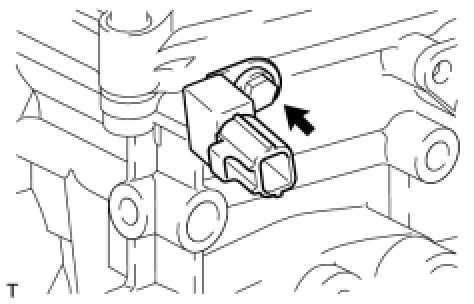

18. REMOVE RADIO SETTING CONDENSER





(a) Remove the bolt and radio setting condenser.
