Removal

E351 MANUAL TRANSMISSION / TRANSAXLE: BACK-UP LIGHT SWITCH: REMOVAL

REMOVAL

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal
2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
3. REMOVE AIR CLEANER CASE Removal

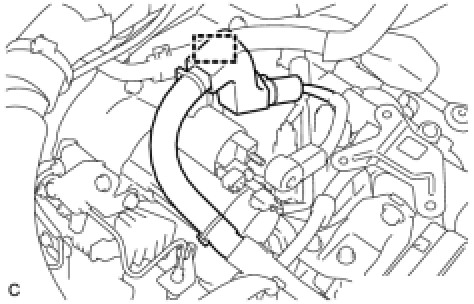

4. DISCONNECT WIRE HARNESS





(a) Disconnect the terminal 50 connector from the starter assembly.
(b) Remove the nut and disconnect the wire harness from terminal 30.





(c) Disconnect the wire harness clamp.

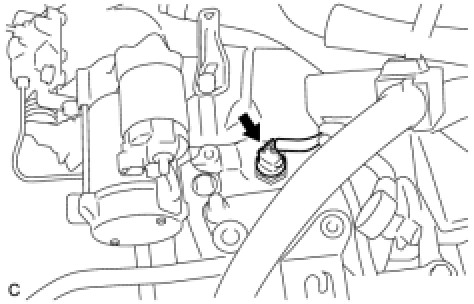

5. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY





(a) Disconnect the back-up light switch connector.

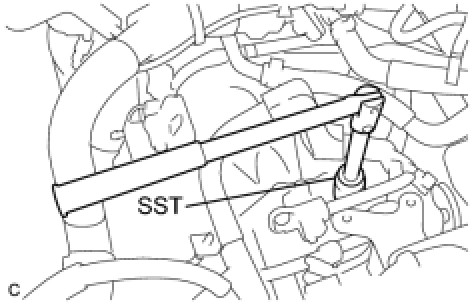

(b) Using SST, remove the back-up light switch and gasket from the transaxle case.
SST: 09817-16011
