Removal

LIGHTING (EXT): HAZARD WARNING SWITCH: REMOVAL

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH Removal
3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
5. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY Removal
6. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

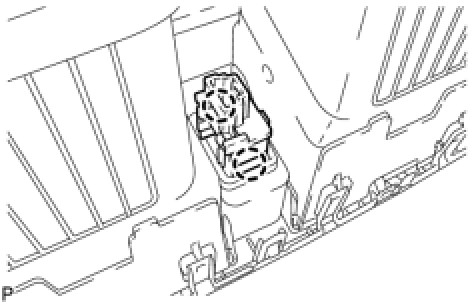

(a) Disengage the 2 claws and remove the hazard warning signal switch assembly.
