Removal

2AZ-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

REMOVAL

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal
2. DRAIN ENGINE COOLANT Service and Repair
3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Removal
4. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal
5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

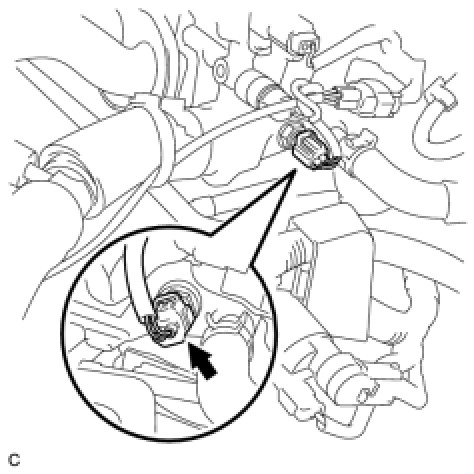

(a) Disconnect the engine coolant temperature sensor connector.

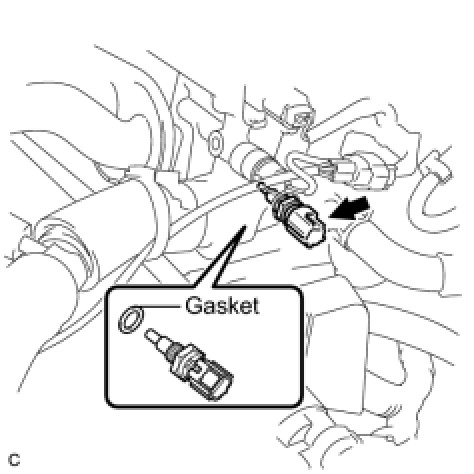

(b) Remove the engine coolant temperature sensor and gasket.
