2AZ-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE V-RIBBED BELT Removal
4. REMOVE GENERATOR ASSEMBLY Removal

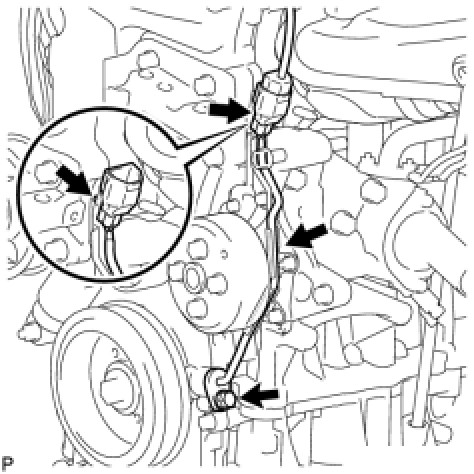

5. REMOVE CRANK POSITION SENSOR





(a) Disconnect the crank position sensor connector.
(b) Separate the crank position sensor connector clamp and wire harness.
(c) Remove the bolt and crank position sensor.
