Heated Oxygen Sensor

2AZ-FE ENGINE CONTROL: HEATED OXYGEN SENSOR: INSPECTION

INSPECTION

1. INSPECT HEATED OXYGEN SENSOR





(a) Check the resistance.

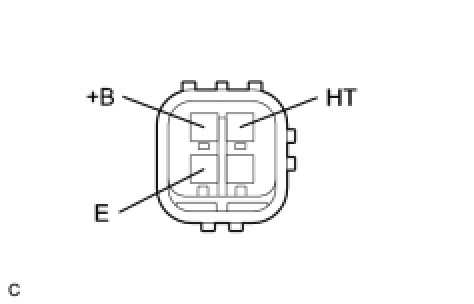

(1) Using an ohmmeter, measure the resistance between the terminals.

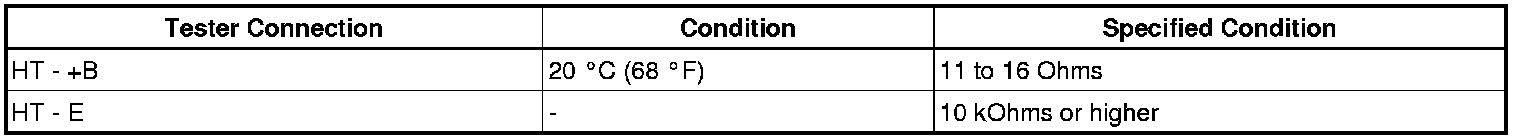

Standard Resistance:






If the resistance is not as specified, replace the heated oxygen sensor.
