Engine Control (Except TMC Made)

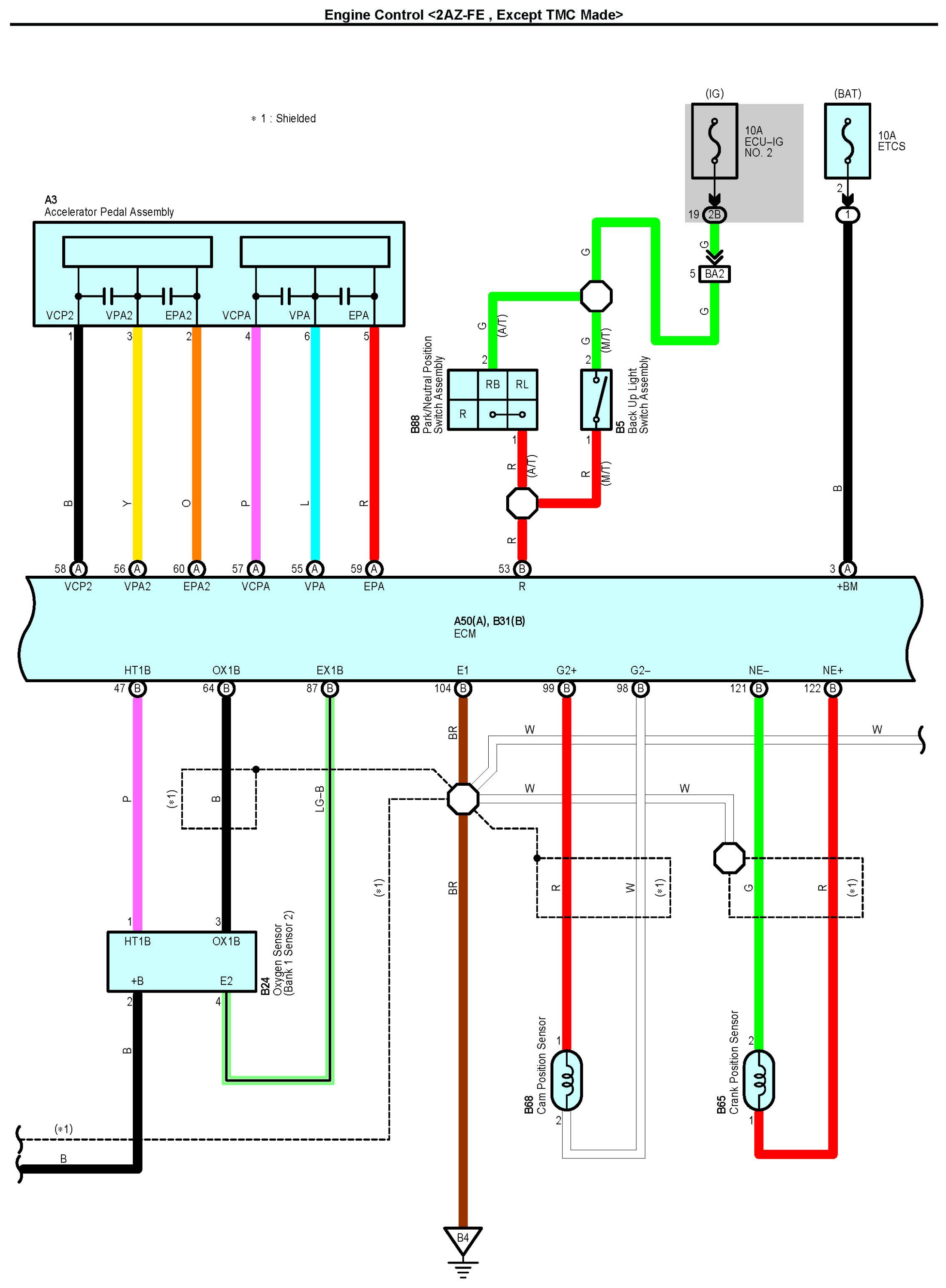

Engine Control <Except TMC Made> Part 6:

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Next Diagram: Engine Control Part 7

Previous Diagram: Engine Control Part 5

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
