Installation

2AZ-FE ENGINE CONTROL: INTEGRATION RELAY: INSTALLATION

INSTALLATION

1. INSTALL INTEGRATION RELAY





(a) Connect the 3 connectors.

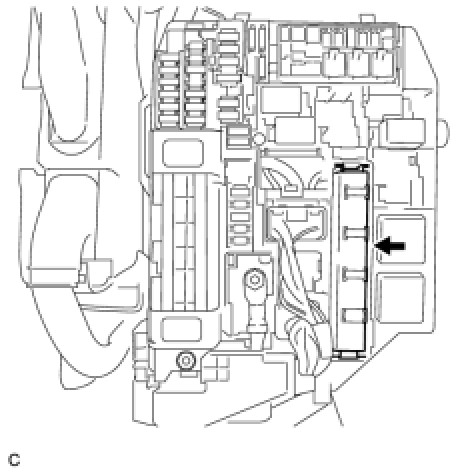

(b) Attach the integration relay to the engine room relay block.
2. INSTALL NO. 1 RELAY BLOCK COVER
