2AZ-FE ENGINE CONTROL: IGNITION COIL AND SPARK PLUG: INSTALLATION

INSTALLATION

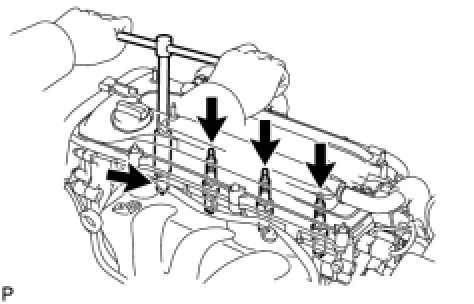

1. INSTALL SPARK PLUG





(a) Install the 4 spark plugs.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)

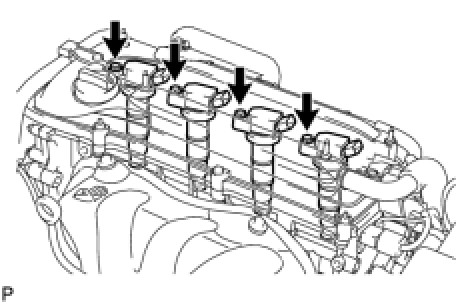

2. INSTALL IGNITION COIL ASSEMBLY





(a) Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

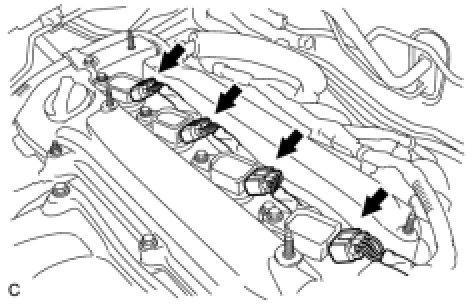

(b) Connect the 4 ignition coil connectors.
3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
