Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Corolla L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Knock Sensor
>>
Service and Repair
>>
Components
Components

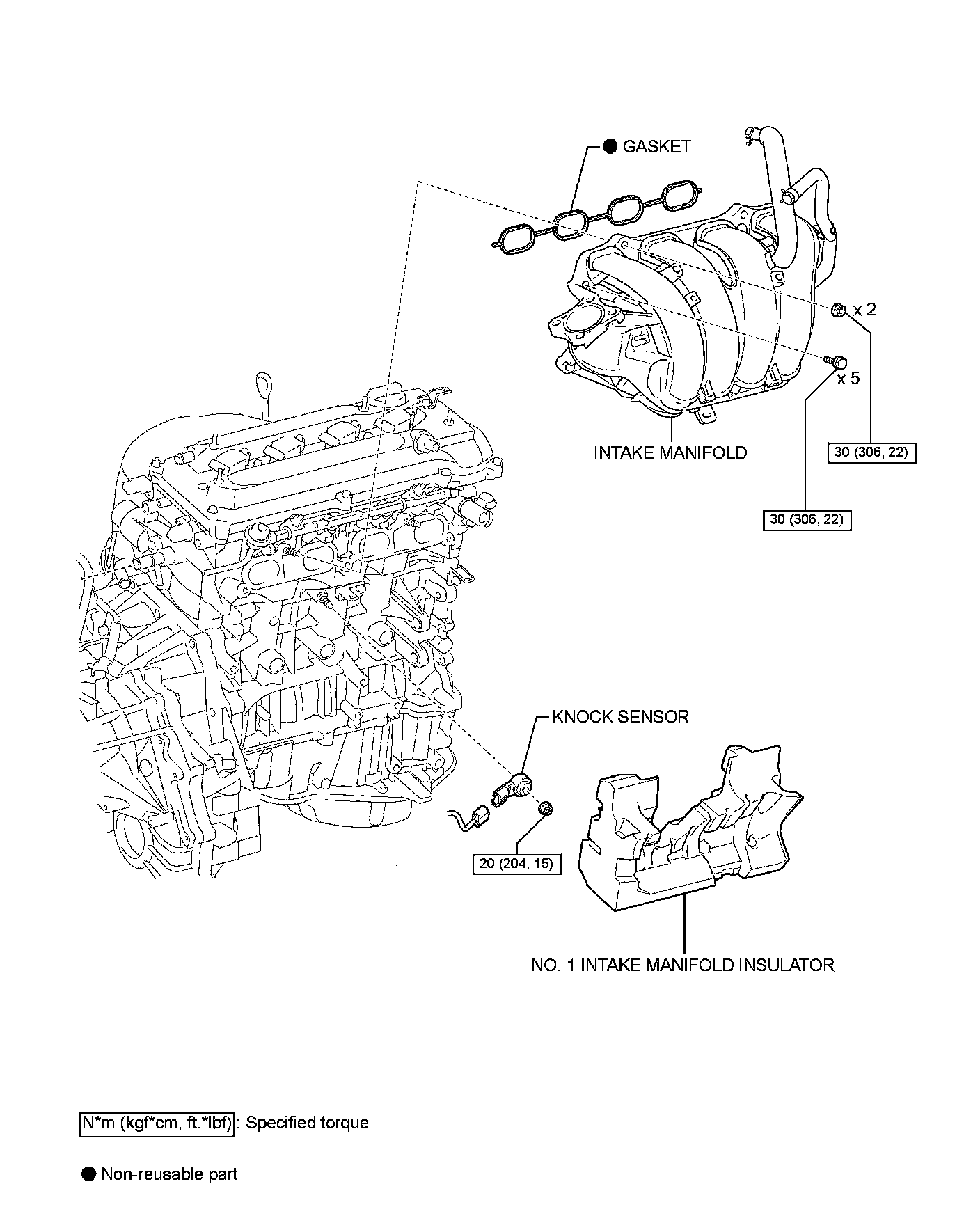

2AZ-FE ENGINE CONTROL:
KNOCK SENSOR
: COMPONENTS
COMPONENTS
ILLUSTRATION
