Powertrain Management: Locations
2AZ-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION
PARTS LOCATION

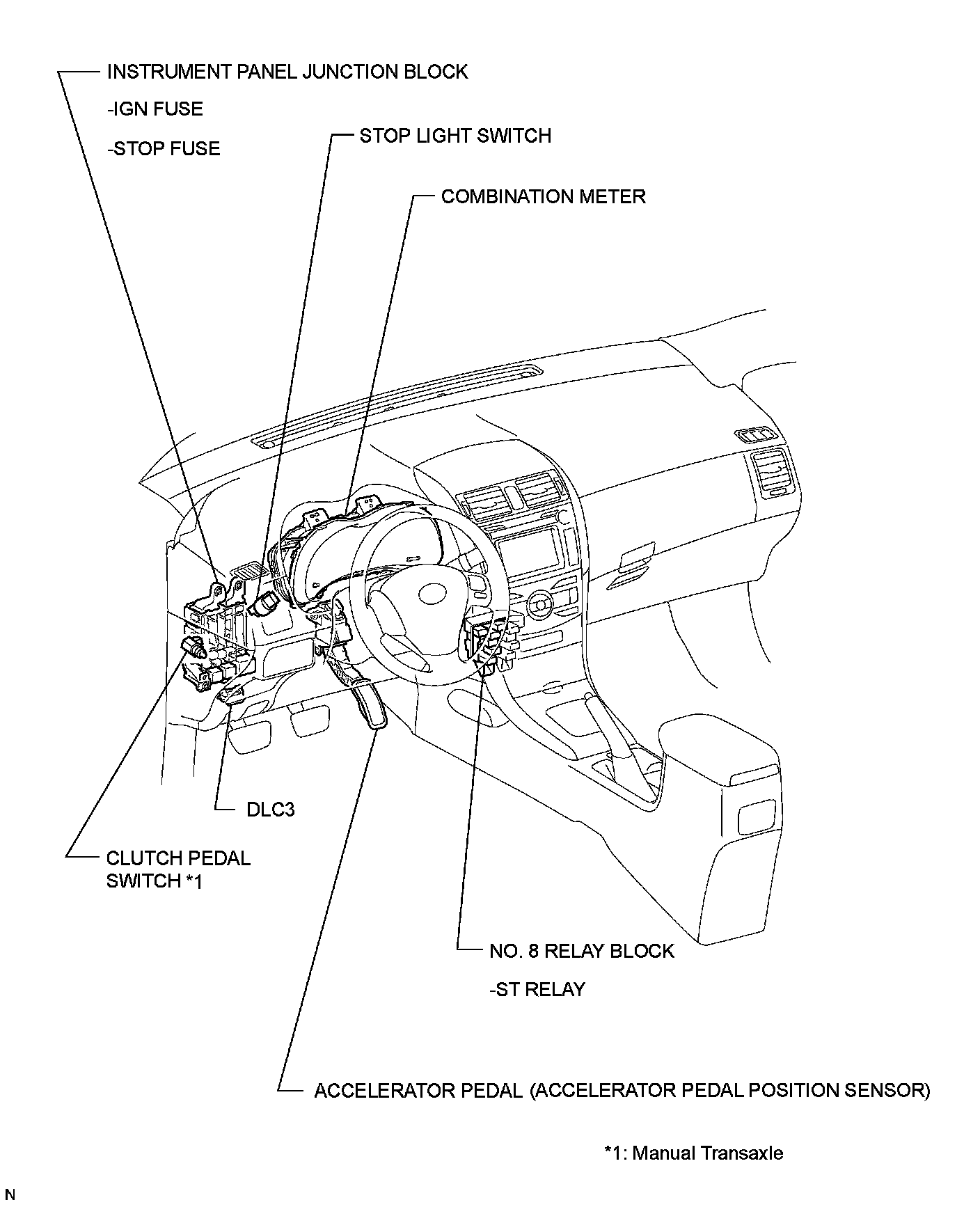

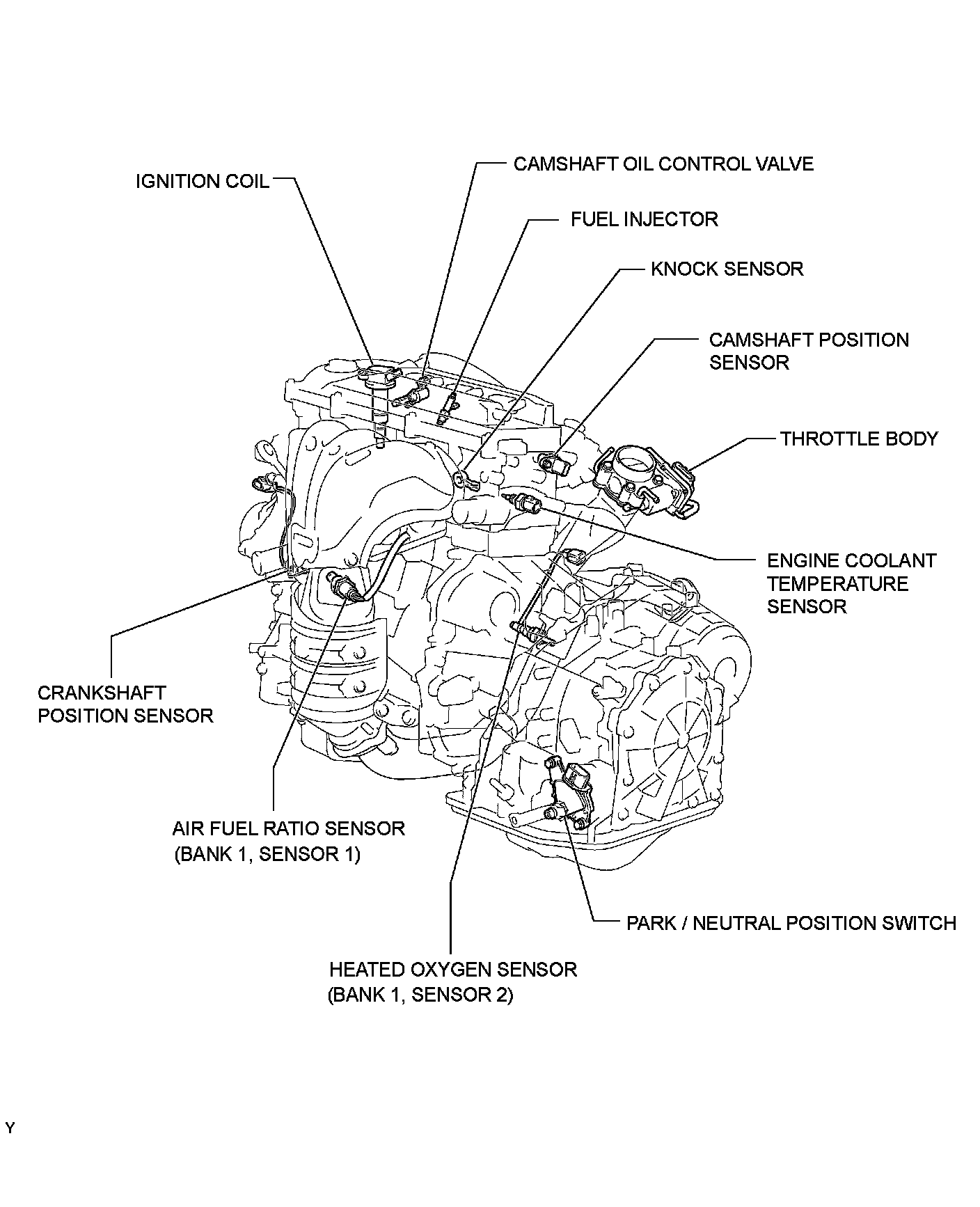

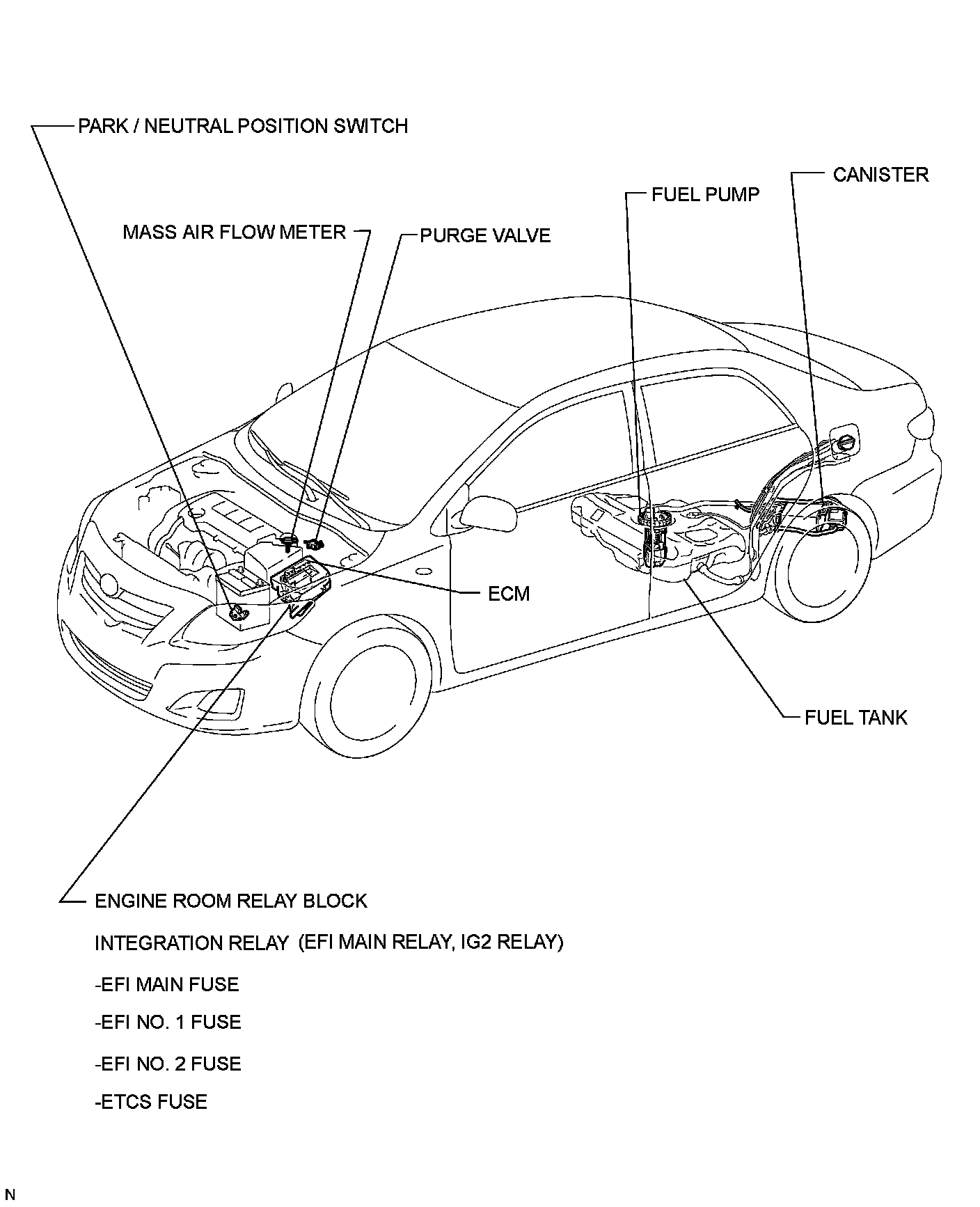

ILLUSTRATION
