Intake Manifold
INTAKE MANIFOLD
Install the intake manifold with the 5 bolts and 2 nuts.
Torque 30 Nm (306 kgf-cm, 22 ft-lbf)
THROTTLE BODY

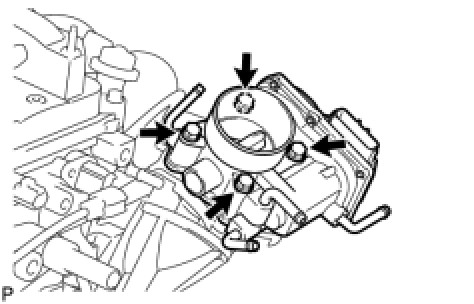

Install the throttle body assembly with the 4 bolts.
Torque 30 Nm (306 kgf-cm, 22 ft-lbf)
Install the intake manifold with the 5 bolts and 2 nuts.
Torque 30 Nm (306 kgf-cm, 22 ft-lbf)
THROTTLE BODY
Install the throttle body assembly with the 4 bolts.
Torque 30 Nm (306 kgf-cm, 22 ft-lbf)
