System Specifications

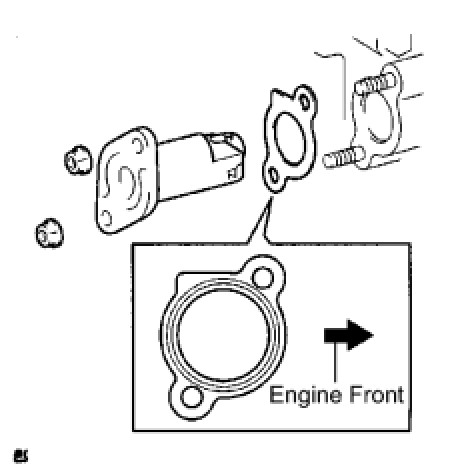

NO. 1 CHAIN TENSIONER ASSEMBLY





Install a new gasket and the chain tensioner with the 2 nuts.
Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)

CRANKSHAFT PULLEY

Torque 180 Nm (1835 kgf-cm, 133 ft-lbf)

TIMING CHAIN COVER

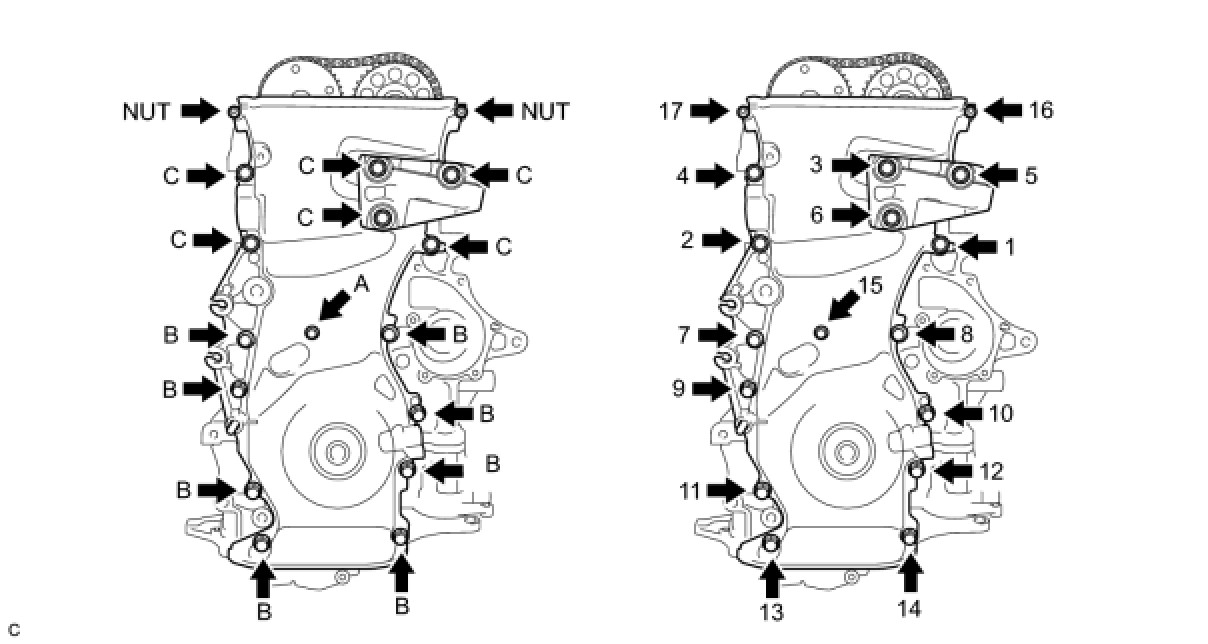

Fully tighten the timing chain cover with the 15 bolts and 2 nuts as shown in the illustration.





Bolt A
Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)
Bolt B
Torque 25 Nm (255 kgf-cm, 18 ft-lbf)
Bolt C
Torque 55 Nm (561 kgf-cm, 41 ft-lbf)
Nut
Torque 11 Nm (112 kgf-cm, 8 ft-lbf)
