Installation

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

INSTALLATION

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Install the park/neutral position switch to the manual valve shaft.
(b) Temporarily install the 2 bolts.





(c) Install a new lock plate and tighten the nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)

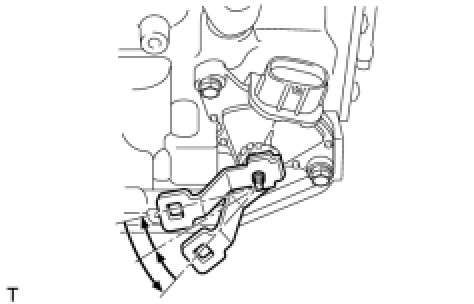

(d) Temporarily install the control shaft lever.





(e) Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
(f) Remove the control shaft lever.

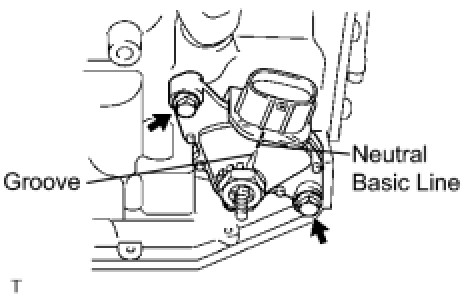

(g) Align the groove with the neutral basic line.
(h) Hold the switch in that position and tighten the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)





(i) Using a screwdriver, stake the nut with the lock plate.





(j) Install the control shaft lever with the washer and nut.
Torque: 13 Nm (130 kgf-cm, 9 ft-lbf)





(k) Connect the park/neutral position switch connector.
2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Connect the transmission control cable to the bracket with a new clip.
(b) Connect the transmission control cable assembly to the control shaft lever with the nut.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
3. INSTALL ENGINE UNDER COVER LH
4. INSPECT SHIFT LEVER POSITION Adjustments
5. ADJUST SHIFT LEVER POSITION Adjustments
6. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY Inspection
