Removal

2AZ-FE STARTING: STARTER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal
3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Removal
4. REMOVE AIR CLEANER CASE Removal
5. REMOVE BATTERY Removal
6. REMOVE BATTERY CARRIER Removal
7. DISCONNECT WIRE HARNESS

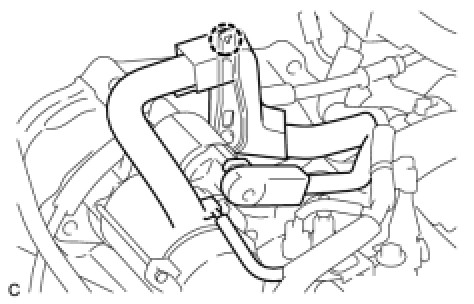

(a) Release the claw, and disconnect the wire harness.
8. REMOVE STARTER ASSEMBLY (for Manual Transaxle)

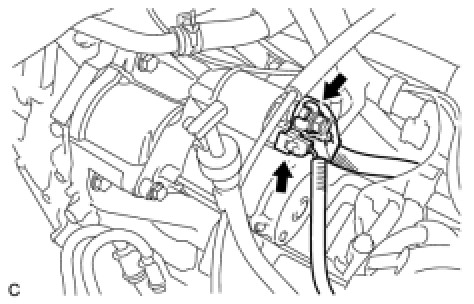

(a) Disconnect the terminal 50 connector from the starter assembly.
(b) Remove the nut and disconnect the wire harness from terminal 30.

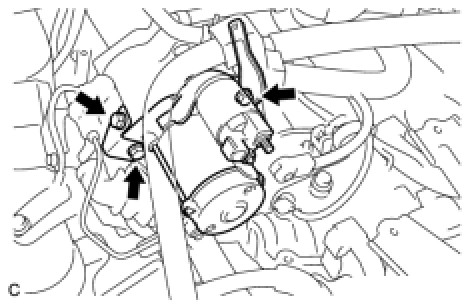

(c) Remove the 3 bolts, clutch accumulator bracket, wire harness clamp bracket and starter assembly.

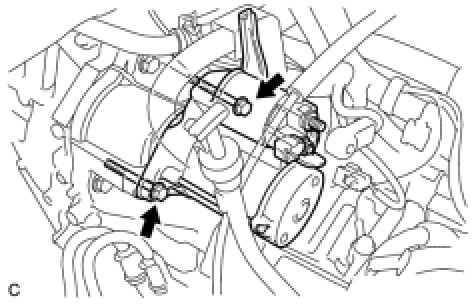

9. REMOVE STARTER ASSEMBLY (for Automatic Transaxle)

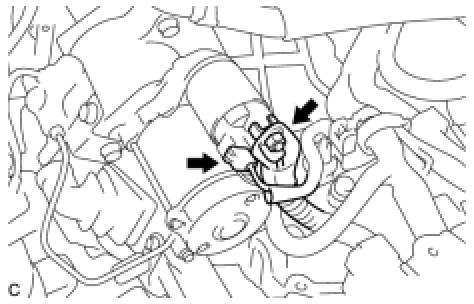

(a) Disconnect the terminal 50 connector from the starter assembly.
(b) Remove the nut and disconnect the wire harness from terminal 30.
