U250E AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL OIL SEAL: REPLACEMENT

REPLACEMENT

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. DRAIN AUTOMATIC TRANSAXLE FLUID Removal
4. REMOVE FRONT DRIVE SHAFT ASSEMBLY
Removal

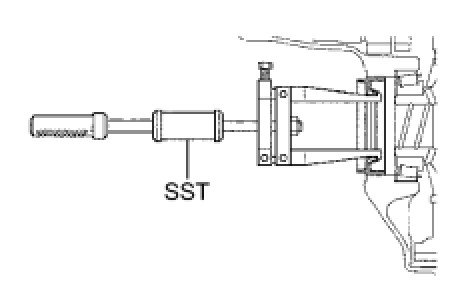

5. REMOVE TRANSAXLE HOUSING OIL SEAL





(a) Using SST, pull out the oil seal.
SST: 09308-00010

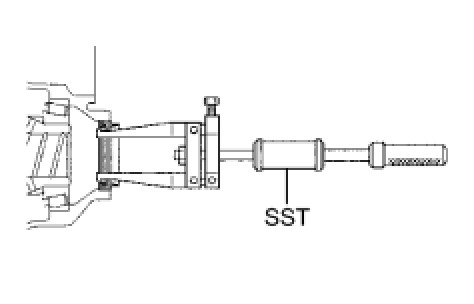

6. REMOVE DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL





(a) Using SST, pull out the oil seal.
SST: 09308-00010

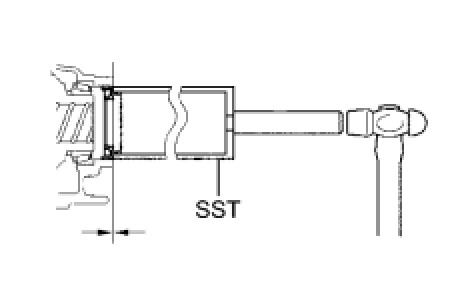

7. INSTALL TRANSAXLE HOUSING OIL SEAL





(a) Using SST and a hammer, install a new oil seal.
SST: 09316-60011
09316-00011
Oil seal installation depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)
(b) Coat the lip of the oil seal with MP grease.

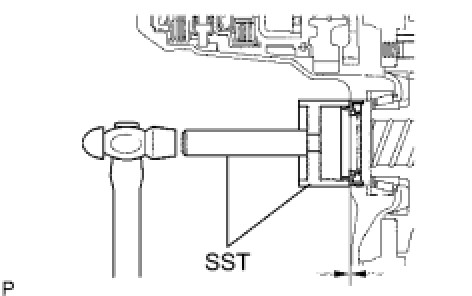

8. INSTALL DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL





(a) Using SST and a hammer, install a new oil seal.
SST: 09649-17010
SST: 09950-70010
09951-07150
Oil seal installation depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)
(b) Coat the lip of the oil seal with MP grease.
9. INSTALL FRONT DRIVE SHAFT ASSEMBLY
Installation
10. ADD AUTOMATIC TRANSAXLE FLUID
11. INSPECT TRANSAXLE FLUID LEVEL Procedures
12. INSTALL ENGINE UNDER COVER LH
13. INSTALL ENGINE UNDER COVER RH
