U250E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: DISASSEMBLY

DISASSEMBLY (Continued)


44. REMOVE FRONT PLANETARY GEAR NUT

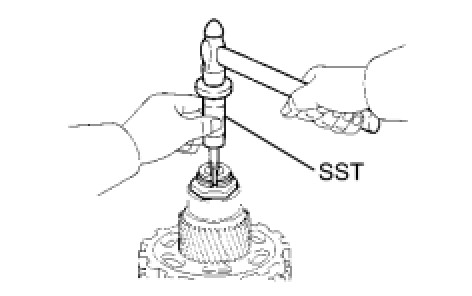

(a) Using SST and a hammer, loosen the staked part of the gear nut.
SST: 09930-00010
09931-00010
09931-00020
SST: 09387-00050
SST: 09495-65040

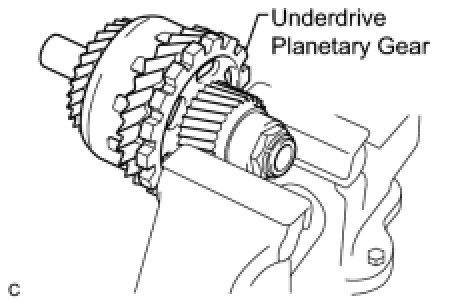

(b) Clamp the underdrive planetary gear in a soft jaw vise.
NOTE: Be careful not to damage the differential drive pinion.





(c) Using a socket wrench, remove the gear nut.
45. REMOVE CYLINDRICAL ROLLER BEARING RACE INNER

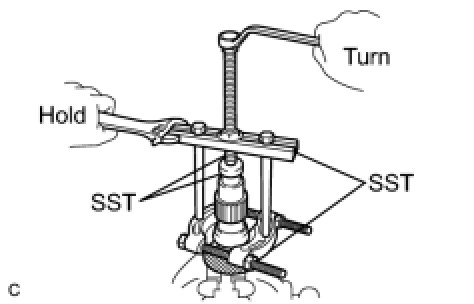

(a) Using SST, remove the cylindrical roller bearing race inner.
SST: 09950-00020
SST: 09950-00030
SST: 09950-40011
09957-04010
SST: 09950-60010
09951-00320
46. REMOVE UNDERDRIVE PLANETARY GEAR ASSEMBLY

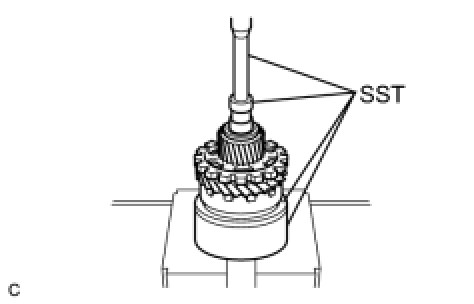

(a) Using SST and a press, remove the differential drive pinion, parking lock gear, counter driven gear with underdrive planetary ring gear, and angular ball bearing.
SST: 09387-00050
SST: 09495-65040
SST: 09950-60010
09951-00320
SST: 09950-70010
09951-07100





(b) Clamp the underdrive planetary gear in a soft jaw vise.
(c) Using SST, remove the rear angular ball bearing from the underdrive planetary gear.
SST: 09950-00020
SST: 09950-00030
SST: 09950-40011
09957-04010
SST: 09950-60010
09951-00320
47. REMOVE UNDERDRIVE PLANETARY RING GEAR

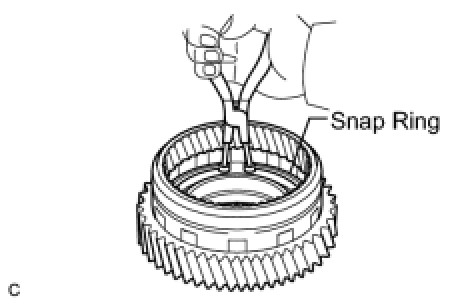

(a) Using snap ring pliers, remove the snap ring

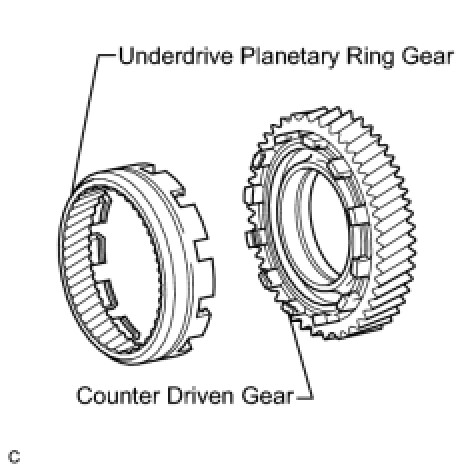

(b) Remove the underdrive planetary ring gear from the counter driven gear.
48. REMOVE PARKING LOCK PAWL

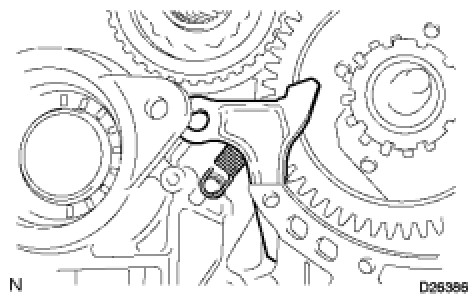

(a) Remove the spring, pawl pin and parking lock pawl.
49. REMOVE UNDERDRIVE CLUTCH ASSEMBLY





(a) Remove the underdrive clutch assembly, thrust bearing, and bearing race from the transaxle case.

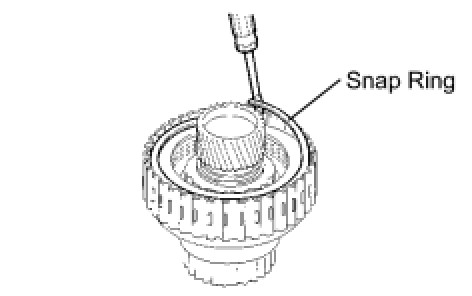

50. REMOVE NO. 2 UNDERDRIVE CLUTCH FLANGE HOLE SNAP RING





(a) Using a screwdriver, remove the No. 2 underdrive clutch flange hole snap ring.
51. REMOVE NO. 1 UNDERDRIVE CLUTCH DISC





(a) Remove the flange, 3 discs, and 3 plates from the underdrive clutch drum.
52. REMOVE UNDERDRIVE CLUTCH RETURN SPRING SUB-ASSEMBLY





(a) Place SST on the clutch balancer and compress the spring with a press.
SST: 09350-32014
09351-32070

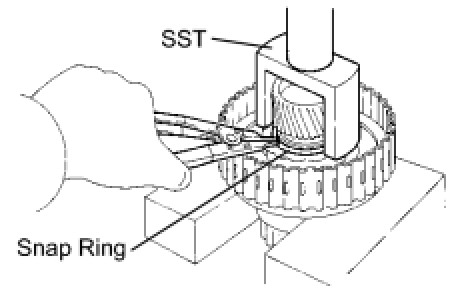

(b) Using a snap ring expander, remove the snap ring.
NOTICE:
- Stop the press when the spring seat is lowered 1 to 2 mm (0.0393 to 0.0787 in.) from the snap ring groove. This prevents the spring seat from being deformed.
- Do not expand the snap ring excessively.

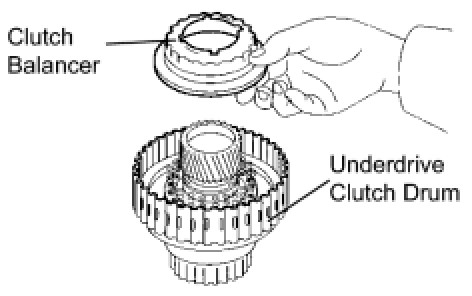

(c) Remove the clutch balancer from the underdrive clutch drum.

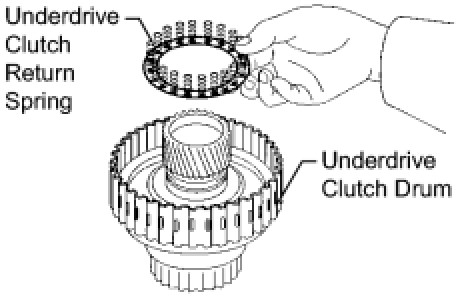

(d) Remove the return spring from the underdrive clutch drum.
53. REMOVE UNDERDRIVE CLUTCH PISTON SET





(a) Remove the underdrive clutch from the transaxle case.
NOTE: Be careful not to damage the oil seal ring.

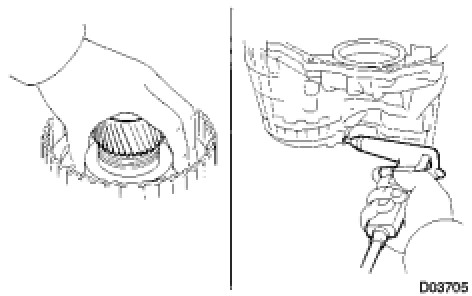

(b) Holding the underdrive clutch piston by hand, apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the transaxle case to remove the underdrive clutch piston.
54. REMOVE UNDERDRIVE CLUTCH DRUM O-RING

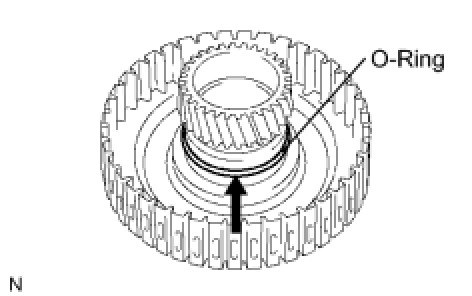

(a) Using a screwdriver, remove the O-ring from the underdrive clutch drum.


(b) Remove the underdrive planetary ring gear from the counter driven gear.
48. REMOVE PARKING LOCK PAWL





(a) Remove the spring, pawl pin and parking lock pawl.
49. REMOVE UNDERDRIVE CLUTCH ASSEMBLY





(a) Remove the underdrive clutch assembly, thrust bearing, and bearing race from the transaxle case.
50. REMOVE NO. 2 UNDERDRIVE CLUTCH FLANGE HOLE SNAP RING





(a) Using a screwdriver, remove the No. 2 underdrive clutch flange hole snap ring.
51. REMOVE NO. 1 UNDERDRIVE CLUTCH DISC





(a) Remove the flange, 3 discs, and 3 plates from the underdrive clutch drum.
52. REMOVE UNDERDRIVE CLUTCH RETURN SPRING SUB-ASSEMBLY





(a) Place SST on the clutch balancer and compress the spring with a press.
SST: 09350-32014
09351-32070
(b) Using a snap ring expander, remove the snap ring.
NOTICE:
- Stop the press when the spring seat is lowered 1 to 2 mm (0.0393 to 0.0787 in.) from the snap ring groove. This prevents the spring seat from being deformed.
- Do not expand the snap ring excessively.





(c) Remove the clutch balancer from the underdrive clutch drum.





(d) Remove the return spring from the underdrive clutch drum.
53. REMOVE UNDERDRIVE CLUTCH PISTON SET





(a) Remove the underdrive clutch from the transaxle case.
NOTE: Be careful not to damage the oil seal ring.

(b) Holding the underdrive clutch piston by hand, apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the transaxle case to remove the underdrive clutch piston.
54. REMOVE UNDERDRIVE CLUTCH DRUM O-RING





(a) Using a screwdriver, remove the O-ring from the underdrive clutch drum.


(b) Remove the underdrive planetary ring gear from the counter driven gear.
48. REMOVE PARKING LOCK PAWL





(a) Remove the spring, pawl pin and parking lock pawl.
49. REMOVE UNDERDRIVE CLUTCH ASSEMBLY





(a) Remove the underdrive clutch assembly, thrust bearing, and bearing race from the transaxle case.
50. REMOVE NO. 2 UNDERDRIVE CLUTCH FLANGE HOLE SNAP RING





(a) Using a screwdriver, remove the No. 2 underdrive clutch flange hole snap ring.
51. REMOVE NO. 1 UNDERDRIVE CLUTCH DISC





(a) Remove the flange, 3 discs, and 3 plates from the underdrive clutch drum.
52. REMOVE UNDERDRIVE CLUTCH RETURN SPRING SUB-ASSEMBLY





(a) Place SST on the clutch balancer and compress the spring with a press.
SST: 09350-32014
09351-32070
(b) Using a snap ring expander, remove the snap ring.
NOTICE:
- Stop the press when the spring seat is lowered 1 to 2 mm (0.0393 to 0.0787 in.) from the snap ring groove. This prevents the spring seat from being deformed.
- Do not expand the snap ring excessively.





(c) Remove the clutch balancer from the underdrive clutch drum.





(d) Remove the return spring from the underdrive clutch drum.
53. REMOVE UNDERDRIVE CLUTCH PISTON SET





(a) Remove the underdrive clutch from the transaxle case.
NOTE: Be careful not to damage the oil seal ring.

(b) Holding the underdrive clutch piston by hand, apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the transaxle case to remove the underdrive clutch piston.
54. REMOVE UNDERDRIVE CLUTCH DRUM O-RING





(a) Using a screwdriver, remove the O-ring from the underdrive clutch drum.
