Inspection

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: INSPECTION

INSPECTION

1. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY

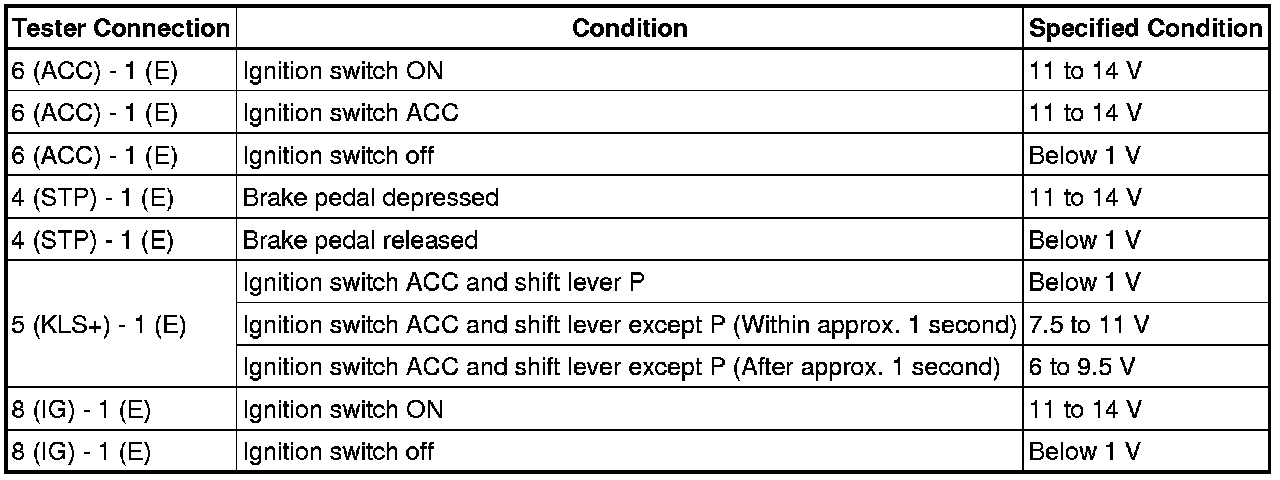

(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:





NOTE: Do not disconnect the shift lock control unit assembly connector.





(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





NOTE: Do not disconnect the shift lock control unit assembly connector.
If the result is not as specified, replace the shift lock control ECU sub-assembly.

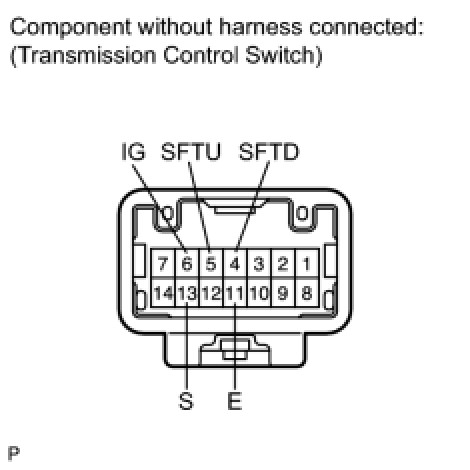

2. INSPECT TRANSMISSION CONTROL SWITCH
(a) Disconnect the transmission control switch connector of the shift lock control unit assembly.

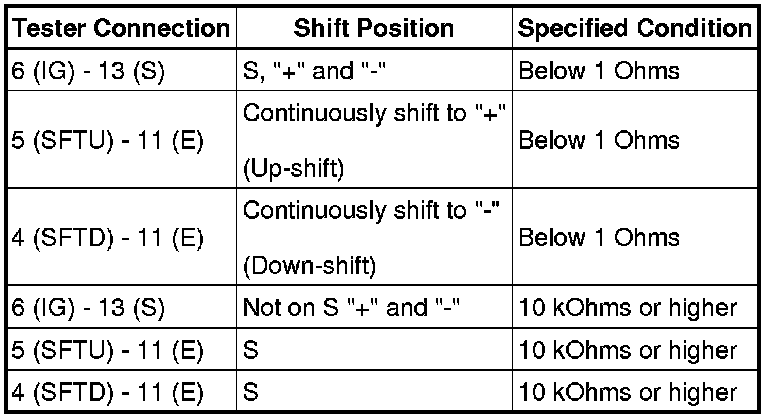

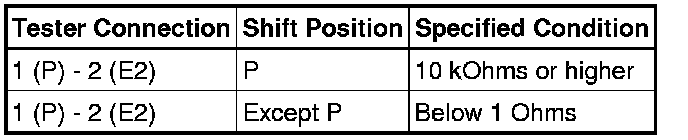

(b) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard Resistance:





If the result is not as specified, replace the shift lock control unit assembly.
3. INSPECT SHIFT LOCK SOLENOID
(a) Disconnect the shift lock solenoid connector.





(b) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard Resistance:





If the result is not as specified, replace the shift lock control unit assembly.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the shift lock control unit assembly.
