Wiring Harness: Testing and Inspection

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: TRANSMISSION WIRE: INSPECTION

INSPECTION

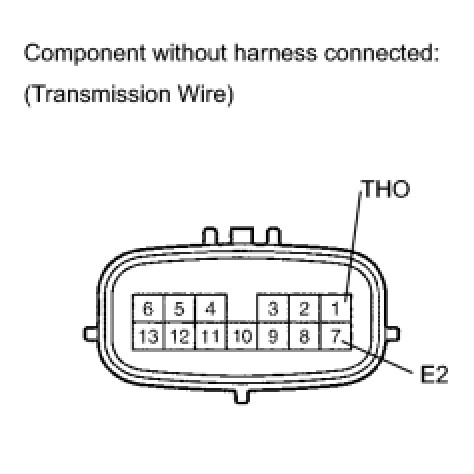

1. INSPECT TRANSMISSION WIRE

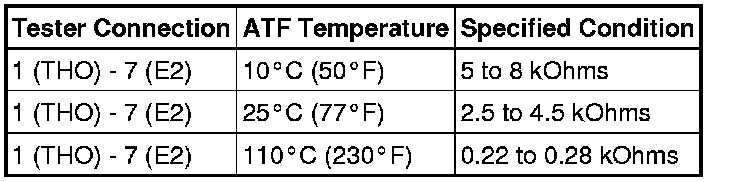

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





HINT: If the resistance is out of the specified range with the ATF temperature shown in the table above, the driveability of the vehicle may decrease.
If the resistance value is not as specified, replace the transmission wire.
