CLUTCH: CLUTCH UNIT (for E351): REMOVAL

REMOVAL

1. REMOVE MANUAL TRANSAXLE ASSEMBLY
Removal.
2. REMOVE CLUTCH RELEASE FORK SUB-ASSEMBLY





(a) Remove the clutch release fork with the clutch release bearing from the transaxle assembly.
3. REMOVE CLUTCH RELEASE BEARING ASSEMBLY
(a) Remove the release bearing hub clip and clutch release bearing assembly from the clutch release fork.
4. REMOVE RELEASE FORK SUPPORT





(a) Remove the release fork support from the manual transaxle assembly.
5. REMOVE CLUTCH RELEASE FORK BOOT
6. REMOVE CLUTCH COVER ASSEMBLY

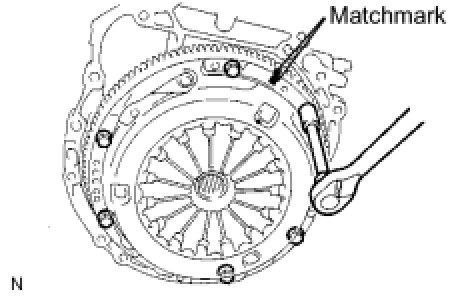

(a) Put matchmarks on the clutch cover assembly and flywheel sub-assembly.
(b) Loosen the 6 bolts one turn at a time until spring tension is released.
(c) Remove the 6 bolts and pull off the clutch cover assembly.
NOTE: Do not drop the clutch disc assembly.

7. REMOVE CLUTCH DISC ASSEMBLY
NOTE: Keep the parts clutch disc lining, the pressure plate and surface of the flywheel sub-assembly free of oil and foreign matter.
